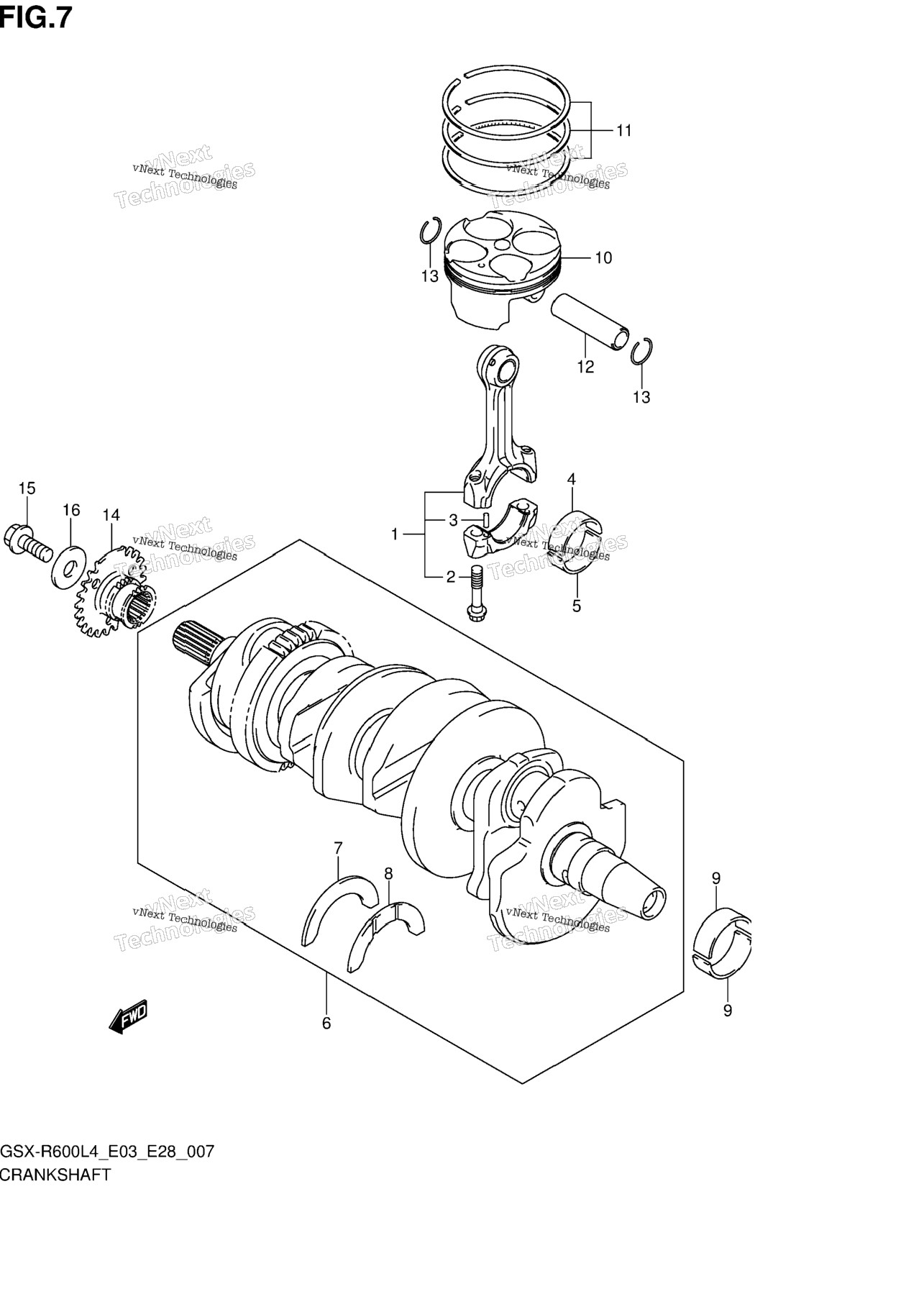

| 1 | 12160-14J10 | CONNROD ASSY | 4 шт. | — | |
|
| 2 | 12163-35F00 | BOLT | 8 шт. | — | |
|
| 3 | 04221-04089 | .PIN | 8 шт. | — | |
|
| 4 | 12164-14J00-0B0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 4 | 12164-14J00-0D0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 4 | 12164-14J00-0A0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 4 | 12164-14J00-0C0 | BEARING,CRANK PIN | 4 шт. | — | |
|
| 5 | 12164-29G00-0B0 | BEARING, LOWER (BLACK) | 4 шт. | — | |
|
| 5 | 12164-29G00-0C0 | BEARING, LOWER (BROWN) | 4 шт. | — | |
|
| 5 | 12164-29G00-0A0 | BEARING, LOWER (GREEN) | 4 шт. | — | |
|
| 5 | 12164-29G00-0D0 | BEARING, LOWER (YELLOW) | 4 шт. | — | |
|
| 6 | 12000-01820 | CRANKSHAFT SET | 1 шт. | — | |
|
| 8 | 12228-17E00-0B0 | BEARING, THRUST LH (BLACK) | 1 шт. | — | |
|
| 8 | 12228-17E00-0C0 | BEARING, THRUST LH (BLUE) | 1 шт. | — | |
|
| 8 | 12228-17E00-0D0 | BEARING, THRUST LH (GREEN) | 1 шт. | — | |
|
| 8 | 12228-17E00-0A0 | BEARING, THRUST LH (RED) | 1 шт. | — | |
|
| 8 | 12228-17E00-0F0 | BEARING, THRUST LH (WHITE) | 1 шт. | — | |
|
| 8 | 12228-17E00-0E0 | BEARING, THRUST LH (YELLOW) | 1 шт. | — | |
|
| 8 | 12228-17E00-0D0 | BEARING, THRUST RH (GREEN) | 1 шт. | — | |
|
| 9 | 12229-01H00-0A0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 9 | 12229-01H00-0B0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 9 | 12229-01H00-0C0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 9 | 12229-01H00-0D0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 9 | 12229-01H00-0E0 | BEARING,CRANKSHAFT | 10 шт. | — | |
|
| 10 | 12111-14J00-0F0 | PISTON | 4 шт. | — | |
|
| 11 | 12140-29G20 | RING SET,PISTON | 4 шт. | — | |
|
| 12 | 12151-14J00 | PIN,PISTON | 4 шт. | — | |
|
| 13 | 09381-14001 | RING,SNAP | 8 шт. | — | |
|
| 14 | 12731-01H00 | SPROCKET, CAM CHAIN (NT:17) | 1 шт. | — | |
|
| 15 | 09103-10189 | BOLT (10X23) | 1 шт. | — | |
|
| 16 | 08211-10285 | WASHER | 1 шт. | — | |
|
