Fuel Tank (Gsx-R600l4 E28)

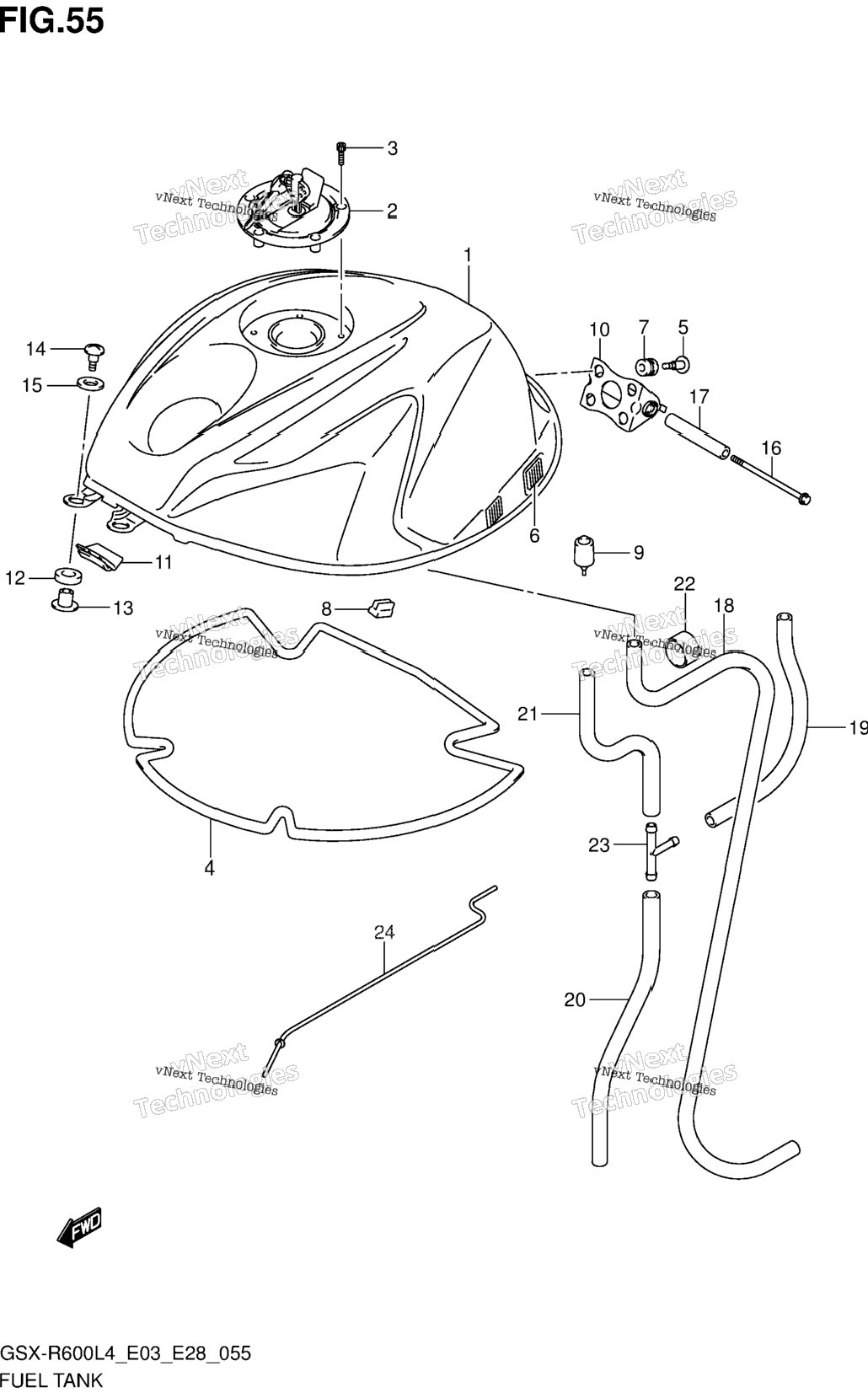

Схема Fuel Tank (Gsx-R600l4 E28)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44100-14J32-YVB | TANK ASSY, FUEL (BLACK) FOR AR5 | 1 шт. | — | |
| 1 | 44100-14J32-YSF | TANK ASSY,FUEL (BLUE) FOR AGQ | 1 шт. | — | |
| 2 | 44200-16850 | CAP SET, FUEL TANK | 1 шт. | — | |
| 3 | 09106-05017 | BOLT (5X20) | 3 шт. | — | |
| 4 | 44191-14J00 | SHIELD,FUEL TANK HEAT | 1 шт. | — | |
| 5 | 44543-14J00 | SCREW | 4 шт. | — | |
| 6 | 44572-13G00 | .FASTENER (33X25X2.6) | 4 шт. | — | |
| 7 | 09320-08071 | CUSHION | 4 шт. | — | |
| 8 | 44276-21H00 | CUSHION, TANK COVER | 2 шт. | — | |
| 9 | 44542-41G00 | CUSHION, REAR | 2 шт. | — | |
| 10 | 44530-41G00 | BRACKET, REAR | 1 шт. | — | |
| 11 | 44546-44H00 | RUBBER, TANK FRONT | 1 шт. | — | |
| 12 | 44511-16G00 | CUSHION | 2 шт. | — | |
| 13 | 44512-16G00 | SPACER,FUEL TANK,FR | 2 шт. | — | |
| 14 | 09139-06192 | SCREW (6X25) | 2 шт. | — | |
| 15 | 09160-06012 | WASHER (6.5X22X1.6) | 2 шт. | — | |
| 16 | 09106-06119 | BOLT (6X110) | 1 шт. | — | |
| 17 | 44561-18G00 | SPACER, TANK REAR | 1 шт. | — | |
| 18 | 44423-14J00 | HOSE, DRAIN | 1 шт. | — | |
| 19 | 44424-14J00 | HOSE, BREATHER NO.1 | 1 шт. | — | |
| 20 | 44424-14J10 | HOSE, BREATHER NO.2 | 1 шт. | — | |
| 21 | 44425-09E00 | HOSE, BREATHER NO.3 CUT AS REQUIRED | 1 шт. | — | |
| 22 | 09352-12163-600 | HOSE (12X16X600) L:600->10 | 0 шт. | — | |
| 23 | 09367-06007 | 3 WAY | 1 шт. | — | |
| 24 | 44574-35F00 | STAY, FUEL TANK OPT | 1 шт. | — | |
