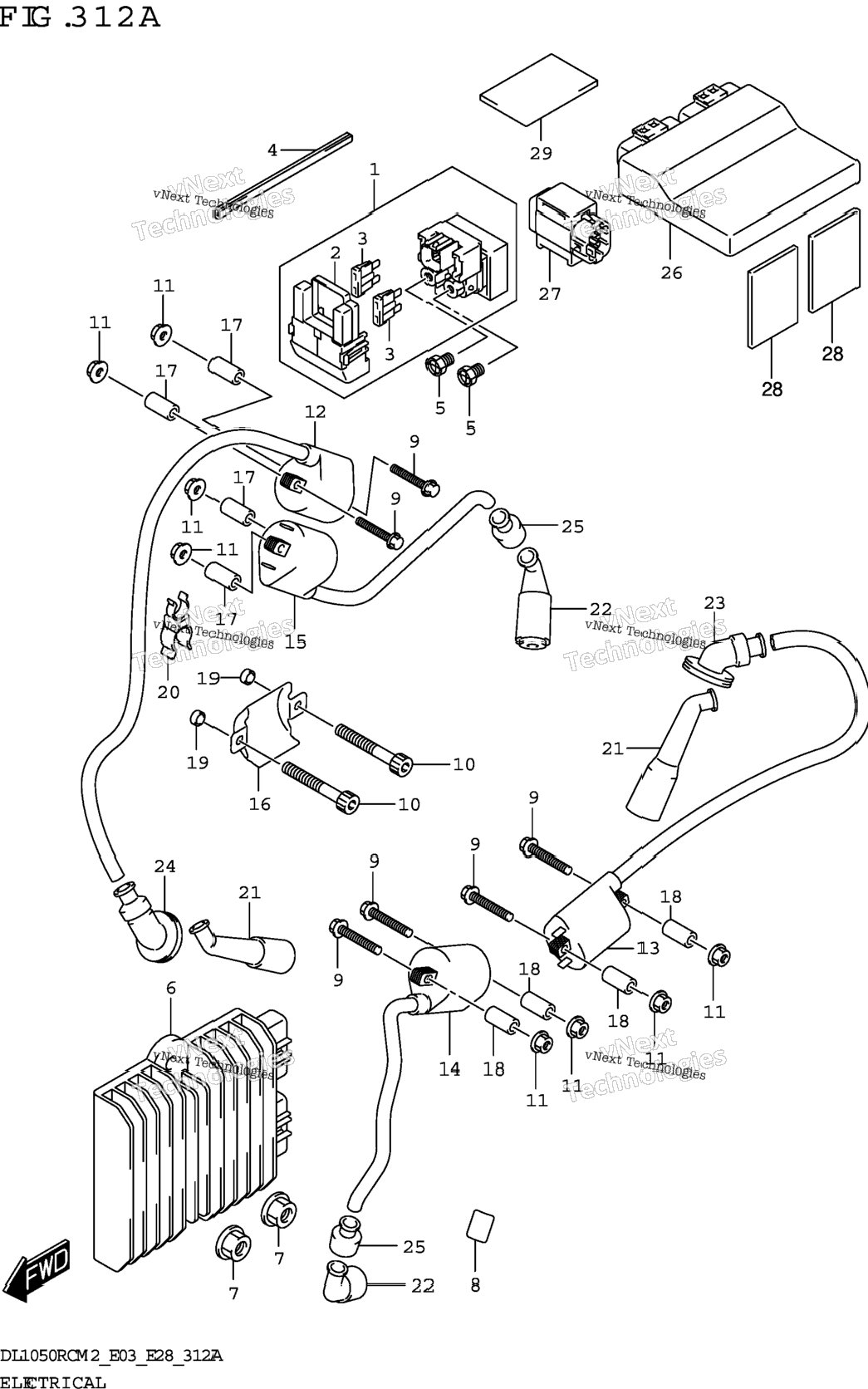

| 1 | 31800-06G02 | RELAY ASSY,STARTING MOTOR | 1 шт. | — | |
|
| 2 | 31861-47E00 | .COVER | 1 шт. | — | |
|
| 3 | 09481-30101 | .FUSE (30A) | 2 шт. | — | |
|
| 4 | 44552-24B00 | MOLDING,FUEL TANK (L:110) | 1 шт. | — | |
|
| 5 | 09128-06013 | SCREW (6X8) | 2 шт. | — | |
|
| 6 | 32800-31J00 | RECTIFIER ASSY | 1 шт. | — | |
|
| 7 | 08319-3106A | NUT | 2 шт. | — | |
|
| 8 | 45517-16G20 | TAPE,FUEL TANK (30X40X0.2) | 1 шт. | — | |
|
| 9 | 09106-06088 | BOLT (6X35) | 6 шт. | — | |
|
| 10 | 09106-06120 | BOLT (6X40) | 0 шт. | — | |
|
| 11 | 09159-06096 | NUT | 8 шт. | — | |
|
| 12 | 33410-06G01 | COIL ASSY,IGNITION | 1 шт. | — | |
|
| 13 | 33410-06L00 | COIL ASSY,IGNITION REAR | 1 шт. | — | |
|
| 14 | 33410-20H01 | COIL ASSY,IGNITION | 1 шт. | — | |
|
| 15 | 33410-26G01 | COIL ASSY,IGNITION | 1 шт. | — | |
|
| 16 | 13412-06L00 | SHIELD,IGNITION COIL | 1 шт. | — | |
|
| 17 | 09180-06195 | SPACER (6.4X10X18) | 4 шт. | — | |
|
| 18 | 09180-06198 | SPACER (6.2X12X16) | 4 шт. | — | |
|
| 19 | 09180-06255 | SPACER (6.5X9X3.8) | 2 шт. | — | |
|
| 20 | 09408-00235 | CLAMP | 1 шт. | — | |
|
| 21 | 33510-31G00 | CAP ASSY, SPARK PLUG | 2 шт. | — | |
|
| 22 | 33510-31G10 | CAP ASSY, SPARK PLUG | 2 шт. | — | |
|
| 23 | 33542-06G00 | SEAL,HT CORD RR | 1 шт. | — | |
|
| 24 | 33542-06G10 | SEAL,HT CORD FR | 1 шт. | — | |
|
| 25 | 33542-38B00 | SEAL,HIGH TENSION CORD (SIDE) | 2 шт. | — | |
|
| 26 | 32910-06L00 | ECM,BLANK | 1 шт. | — | |
|
| 27 | 33960-25H00 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 28 | 33651-37000 | PROTECTOR (170X95X3.0) | 2 шт. | — | |
|
| 29 | 33652-36000 | CUSHION (30X50X3) | 1 шт. | — | |
|
