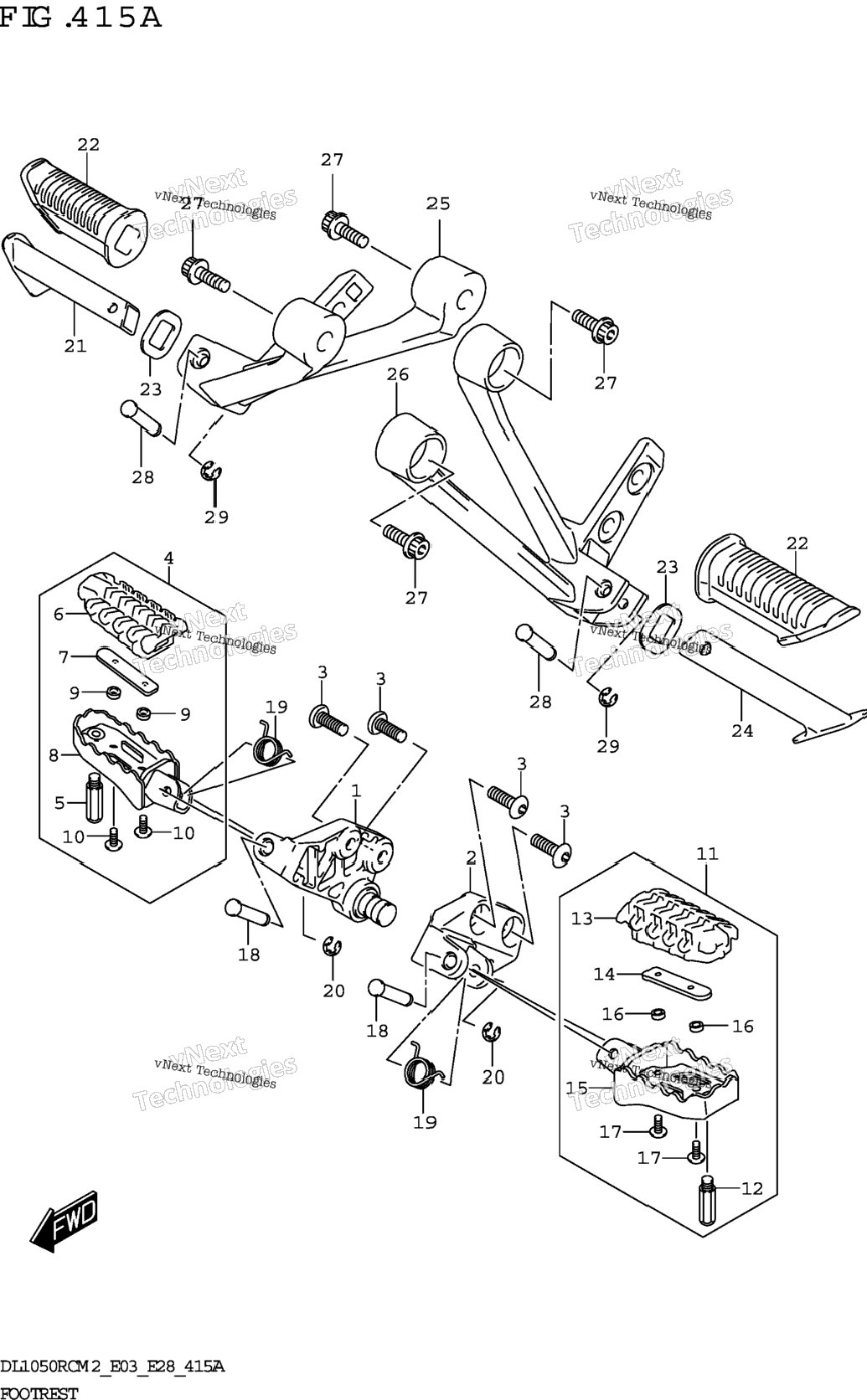

| 1 | 43510-06G10-YAP | BRACKET,FR FOOTREST RH (BLACK | 1 шт. | — | |
|
| 2 | 43521-06G10-YAP | BRACKET,FR FOOTREST LH (BLACK | 1 шт. | — | |
|
| 3 | 09106-08200 | BOLT (8X23) | 4 шт. | — | |
|
| 4 | 43501-06L00 | FOOTREST ASSY,FRONT RH | 1 шт. | — | |
|
| 8 | 43530-06L00 | .BAR,FRONT FOOTREST RH | 1 шт. | — | |
|
| 11 | 43502-06L00 | FOOTREST ASSY,FRONT LH | 1 шт. | — | |
|
| 12 | 43576-48B40 | BOLT,BANK SENSOR | 1 шт. | — | |
|
| 12 | 43576-48B40 | BOLT,BANK SENSOR | 1 шт. | — | |
|
| 13 | 43551-06L00 | .RUBBER,FR FOOTREST | 1 шт. | — | |
|
| 13 | 43551-06L00 | .RUBBER,FR FOOTREST | 1 шт. | — | |
|
| 14 | 43552-06L00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 14 | 43552-06L00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 15 | 43540-06L00 | .BAR,FRONT FOOTREST LH | 1 шт. | — | |
|
| 16 | 47512-28K00 | .SPACER,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 16 | 47512-28K00 | .SPACER,FR FOOTREST RUBBER | 2 шт. | — | |
|
| 17 | 07120-0512A | .BOLT | 2 шт. | — | |
|
| 17 | 07120-0512A | .BOLT | 2 шт. | — | |
|
| 18 | 09208-08023 | PIN,FRONT FOOTREST | 2 шт. | — | |
|
| 19 | 09448-18037 | SPRING,FRONT FOOTREST | 2 шт. | — | |
|
| 20 | 08332-1106B | E RING | 2 шт. | — | |
|
| 21 | 43610-34A60 | BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 22 | 43612-33G30 | RUBBER, PILLION FOOTREST | 2 шт. | — | |
|
| 23 | 43631-34A01 | WASHER,FOOTREST RUBBER | 2 шт. | — | |
|
| 24 | 43710-34A60 | BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 25 | 43811-31J00-YAP | BRKT,PILLION FOOTREST RH (BLA K) | 1 шт. | — | |
|
| 26 | 43821-31J00-YAP | BRKT,PILLION FOOTREST LH (BLA K) | 1 шт. | — | |
|
| 27 | 09106-08131 | BOLT (8X30) | 4 шт. | — | |
|
| 28 | 09208-06010 | PIN,PILLION FOOTREST | 2 шт. | — | |
|
| 29 | 08332-1104B | E RING | 2 шт. | — | |
|
