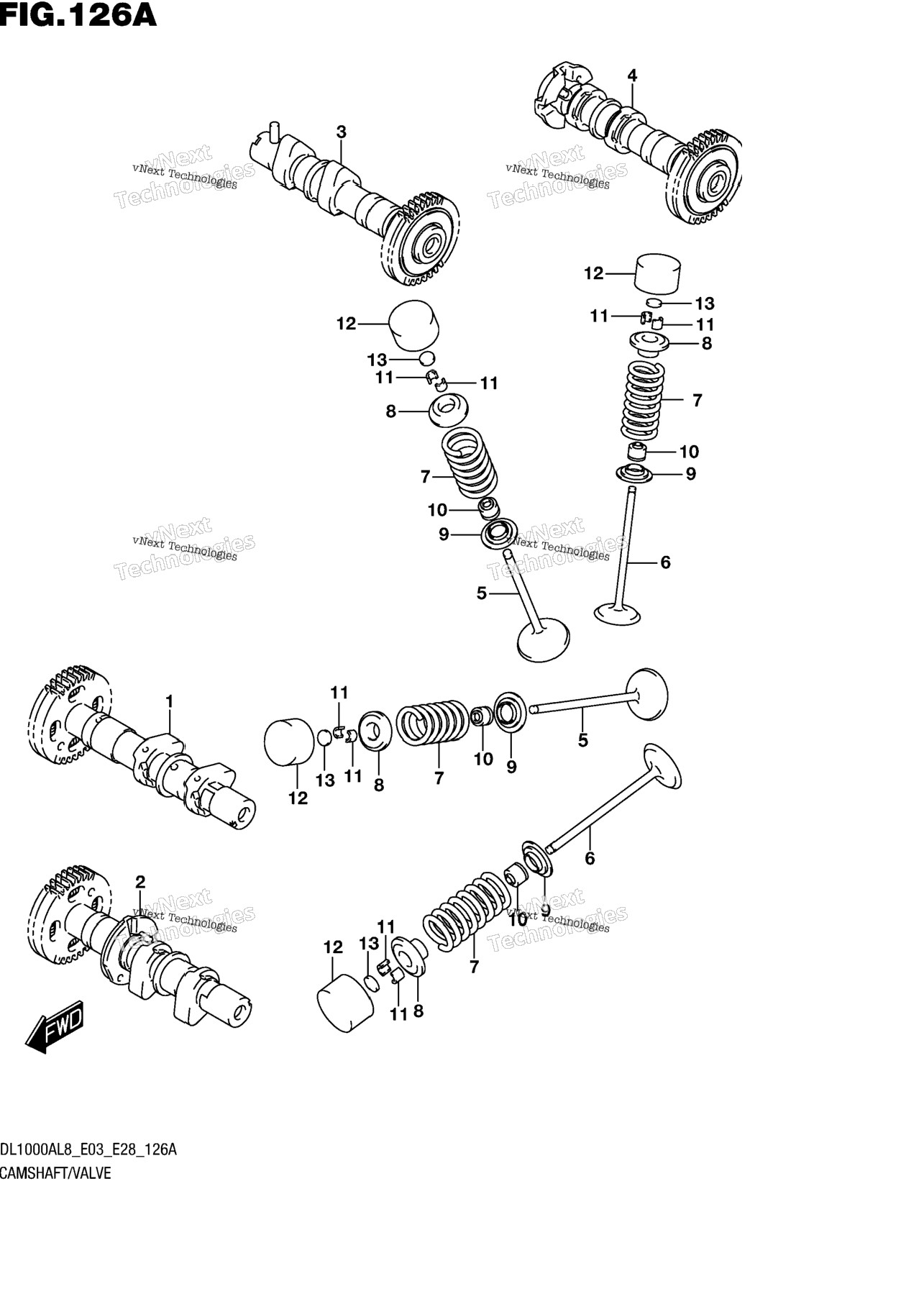

| 1 | 12701-06G00 | CAMSHAFT ASSY, INTAKE FRONT | 1 шт. | — | |
|
| 2 | 12702-06G00 | CAMSHAFT ASSY, EXHAUST FRONT | 1 шт. | — | |
|
| 3 | 12703-06G00 | CAMSHAFT ASSY, INTAKE REAR | 1 шт. | — | |
|
| 4 | 12704-06G00 | CAMSHAFT ASSY, EXHAUST REAR | 1 шт. | — | |
|
| 5 | 12911-16G00 | VALVE,INTAKE | 4 шт. | — | |
|
| 6 | 12912-02F10 | VALVE, EXHAUST | 0 шт. | — | |
|
| 7 | 12921-06G00 | SPRING VALVE | 0 шт. | — | |
|
| 8 | 12931-06G00 | RETAINER,VALVE SPRING | 8 шт. | — | |
|
| 9 | 12933-06G00 | SEAT,VALVE SPRING | 8 шт. | — | |
|
| 10 | 09289-05015 | OIL SEAL (5.5X11X8.2) | 8 шт. | — | |
|
| 11 | 12932-24400 | COTTER,VALVE | 16 шт. | — | |
|
| 12 | 12891-02F00 | TAPPET | 8 шт. | — | |
|
| 13-1 | 12892-41C00-230 | SHIM, TAPPET (T:2.30) | 8 шт. | — | |
|
| 13-10 | 12892-41C00-275 | SHIM, TAPPET (T:2.75) | 8 шт. | — | |
|
| 13-11 | 12892-41C00-280 | SHIM, TAPPET (T:2.80) | 8 шт. | — | |
|
| 13-12 | 12892-41C00-285 | SHIM, TAPPET (T:2.85) | 8 шт. | — | |
|
| 13-13 | 12892-41C00-290 | SHIM, TAPPET (T:2.90) | 8 шт. | — | |
|
| 13-14 | 12892-41C00-295 | SHIM, TAPPET (T:2.95) | 8 шт. | — | |
|
| 13-15 | 12892-41C00-300 | SHIM, TAPPET (T:3.00) | 8 шт. | — | |
|
| 13-16 | 12892-41C00-305 | SHIM, TAPPET (T:3.05) | 8 шт. | — | |
|
| 13-17 | 12892-41C00-310 | SHIM, TAPPET (T:3.10) | 8 шт. | — | |
|
| 13-18 | 12892-41C00-315 | SHIM, TAPPET (T:3.15) | 8 шт. | — | |
|
| 13-19 | 12892-41C00-320 | SHIM, TAPPET (T:3.20) | 8 шт. | — | |
|
| 13-2 | 12892-41C00-235 | SHIM, TAPPET (T:2.35) | 8 шт. | — | |
|
| 13-20 | 12892-41C00-325 | SHIM, TAPPET (T:3.25) | 8 шт. | — | |
|
| 13-21 | 12892-41C00-330 | SHIM, TAPPET (T:3.30) | 8 шт. | — | |
|
| 13-22 | 12892-41C00-335 | SHIM, TAPPET (T:3.35) | 8 шт. | — | |
|
| 13-23 | 12892-41C00-340 | SHIM, TAPPET (T:3.40) | 8 шт. | — | |
|
| 13-24 | 12892-41C00-345 | SHIM, TAPPET (T:3.45) | 0 шт. | — | |
|
| 13-25 | 12892-41C00-350 | SHIM, TAPPET (T:3.50) | 8 шт. | — | |
|
| 13-3 | 12892-41C00-240 | SHIM, TAPPET (T:2.40) | 8 шт. | — | |
|
| 13-4 | 12892-41C00-245 | SHIM, TAPPET (T:2.45) | 8 шт. | — | |
|
| 13-5 | 12892-41C00-250 | SHIM, TAPPET (T:2.50) | 8 шт. | — | |
|
| 13-6 | 12892-41C00-255 | SHIM, TAPPET (T:2.55) | 8 шт. | — | |
|
| 13-7 | 12892-41C00-260 | SHIM, TAPPET (T:2.60) | 8 шт. | — | |
|
| 13-8 | 12892-41C00-265 | SHIM, TAPPET (T:2.65) | 8 шт. | — | |
|
| 13-9 | 12892-41C00-270 | SHIM, TAPPET (T:2.70) | 8 шт. | — | |
|
| 14 | 12800-41810 | (5PCS.EACH) & CASE | 0 шт. | — | |
|
| 14 | 12800-41810 | SHIM SET, TAPPET OPT | 1 шт. | — | |
|
| 14 | 12800-41810 | T:2.50, 2.55...3.45, 3.50 NOT ILLUSTRATED | 0 шт. | — | |
|
| 15 | 99000-69471 | .CASE,TAPPET SHIM NOT ILLUSTRATED | 0 шт. | — | |
|
| 15 | 99000-69471 | .CASE, TAPPET SHIM OPT | 1 шт. | — | |
|
