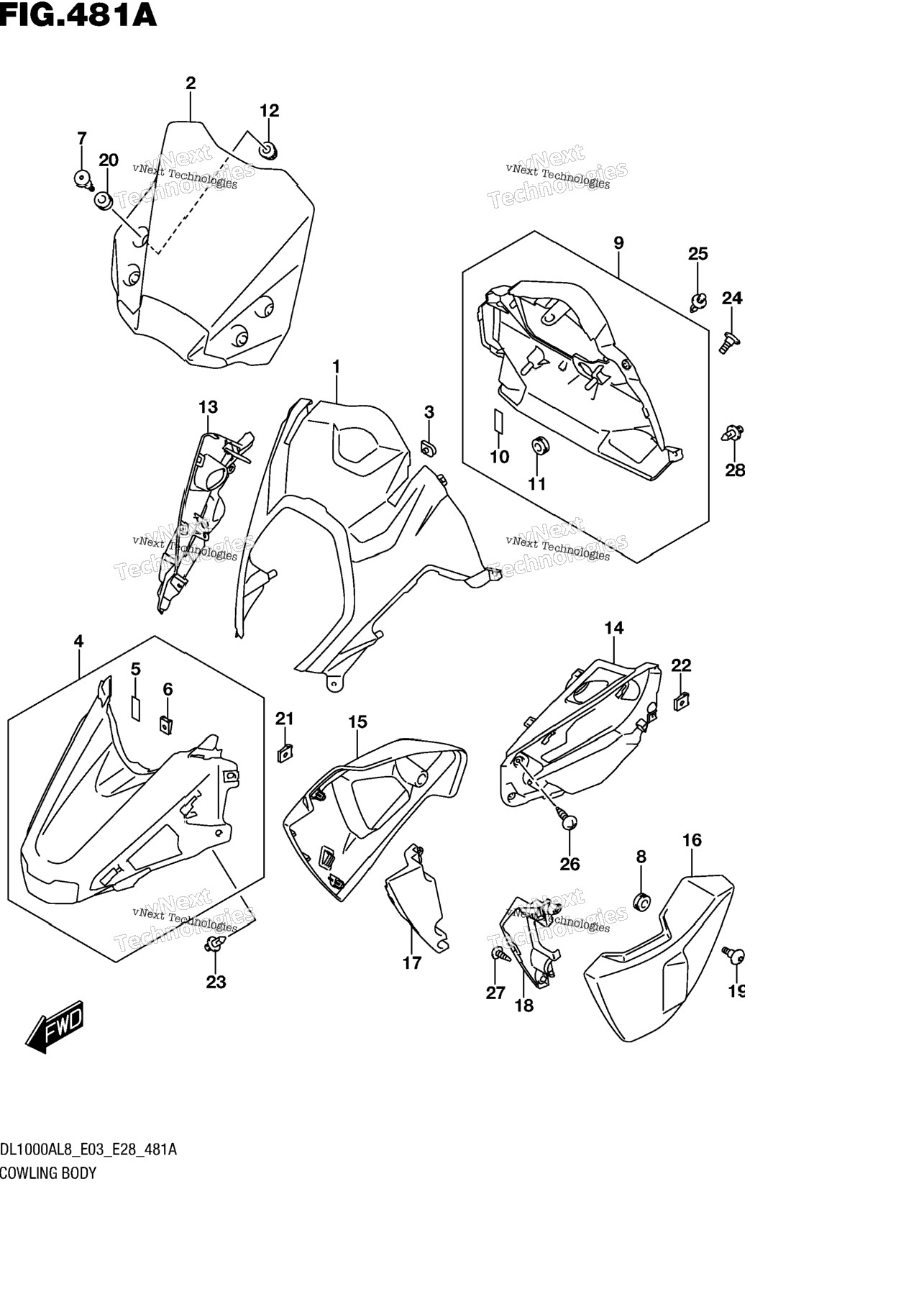

| 1 | 94411-31J10-YKV | COWLING, BODY (BLACK) | 1 шт. | — | |
|
| 2 | 48410-31JB0 | WINDSCREEN (BLACK) | 1 шт. | — | |
|
| 3 | 09148-06020 | NUT | 2 шт. | — | |
|
| 4 | 94402-31J10 | COWLING, BODY LOWER | 1 шт. | — | |
|
| 7 | 48415-31J00 | BOLT, WINDSCREEN | 4 шт. | — | |
|
| 9 | 94630-31J10 | PANEL, METER | 1 шт. | — | |
|
| 10 | 73415-70A00 | .PAD | 3 шт. | — | |
|
| 10 | 73415-70A00 | .PAD | 2 шт. | — | |
|
| 11 | 09320-08028 | CUSHION (8X26X7) | 1 шт. | — | |
|
| 12 | 48414-31J00 | CAP, WINDSCREEN SCREW | 4 шт. | — | |
|
| 13 | 94413-31J10 | COVER, SIDE FR RH | 1 шт. | — | |
|
| 14 | 94414-31J10 | COVER, SIDE FR LH | 1 шт. | — | |
|
| 15 | 94441-31J00-291 | (BLACK) | 0 шт. | — | |
|
| 15 | 94441-31J00-291 | COWLING, SIDE LOWER RH | 1 шт. | — | |
|
| 16 | 94451-31J00-291 | (BLACK) | 0 шт. | — | |
|
| 16 | 94451-31J00-291 | COWLING, SIDE LOWER LH | 1 шт. | — | |
|
| 17 | 94461-31J00 | COVER, SIDE COWL INNER RH | 1 шт. | — | |
|
| 18 | 94462-31J00 | COVER, SIDE COWL INNER LH | 1 шт. | — | |
|
| 19 | 47911-31J00 | SCREW | 2 шт. | — | |
|
| 20 | 09320-09016 | CUSHION (9X18X9.5) | 4 шт. | — | |
|
| 20 | 09320-09016 | CUSHION (9X18X9.5) | 2 шт. | — | |
|
| 21 | 09148-05038 | NUT | 2 шт. | — | |
|
| 22 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 22 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 24 | 09139-06120 | SCREW (6X16) | 2 шт. | — | |
|
| 25 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 25 | 09409-06314 | CLIP (5.9X20.5) | 2 шт. | — | |
|
| 27 | 03541-0512A | SCREW | 4 шт. | — | |
|
| 27 | 03541-0512A | SCREW | 2 шт. | — | |
|
| 28 | 09409-06329 | CLIP | 2 шт. | — | |
|
