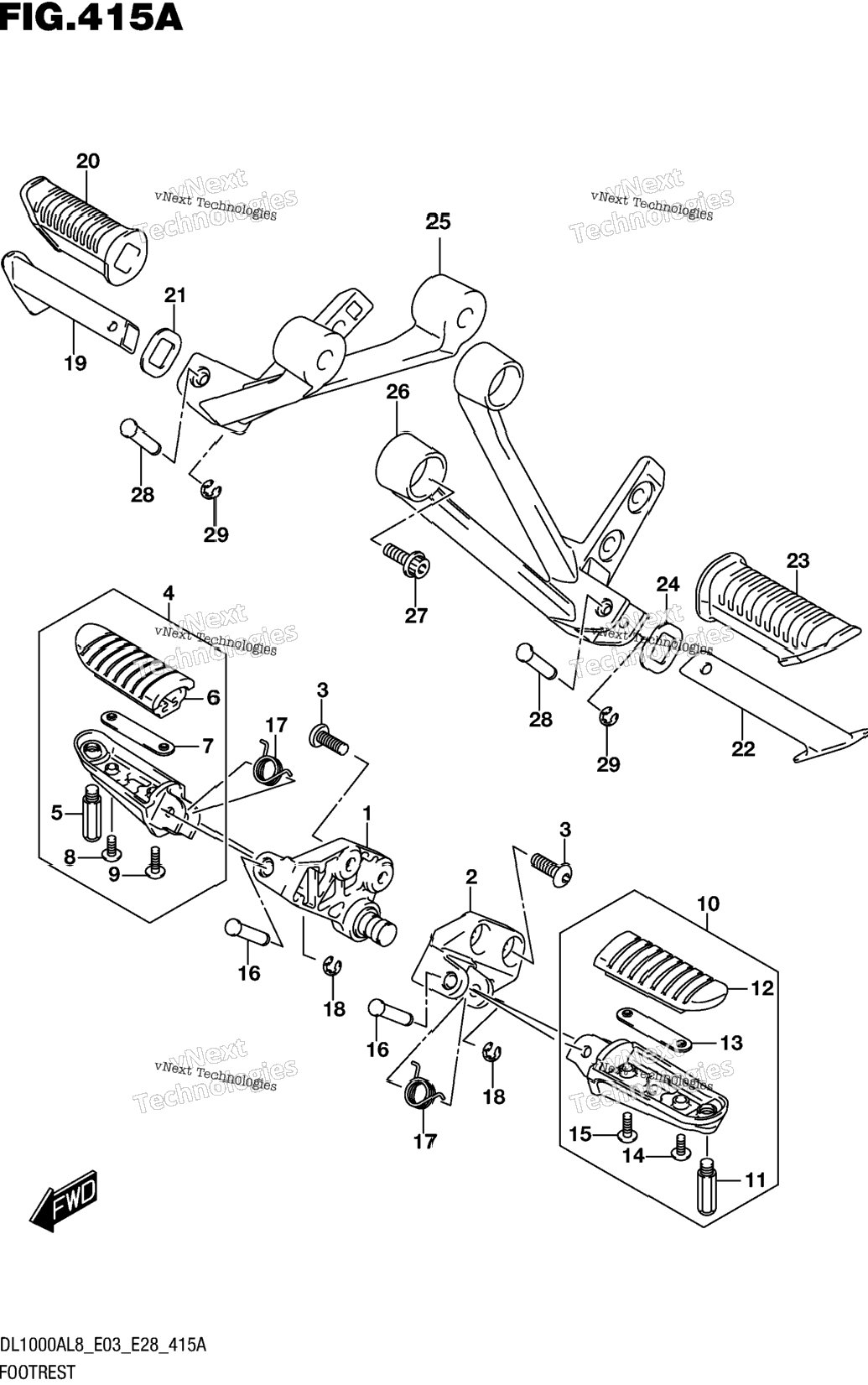

| 1 | 43510-06G01-YAP | BRACKET, FRONT RH (BLACK) | 1 шт. | — | |
|
| 2 | 43521-06G01-YAP | BRACKET, FRONT LH (BLACK) | 1 шт. | — | |
|
| 3 | 09106-08150 | BOLT (8X23) | 4 шт. | — | |
|
| 4 | 43501-31J00 | FOOTREST ASSY,FRONT RH | 1 шт. | — | |
|
| 10 | 43502-31J00 | FOOTREST ASSY,FRONT LH | 1 шт. | — | |
|
| 11 | 43576-31J00 | .SENSOR,FOOTREST | 1 шт. | — | |
|
| 11 | 43576-31J00 | .SENSOR,FOOTREST | 1 шт. | — | |
|
| 12 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 12 | 43551-06G00 | .RUBBER,FOOTREST | 1 шт. | — | |
|
| 13 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 13 | 43552-06G00 | .PLATE,FR FOOTREST RUBBER | 1 шт. | — | |
|
| 14 | 02142-0516A | .SCREW OUTER | 1 шт. | — | |
|
| 14 | 02142-0516A | .SCREW OUTER | 1 шт. | — | |
|
| 15 | 02142-0520A | .SCREW INNER | 1 шт. | — | |
|
| 15 | 02142-0520A | .SCREW INNER | 1 шт. | — | |
|
| 16 | 09208-08019 | PIN | 2 шт. | — | |
|
| 17 | 09448-18022 | SPRING | 2 шт. | — | |
|
| 18 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 19 | 43610-34A30 | BAR, PILLION FOOTREST, RH | 1 шт. | — | |
|
| 22 | 43710-34A30 | BAR, PILLION FOOTREST, LH | 1 шт. | — | |
|
| 23 | 43612-33G01 | RUBBER | 1 шт. | — | |
|
| 23 | 43612-33G01 | RUBBER | 1 шт. | — | |
|
| 24 | 43631-31J00 | WASHER, FOOTREST RUBBER | 1 шт. | — | |
|
| 24 | 43631-31J00 | WASHER, FOOTREST RUBBER | 1 шт. | — | |
|
| 25 | 43811-31J00-YAP | BRKT,PILLION FOOTREST RH (BLA | 1 шт. | — | |
|
| 26 | 43821-31J00-YAP | BRKT,PILLION FOOTREST LH (BLA | 1 шт. | — | |
|
| 27 | 09106-08131 | BOLT (8X30) | 4 шт. | — | |
|
| 28 | 09208-06007 | PIN | 2 шт. | — | |
|
| 29 | 08332-1104A | E-RING | 2 шт. | — | |
|
