Front Bracket (Dl1000al8 E33) (For Yvb,Yww)

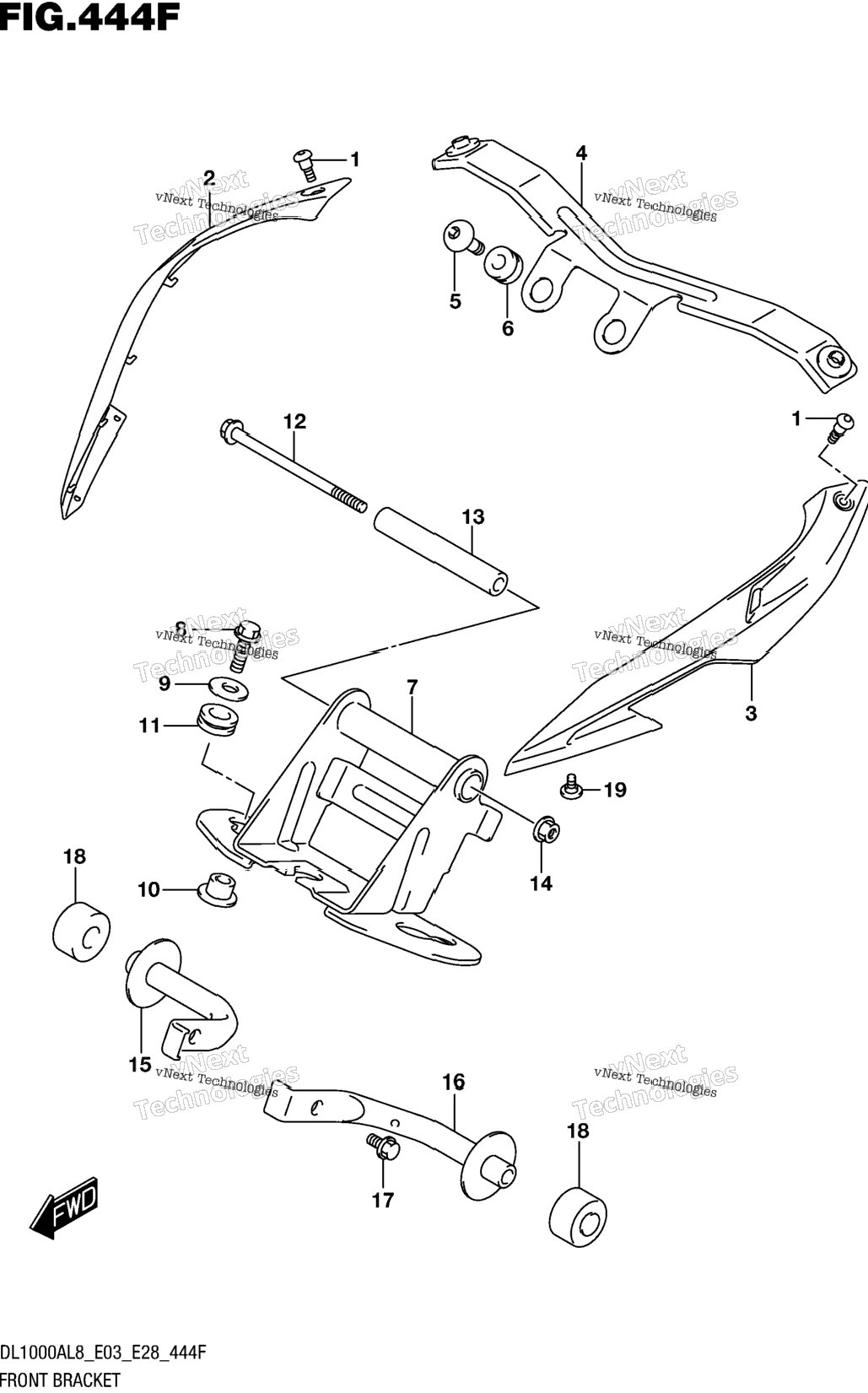

Схема Front Bracket (Dl1000al8 E33) (For Yvb,Yww)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44193-31J00 | SCREW | 2 шт. | — | |
| 2-1 | 94420-31J10-YVB | COVER, SIDE REAR RH (BLACK) | 0 шт. | — | |
| 2-2 | 94420-31J10-YWW | COVER, SIDE REAR RH (WHITE) | 1 шт. | — | |
| 3-1 | 94430-31J10-YVB | COVER, SIDE REAR LH (BLACK) | 0 шт. | — | |
| 3-2 | 94430-31J10-YWW | COVER, SIDE REAR LH (WHITE) | 1 шт. | — | |
| 4 | 44160-31J00 | BRACKET, COVER | 1 шт. | — | |
| 5 | 09139-06190 | SCREW (6X20) | 2 шт. | — | |
| 6 | 44164-31J00 | CUSHION, COVER | 0 шт. | — | |
| 7 | 44520-31J01 | BRACKET,FUEL TANK FRONT | 1 шт. | — | |
| 8 | 09139-06192 | SCREW (6X25) | 3 шт. | — | |
| 9 | 09160-06012 | WASHER (6.5X22X1.6) | 3 шт. | — | |
| 10 | 44512-16G00 | SPACER,FUEL TANK,FR | 3 шт. | — | |
| 11 | 44511-16G00 | CUSHION | 3 шт. | — | |
| 12 | 01550-0695A | BOLT | 0 шт. | — | |
| 13 | 44561-35F00 | SPACER,FUEL TANK REAR | 1 шт. | — | |
| 14 | 08319-3106B | NUT | 1 шт. | — | |
| 16 | 44560-31J00 | BRACKET, SIDE LH | 1 шт. | — | |
| 16 | 44560-31J00 | BRACKET, SIDE RH | 1 шт. | — | |
| 17 | 01550-0612A | BOLT | 2 шт. | — | |
| 18 | 44543-31J00 | CUSHION, FRONT SIDE BRACKET | 2 шт. | — | |
| 19 | 09139-05091 | SCREW (5X13) | 4 шт. | — | |
