Front Wheel (Dl1000xal8 E28)

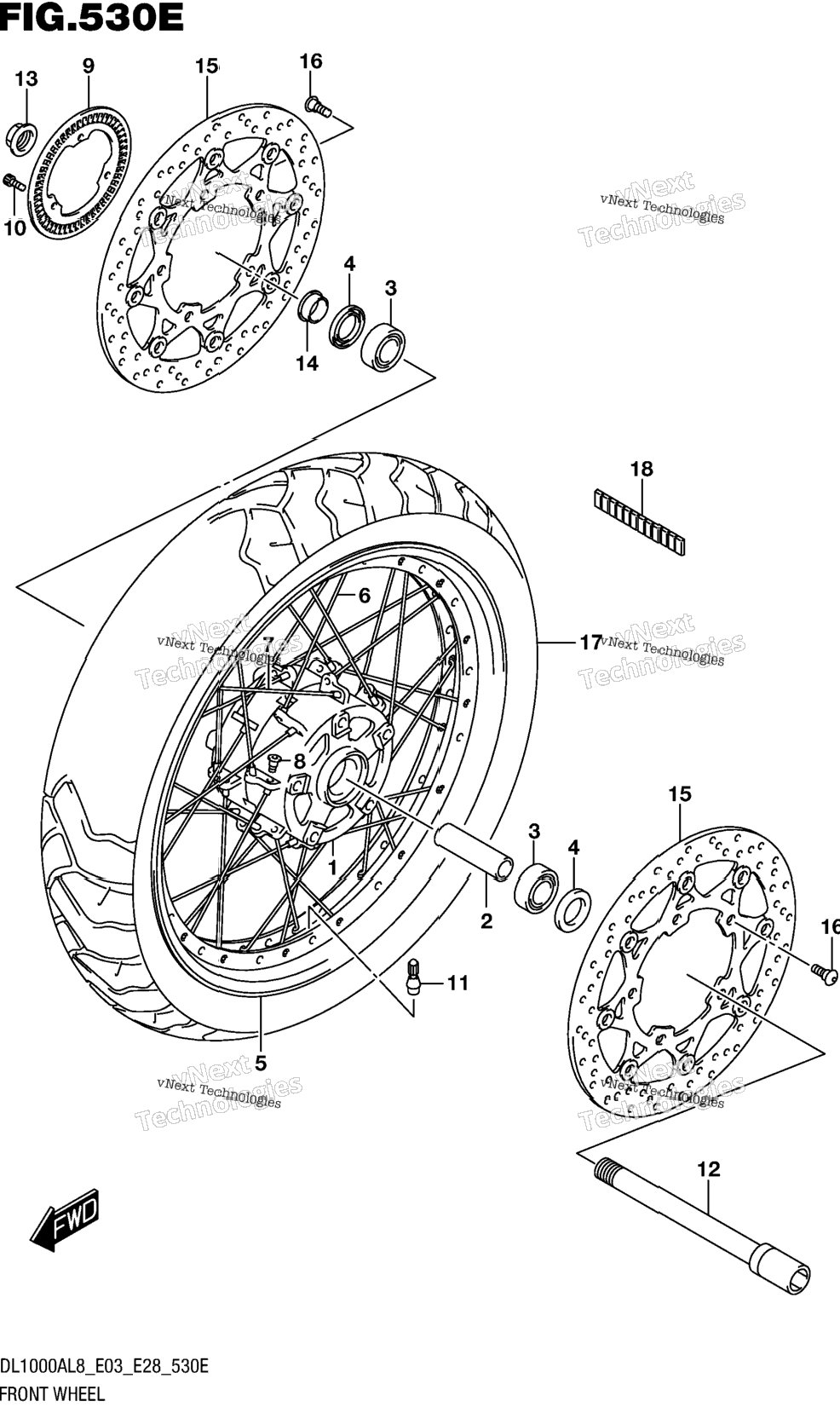

Схема Front Wheel (Dl1000xal8 E28)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 54111-31J10 | HUB,FRONT | 1 шт. | — | |
| 2 | 54731-33E20 | SPACER, FR HUB BEARING | 1 шт. | — | |
| 3 | 09262-25167 | BEARING (25X52X15) | 2 шт. | — | |
| 4 | 09285-32004 | .SEAL,OIL (32X52X7) | 2 шт. | — | |
| 5-1 | 55311-31J00 | (19M/CXMT2.50) | 0 шт. | — | |
| 5-1 | 55311-31J00 | RIM, FRONT WHEEL (BLACK) | 1 шт. | — | |
| 5-2 | 55311-31J10 | (19M/CXMT2.50) | 0 шт. | — | |
| 5-2 | 55311-31J10 | RIM, FRONT WHEEL (GOLD) | 1 шт. | — | |
| 6 | 55321-11J00 | SPOKE, FRONT WHEEL INNER | 16 шт. | — | |
| 7 | 55322-31J00 | SPOKE, FRONT WHEEL OUTER | 16 шт. | — | |
| 8 | 55326-11J00 | NIPPLE, WHEEL | 32 шт. | — | |
| 9 | 54162-27G00 | RING, SPEED SENSOR FR (50T) | 1 шт. | — | |
| 10 | 07130-0512A | BOLT | 3 шт. | — | |
| 11 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
| 12 | 54711-31J00 | AXLE,FR | 1 шт. | — | |
| 13 | 54712-47H00 | NUT, FR AXLE | 1 шт. | — | |
| 14 | 54751-41G10 | SPACER, FRONT AXLE RH | 1 шт. | — | |
| 15 | 59210-31J00 | DISC, FRONT BRAKE | 2 шт. | — | |
| 16 | 09106-08160 | BOLT (8X21) | 10 шт. | — | |
| 17 | 55110-31J00 | (110/80R19M/C 59V) BRIDGESTONE | 0 шт. | — | |
| 17 | 55110-31J00 | TIRE, FRONT BW-501 RADIAL J | 0 шт. | — | |
| 18 | 55411-11J00 | WEIGHT,WHEEL BALANCE (5GRAM) | 1 шт. | — | |
