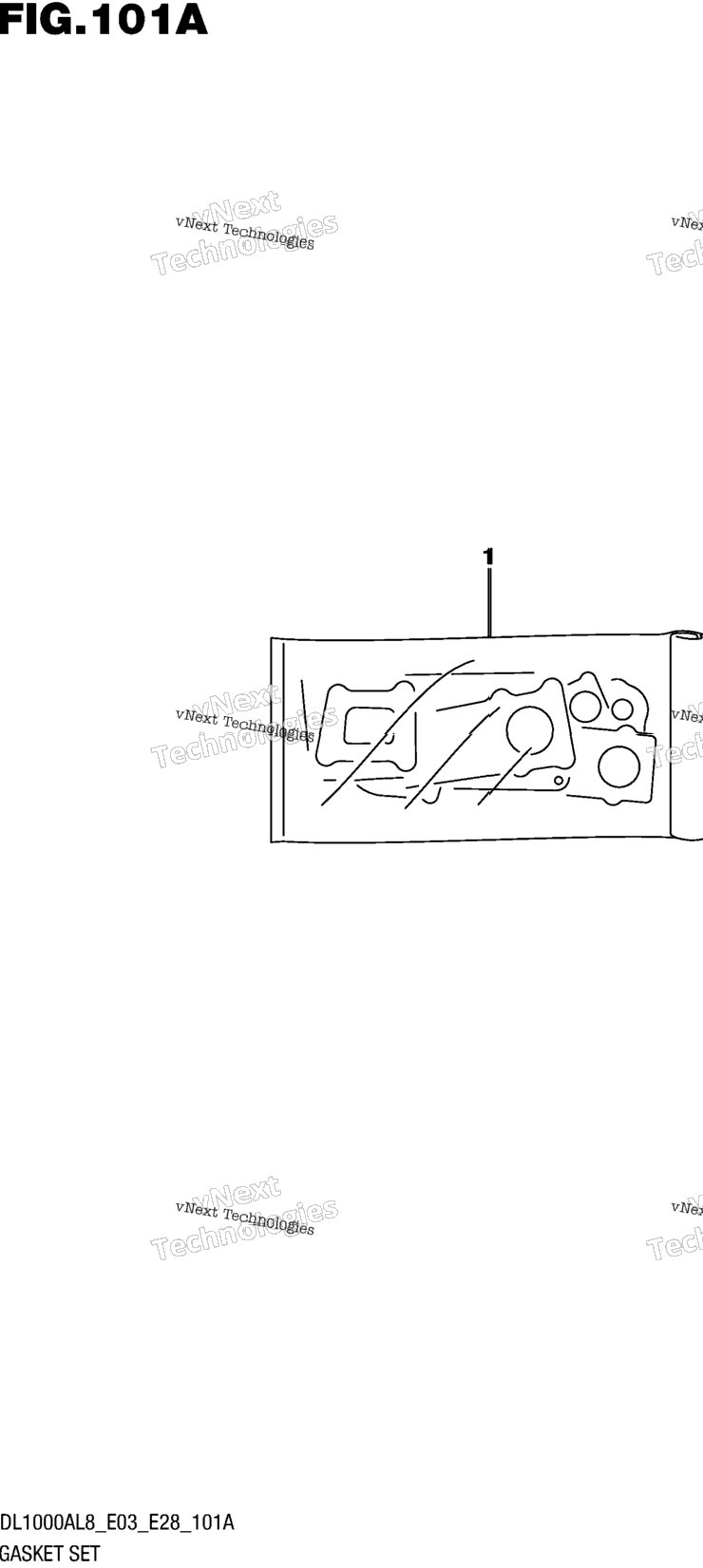

| 1 | 11401-31820 | GASKET SET OPT | 1 шт. | — | |
|
| 2 | 11141-31J00 | .GASKET, CYLINDER HEAD NOT ILLUSTRATED | 2 шт. | — | |
|
| 3 | 11173-02F00 | .GASKET, CYLINDER HEAD COVER NOT ILLUSTRATED | 2 шт. | — | |
|
| 4 | 11173-02F00 | NO.1 | 0 шт. | — | |
|
| 5 | 11178-17E00 | .GASKET, CYLINDER HEAD COVER NOT ILLUSTRATED | 2 шт. | — | |
|
| 6 | 11178-17E00 | NO.2 | 0 шт. | — | |
|
| 7 | 11241-31J00 | .GASKET, CYLINDER FRONT NOT ILLUSTRATED | 1 шт. | — | |
|
| 8 | 11242-31J00 | .GASKET, CYLINDER REAR NOT ILLUSTRATED | 1 шт. | — | |
|
| 9 | 11482-06G10 | .GASKET, CLUTCH COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 10 | 11483-02F10 | .GASKET, MAGNETO COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 11 | 11485-02F10 | .GASKET, GEAR SHIFT COVER NOT ILLUSTRATED | 1 шт. | — | |
|
| 12 | 12837-19B10 | .GASKET,TENSIONER ADJUSTER NOT ILLUSTRATED | 1 шт. | — | |
|
| 13 | 12837-24A10 | .GASKET, TENSIONER ADJUSTER NOT ILLUSTRATED | 1 шт. | — | |
|
| 14 | 14181-31D00 | .GASKET, EXHAUST PIPE NOT ILLUSTRATED | 2 шт. | — | |
|
| 15 | 14771-42F40 | .CONNECTOR, EXHAUST NOT ILLUSTRATED | 2 шт. | — | |
|
| 16 | 15201-35F00 | O RING,FUEL PUMP NOT ILLUSTRATED | 1 шт. | — | |
|
| 17 | 09168-14002 | .GASKET (13.8X18.8X4.8) NOT ILLUSTRATED | 2 шт. | — | |
|
| 18 | 09280-33004 | O-RING (D:3.1,ID:32.7) NOT ILLUSTRATED | 1 шт. | — | |
|
| 19 | 09280-55005 | .O RING (D:2.4,ID:55.6) NOT ILLUSTRATED | 2 шт. | — | |
|
| 20 | 17435-02F00 | .O RING NOT ILLUSTRATED | 1 шт. | — | |
|
