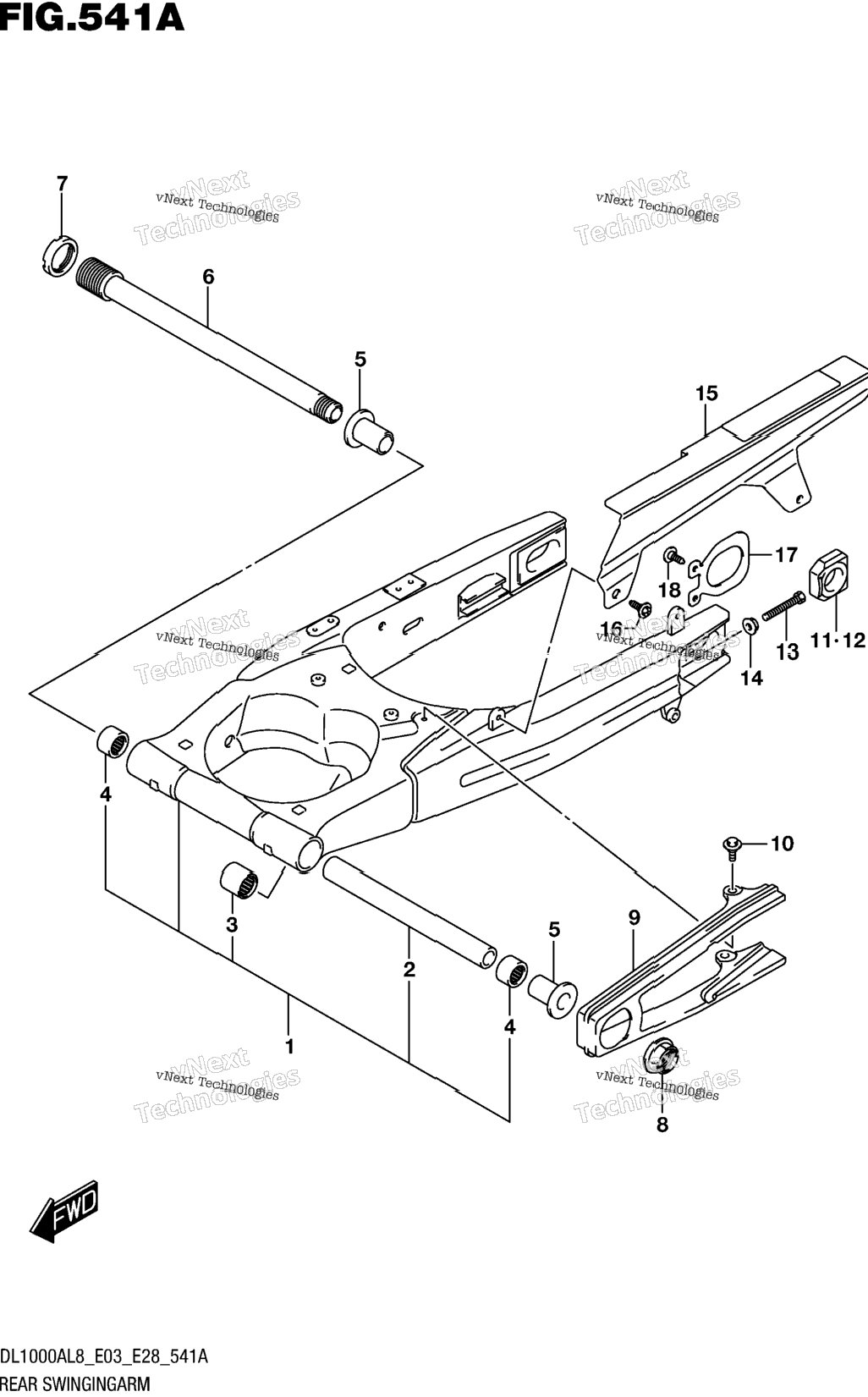

| 1 | 61000-31J10-YAP | SWINGING ARM ASSY, REAR | 1 шт. | — | |
|
| 2 | 61000-31J10-YAP | (BLACK) | 0 шт. | — | |
|
| 3 | 61281-31J00 | .SPACER (20.8X27.2X196.7) | 0 шт. | — | |
|
| 4 | 09263-20070 | .BEARING (20X27X30) | 1 шт. | — | |
|
| 5 | 09263-27013 | .BEARING (27X35X35) | 2 шт. | — | |
|
| 6 | 61251-41G00 | SPACER, SWINGING ARM | 2 шт. | — | |
|
| 7 | 61211-31J00 | SHAFT,RR SWGARM PIVOT | 0 шт. | — | |
|
| 8 | 61214-42E10 | NUT, PIVOT SHAFT | 1 шт. | — | |
|
| 9 | 09159-20006 | NUT | 1 шт. | — | |
|
| 10 | 61273-31J00 | BUFFER, CHAIN TOUCH DEFENSE | 1 шт. | — | |
|
| 11 | 09111-06072 | BOLT (6X17.8) | 2 шт. | — | |
|
| 12 | 61446-40F00 | ADJUSTER,CHAIN RH | 1 шт. | — | |
|
| 13 | 61445-40F00 | ADJUSTER,CHAIN LH | 1 шт. | — | |
|
| 14 | 09100-08287 | BOLT (8X50) | 2 шт. | — | |
|
| 15 | 08316-1008A | NUT | 2 шт. | — | |
|
| 16 | 61310-16G00 | CASE,CHAIN | 1 шт. | — | |
|
| 17 | 09111-06107 | BOLT (6X12) | 2 шт. | — | |
|
| 18 | 61124-33E00 | PLATE,RR SWING ARM BRKT | 1 шт. | — | |
|
| 19 | 09125-06060 | SCREW (6X12) | 1 шт. | — | |
|
