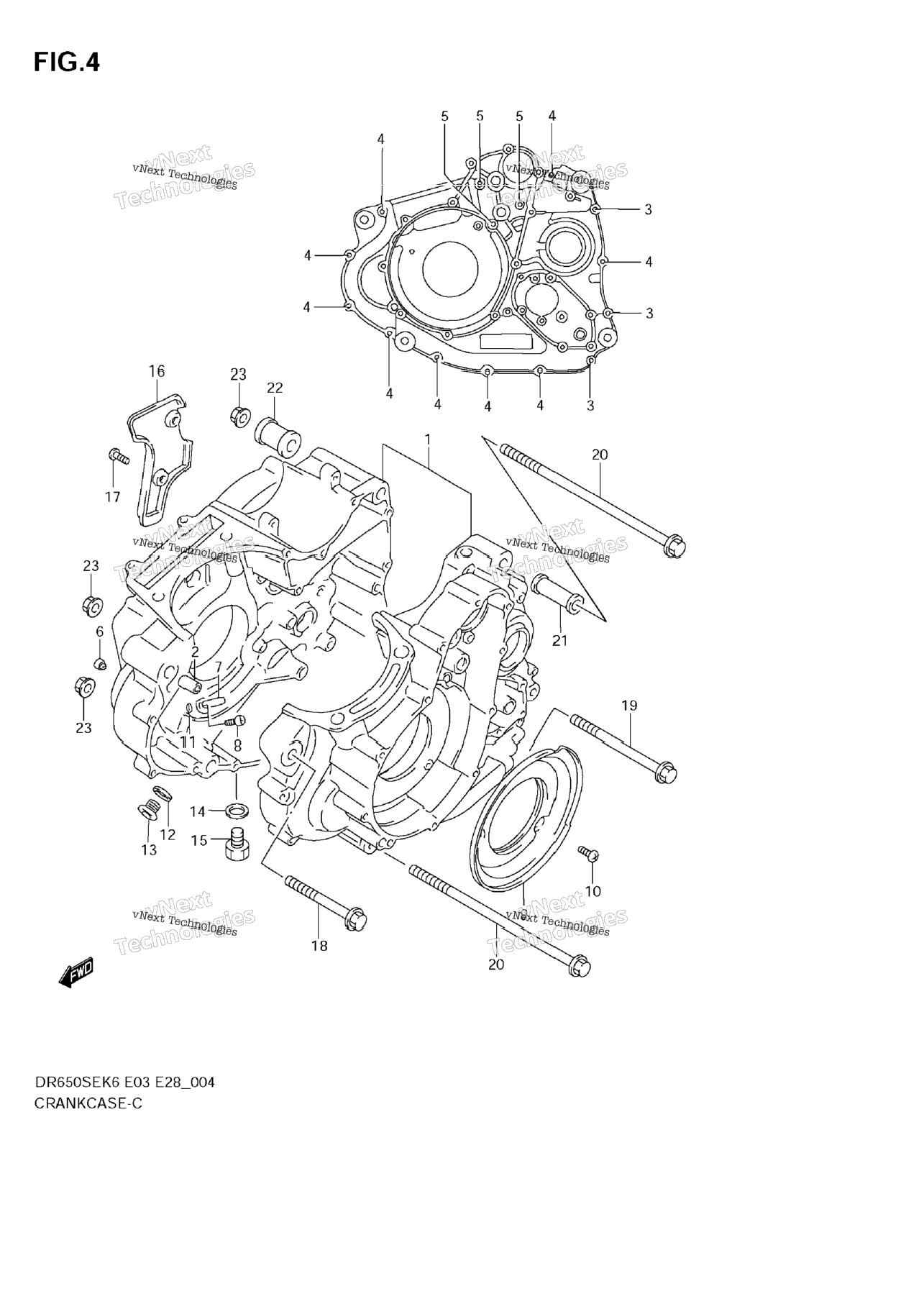

| 1 | 11300-32880 | CRANKCASE SET MODEL K6 | 1 шт. | — | |
|
| 1 | 11300-32881 | CRANKCASE SET MODEL K7/K8/K9; Includes Item(s) 2 - 6 | 1 шт. | — | |
|
| 2 | 09202-10006 | .PIN (L:27) | 0 шт. | — | |
|
| 3 | 09103-06261 | BOLT (L:60) | 4 шт. | — | |
|
| 4 | 09103-06215 | BOLT (L:40) | 9 шт. | — | |
|
| 5 | 01547-0680B | BOLT (6X80) MODEL K6 | 3 шт. | — | |
|
| 5 | 01547-0680A | BOLT MODEL K7/K8/K9 | 3 шт. | — | |
|
| 6 | 11180-43410 | JET, OIL GALLERY | 1 шт. | — | |
|
| 7 | 11390-04F00 | JET,PISTON COOLING | 1 шт. | — | |
|
| 8 | 09106-06075 | BOLT (6X12) | 1 шт. | — | |
|
| 9 | 11323-32E00 | SEPARATOR,CRANKCASE OIL | 1 шт. | — | |
|
| 11 | 09280-04004 | O RING (D:1.2,ID:4) | 1 шт. | — | |
|
| 13 | 09248-14012 | PLUG, OIL GALLERY | 1 шт. | — | |
|
| 14 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 14 | 09168-14002 | .GASKET (13.8X18.8X4.8) | 1 шт. | — | |
|
| 15 | 09247-14026 | PLUG, OIL DRAIN | 1 шт. | — | |
|
| 16 | 11317-32E00 | COVER,BREATHER | 1 шт. | — | |
|
| 17 | 02112-0612B | SCREW, BREATHER COVER MODEL K6 | 2 шт. | — | |
|
| 17 | 02112-0612A | SCREW, BREATHER COVER MODEL K7/K8/K9 | 2 шт. | — | |
|
| 17 | 02112-0612B | SCREW MODEL K6 | 3 шт. | — | |
|
| 17 | 02112-0612A | SCREW MODEL K7/K8/K9 | 3 шт. | — | |
|
| 18 | 09103-10110 | BOLT (10X100) | 1 шт. | — | |
|
| 19 | 09103-10237 | BOLT (10X130) | 1 шт. | — | |
|
| 20 | 09103-10239 | BOLT (10X235) | 2 шт. | — | |
|
| 21 | 11610-45410 | SPACER (L:65) | 1 шт. | — | |
|
| 22 | 11610-20C00 | SPACER (L:27) | 1 шт. | — | |
|
| 23 | 09159-10115 | NUT | 4 шт. | — | |
|
