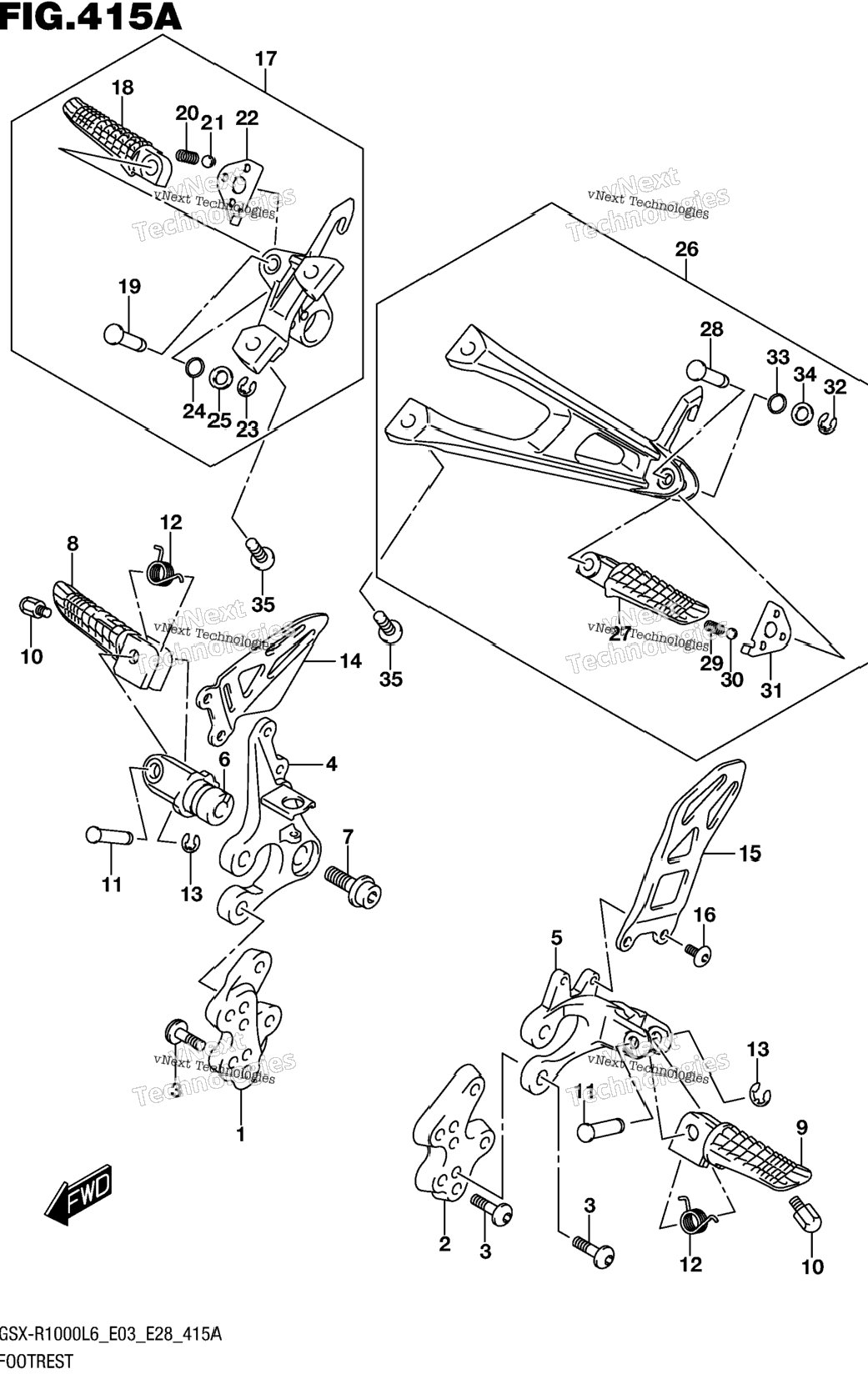

| 1 | 43541-47H10 | BRACKET, FRONT NO.1 RH | 1 шт. | — | |
|
| 2 | 43551-47H10 | BRACKET, FRONT NO.1 LH | 1 шт. | — | |
|
| 4 | 43511-47H10 | BRACKET, FRONT NO.2 RH | 1 шт. | — | |
|
| 5 | 43521-47H20 | BRACKET, FRONT NO.2 LH | 1 шт. | — | |
|
| 6 | 43531-41G20 | HOLDER,FOOTREST | 1 шт. | — | |
|
| 7 | 09106-10064 | BOLT (10X28) | 1 шт. | — | |
|
| 8 | 43516-37H10 | BAR,FRONT FOOTREST,R | 1 шт. | — | |
|
| 9 | 43526-37H10 | BAR,FRONT FOOTREST,L | 1 шт. | — | |
|
| 10 | 43576-48B40 | BOLT,BANK SENSOR | 2 шт. | — | |
|
| 11 | 09208-08018 | PIN | 2 шт. | — | |
|
| 12 | 43581-47H00 | SPRING, FRONT FOOTREST | 2 шт. | — | |
|
| 14 | 43571-47H30 | GUARD, FOOTREST RH | 1 шт. | — | |
|
| 15 | 43576-47H40 | GUARD, FOOTREST LH | 1 шт. | — | |
|
| 16 | 43577-35F00 | SCREW, LH | 2 шт. | — | |
|
| 17 | 43600-47H20 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 18 | 43611-37H10 | .BAR, PILLION FOOTREST RH | 1 шт. | — | |
|
| 22 | 43816-47H00 | .PLATE, RH | 1 шт. | — | |
|
| 26 | 43700-47H20 | FOOTREST ASSY, PILLION LH | 1 шт. | — | |
|
| 27 | 43621-37H10 | .BAR, PILLION FOOTREST LH | 1 шт. | — | |
|
| 28 | 09208-08014 | .PIN | 1 шт. | — | |
|
| 28 | 09208-08014 | .PIN | 1 шт. | — | |
|
| 29 | 09440-05005 | .SPRING | 1 шт. | — | |
|
| 29 | 09440-05005 | .SPRING | 1 шт. | — | |
|
| 30 | 06111-07004 | .BALL | 1 шт. | — | |
|
| 30 | 06111-07004 | .BALL | 1 шт. | — | |
|
| 31 | 43826-47H00 | .PLATE, LH | 1 шт. | — | |
|
| 32 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 32 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 32 | 08332-1106A | E-RING | 1 шт. | — | |
|
| 33 | 18592-68K00 | O RING (D:2.4,ID:6.9) | 2 шт. | — | |
|
| 33 | 18592-68K00 | O RING (D:2.4,ID:6.9) | 2 шт. | — | |
|
| 34 | 14289-37H00 | .WASHER | 1 шт. | — | |
|
| 34 | 14289-37H00 | .WASHER | 1 шт. | — | |
|
| 35 | 09106-08186 | BOLT (8X23) | 4 шт. | — | |
|
| 35 | 09106-08186 | BOLT (8X23) | 8 шт. | — | |
|
