Frame Cover (Ajp,Jsp)

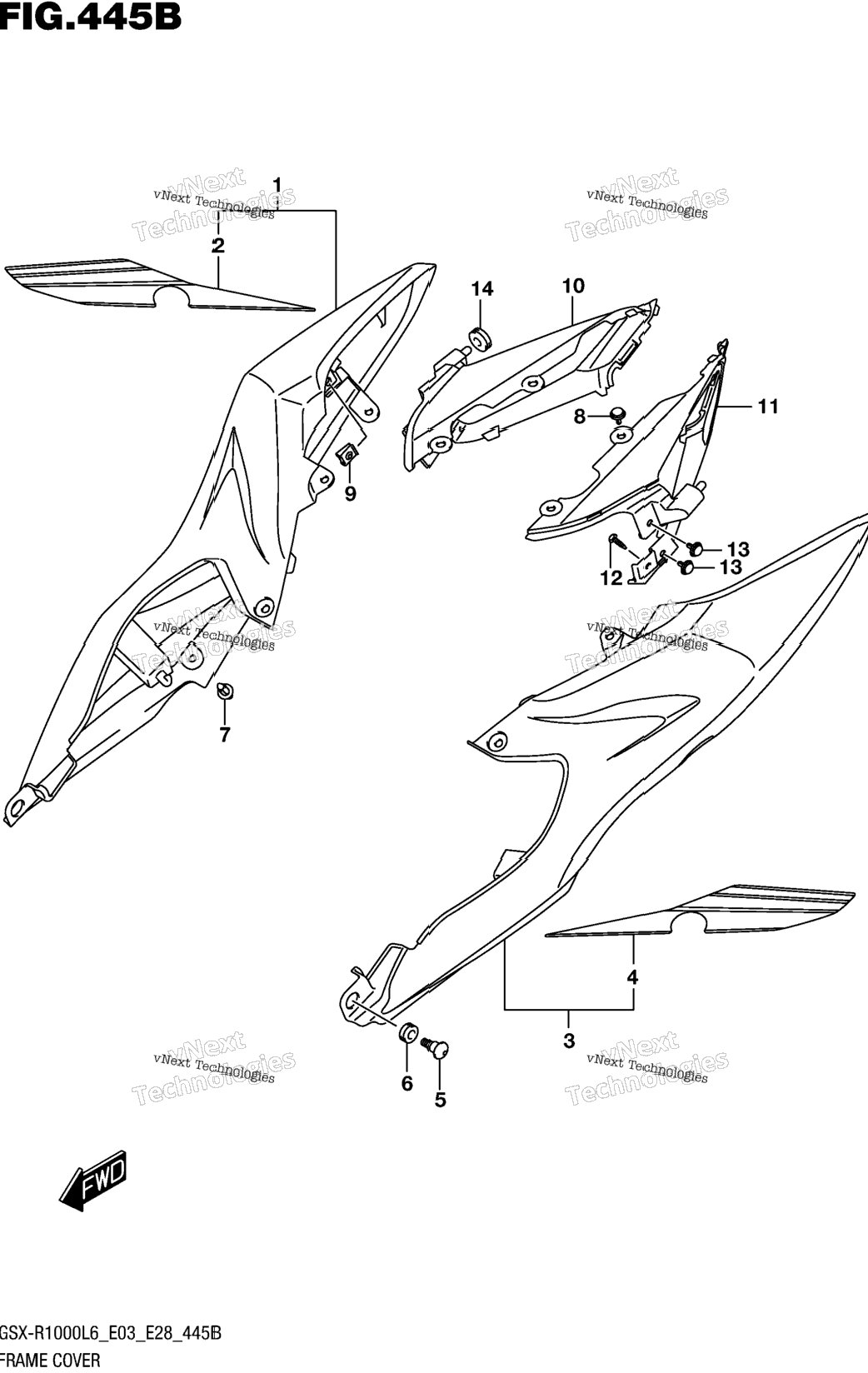

Схема Frame Cover (Ajp,Jsp)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1-1 | 47110-47H20-YWW | COVER, FRAME RH (WHITE) FOR AJP | 1 шт. | — | |
| 1-2 | 47110-47H20-YVB | COVER, FRAME RH (BLACK) FOR JSP | 1 шт. | — | |
| 2-1 | 68135-47H30-BAG | .TAPE, FRAME COVER RH FOR YWW | 1 шт. | — | |
| 2-2 | 68135-47H30-BAF | .TAPE, FRAME COVER RH FOR YVB | 1 шт. | — | |
| 3-1 | 47210-47H20-YWW | COVER, FRAME LH (WHITE) FOR AJP | 1 шт. | — | |
| 3-2 | 47210-47H20-YVB | COVER, FRAME LH (BLACK) FOR JSP | 1 шт. | — | |
| 4-1 | 68145-47H30-BAG | .TAPE, FRAME COVER RH FOR YWW | 1 шт. | — | |
| 4-2 | 68145-47H30-BAF | .TAPE, FRAME COVER RH FOR YVB | 1 шт. | — | |
| 5 | 47133-43H00 | SCREW, FRONT | 2 шт. | — | |
| 6 | 09320-08021 | CUSHION | 2 шт. | — | |
| 7 | 09409-06314-5PK | CLIP (BLACK) | 2 шт. | — | |
| 9 | 09148-05038 | NUT | 2 шт. | — | |
| 10 | 47611-47H00-YKV | COVER, FRAME REAR RH (BLACK) | 1 шт. | — | |
| 11 | 47621-47H00-YKV | COVER, FRAME REAR LH (BLACK) | 1 шт. | — | |
| 12 | 03541-0512A | SCREW | 2 шт. | — | |
| 13 | 09409-06328 | CLIP | 4 шт. | — | |
| 13 | 09409-06328 | CLIP | 4 шт. | — | |
| 14 | 09320-06504 | CUSHION | 2 шт. | — | |
| 15 | SPECIAL NOTE | : | 0 шт. | — | |
| 15 | SPECIAL NOTE | AJP=YKY(BLUE),YWW(WHITE) | 0 шт. | — | |
| 15 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
| 15 | SPECIAL NOTE | JSP=YVB(BLACK),YVZ(RED) | 0 шт. | — | |
