Fuel Tank Front Cover (Gsx-R1000al6 E33)

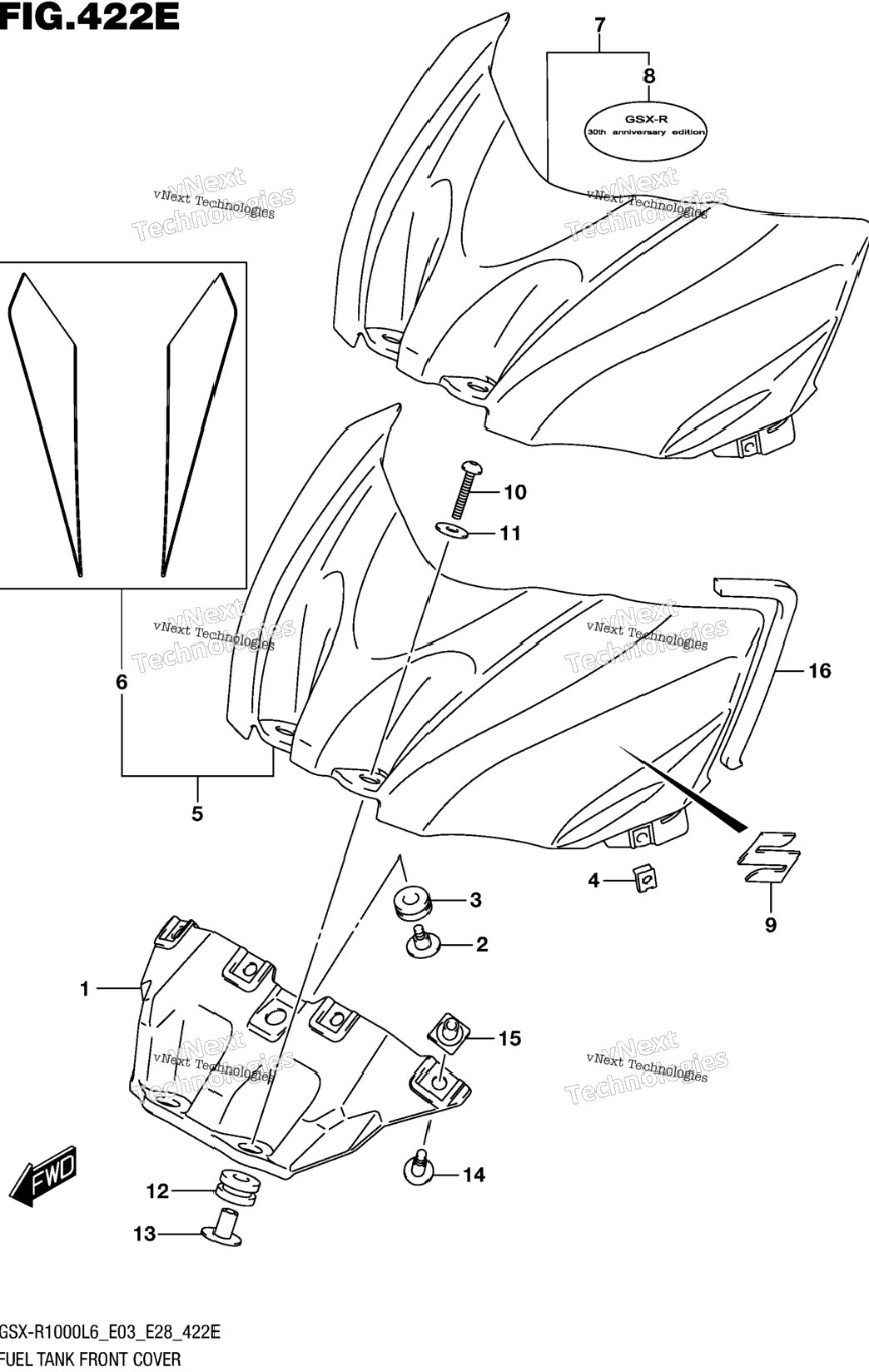

Схема Fuel Tank Front Cover (Gsx-R1000al6 E33)
| № | Артикул | Название | Кол-во | Наличие и цены | Действия |
|---|
| 1 | 44521-47H00 | BRACKET, FRONT | 1 шт. | — | |
| 2 | 09139-05078 | SCREW (5X16.4) | 1 шт. | — | |
| 3 | 09320-08021 | CUSHION | 1 шт. | — | |
| 4 | 09148-05052 | NUT (M5) | 3 шт. | — | |
| 5 | 44290-47H20-YSF | COVER, FRONT (BLUE) FOR YSF | 0 шт. | — | |
| 6 | 68120-47H10-AGQ | .TAPE SET, FUEL TANK COVER FOR YSF | 1 шт. | — | |
| 7-1 | 44290-47H40-YKY | COVER, FRONT (BLUE) FOR AJP | 0 шт. | — | |
| 7-2 | 44290-47H40-YVZ | COVER, FRONT (RED) FOR JSP | 0 шт. | — | |
| 8 | 68121-47H10-QES | .EMBLEM, FUEL TANK COVER FOR YKY,YVZ | 0 шт. | — | |
| 9 | 68111-47HA0 | EMBLEM "S" | 2 шт. | — | |
| 10 | 09139-06105 | SCREW (6X40) | 2 шт. | — | |
| 11 | 09160-06012 | WASHER (6.5X22X1.6) | 2 шт. | — | |
| 12 | 09320-10050 | CUSHION (10X22X13) | 2 шт. | — | |
| 13 | 44512-47H00 | SPACER | 2 шт. | — | |
| 14 | 09139-06181 | SCREW (6X10) | 4 шт. | — | |
| 15 | 44523-47H00 | NUT | 4 шт. | — | |
| 16 | 44277-37H00 | .CUSHION,FUEL TANK COVER | 2 шт. | — | |
| 17 | SPECIAL NOTE | : | 0 шт. | — | |
| 17 | SPECIAL NOTE | AJP=YKY(BLUE),YWW(WHITE) | 0 шт. | — | |
| 17 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
| 17 | SPECIAL NOTE | JSP=YVB(BLACK),YVZ(RED) | 0 шт. | — | |
