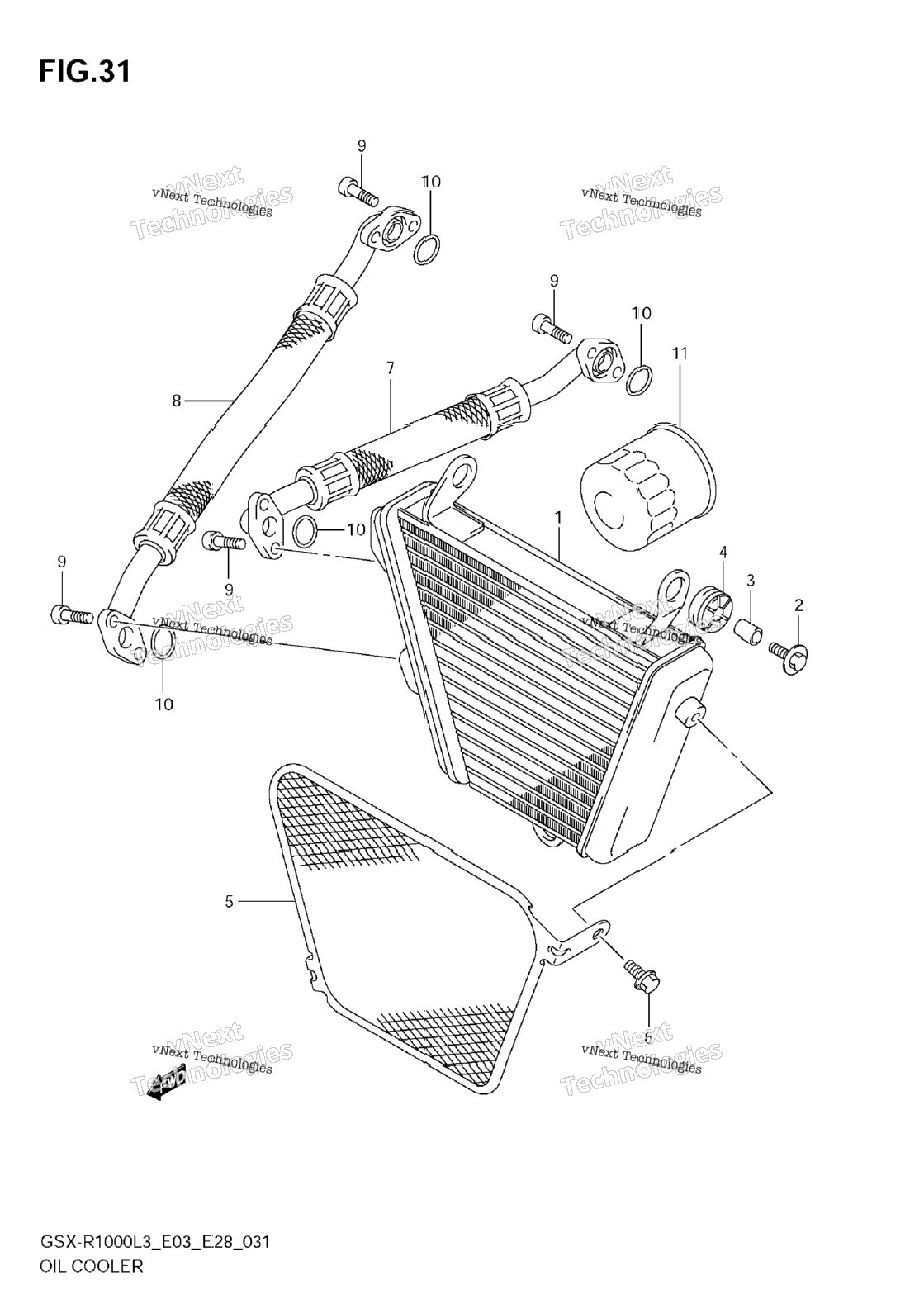

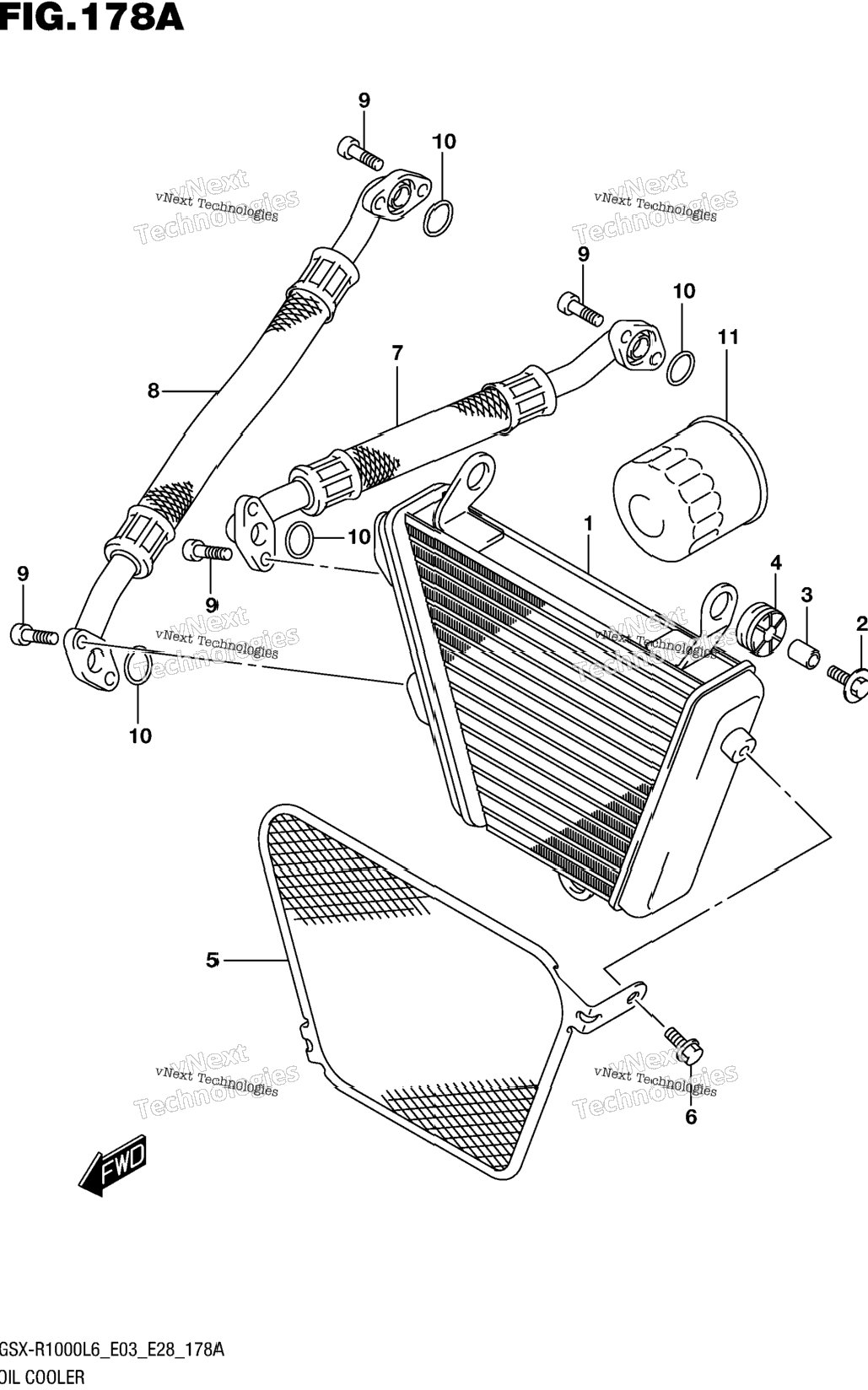

| 1 | 16600-47H10 | COOLER ASSY, OIL | 0 шт. | — | |
|
| 2 | 09118-06122 | BOLT (6X25) | 3 шт. | — | |
|
| 3 | 09180-06290 | SPACER (6.5X10X12) | 3 шт. | — | |
|
| 4 | 09320-10051 | CUSHION | 3 шт. | — | |
|
| 5 | 16650-47H10 | GUARD, OIL COOLER | 1 шт. | — | |
|
| 6 | 01550-0610A | BOLT | 2 шт. | — | |
|
| 7 | 16460-47H00 | HOSE, OIL COOLER INLET | 1 шт. | — | |
|
| 8 | 16470-47H00 | HOSE, OIL COOLER OUTLET | 0 шт. | — | |
|
| 9 | 09106-06073 | BOLT (6X16) | 8 шт. | — | |
|
| 10 | 09280-15015 | O RING (D:2.4,ID:16) | 4 шт. | — | |
|
| 11 | 16510-07J00 | FILTER ASSY,ENGINE OIL (P1.0) | 1 шт. | — | |
|
