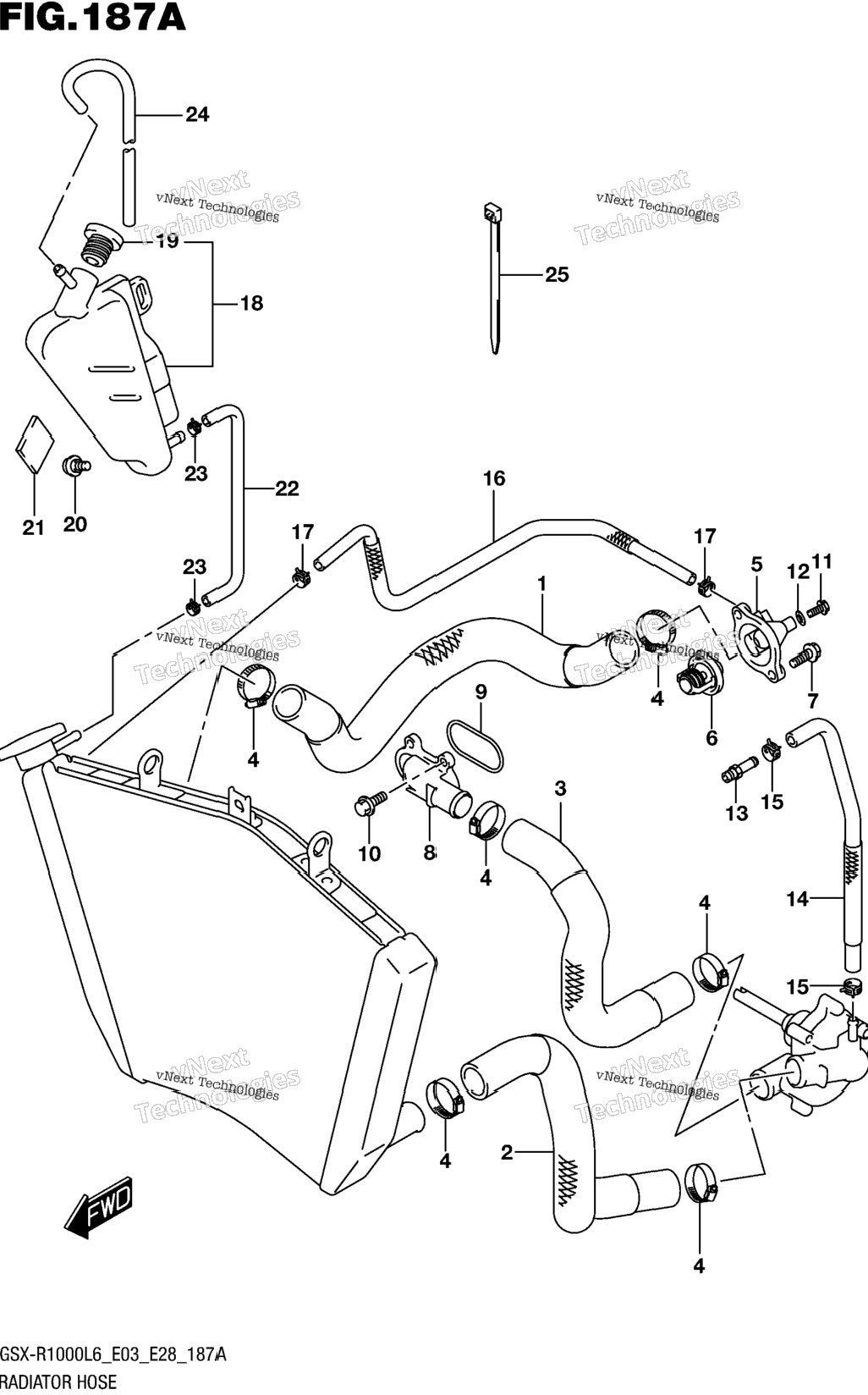

| 1 | 17851-47H10 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 2 | 17852-47H10 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 3 | 17853-47H10 | HOSE, CYLINDER INLET | 1 шт. | — | |
|
| 4 | 09402-35501 | CLAMP | 6 шт. | — | |
|
| 5 | 17661-35F00 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 6 | 17670-47H00 | THERMOSTAT, WATER | 1 шт. | — | |
|
| 7 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 8 | 17861-47H00 | CONNECTOR, CYLINDER INLET | 1 шт. | — | |
|
| 9 | 17863-47H00 | O RING | 1 шт. | — | |
|
| 10 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 11 | 17568-50F00 | BOLT, THERMOSTAT COVER AIR | 1 шт. | — | |
|
| 12 | 09168-06026 | GASKET (6.4X11.5X0.8) | 1 шт. | — | |
|
| 13 | 09362-09011 | UNION | 1 шт. | — | |
|
| 14 | 17854-47H20 | HOSE, WATER BYPASS | 1 шт. | — | |
|
| 15 | 09401-12414 | CLAMP | 2 шт. | — | |
|
| 16 | 17855-47H10 | HOSE, WATER AIR BLEED | 1 шт. | — | |
|
| 17 | 09401-10409 | CLIP (ID:10.5,H:8) | 2 шт. | — | |
|
| 18 | 17910-47H00 | TANK ASSY, RESERVOIR | 1 шт. | — | |
|
| 19 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 20 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 21 | 63191-25C00 | CUSHION | 1 шт. | — | |
|
| 22 | 17981-47H00 | HOSE, RESERVOIR TANK INLET | 1 шт. | — | |
|
| 23 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 24 | 17982-47H00 | HOSE, OVER FLOW | 1 шт. | — | |
|
| 25 | 09407-10404 | CLAMP (L:100) | 2 шт. | — | |
|
