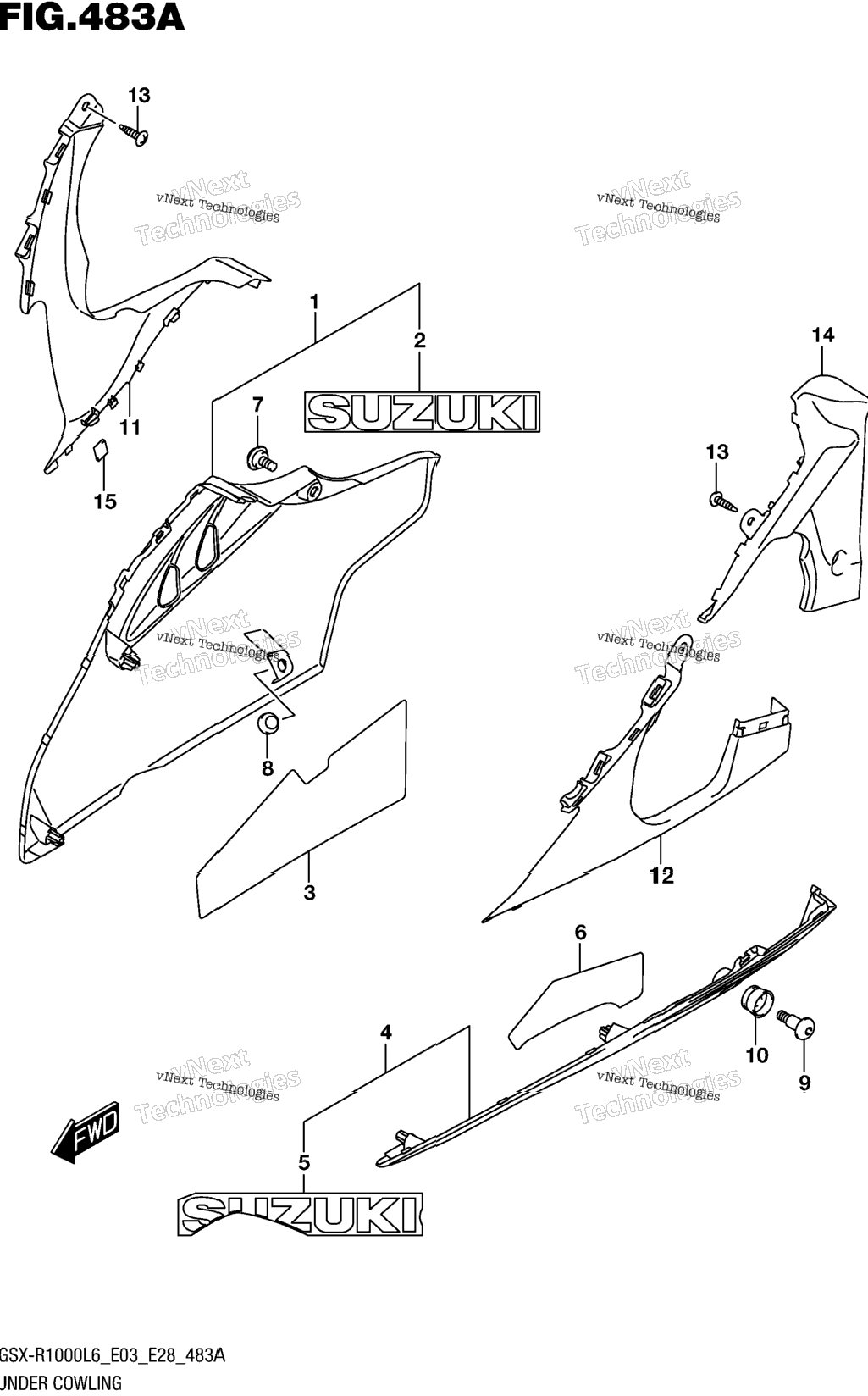

| 1 | 94470-47H00-ASX | COWL, UNDER RH (RED) FOR YSF | 1 шт. | — | |
|
| 2 | 94470-47H00-AHX | COWL, UNDER RH (WHITE) FOR AJP | 1 шт. | — | |
|
| 3 | 94470-47H00-YVB | COWL, UNDER RH (BLACK) FOR JSP | 1 шт. | — | |
|
| 4 | 68181-33C20-YWW | .EMBLEM, "SUZUKI" RH (WHITE) FOR ASX | 1 шт. | — | |
|
| 5 | 68181-33C20-YVZ | .EMBLEM, "SUZUKI" RH (RED) FOR AHX,YVB | 1 шт. | — | |
|
| 6 | 94476-47H00 | SHIELD, HEAT FRONT RH | 1 шт. | — | |
|
| 7 | 94480-47H00-ASX | COWL, UNDER LH (RED) FOR YSF | 0 шт. | — | |
|
| 8 | 94480-47H00-AHX | COWL, UNDER LH (WHITE) FOR AJP | 1 шт. | — | |
|
| 9 | 94480-47H00-YVB | COWL, UNDER LH (BLACK) FOR JSP | 1 шт. | — | |
|
| 10 | 68191-47H00-YWW | .EMBLEM, "SUZUKI" LH (WHITE) FOR ASX | 1 шт. | — | |
|
| 11 | 68191-47H00-YVZ | .EMBLEM, "SUZUKI" LH (RED) FOR AHX,YVB | 1 шт. | — | |
|
| 12 | 94486-47H00 | SHIELD, HEAT LH | 1 шт. | — | |
|
| 13 | 09139-05064 | SCREW (5X13) | 1 шт. | — | |
|
| 14 | 09321-10018 | CUSHION | 2 шт. | — | |
|
| 15 | 09139-06190 | SCREW (6X20) | 2 шт. | — | |
|
| 16 | 94479-15H00 | CUSHION,UNDER COWLING,L | 2 шт. | — | |
|
| 17 | 94474-47H00 | COWL, SIDE LOWER RH | 1 шт. | — | |
|
| 18 | 94484-47H00 | COWL, SIDE LOWER LH | 1 шт. | — | |
|
| 19 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 20 | 94482-47H00 | COVER, SIDE COWL LH | 1 шт. | — | |
|
| 21 | 63115-37H00 | CUSHION, SIDE COWL | 1 шт. | — | |
|
| 22 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 23 | SPECIAL NOTE | AJP=YKY(BLUE),YWW(WHITE) | 0 шт. | — | |
|
| 24 | SPECIAL NOTE | : | 0 шт. | — | |
|
| 25 | SPECIAL NOTE | JSP=YVB(BLACK),YVZ(RED) | 0 шт. | — | |
|
