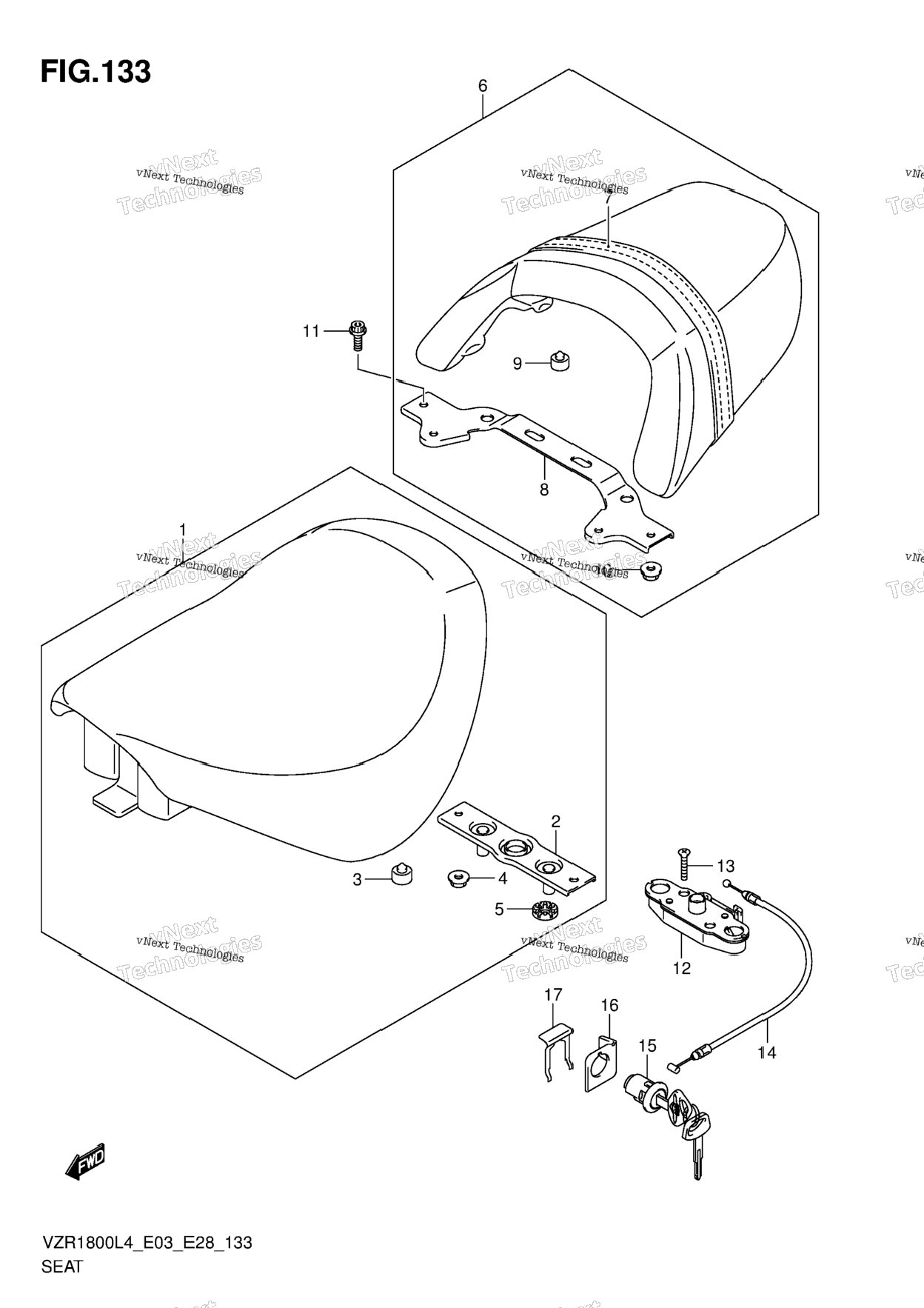

| 1 | 45100-48G01-48H | SEAT ASSY (BLACK) | 1 шт. | — | |
|
| 2 | 45290-42F02 | STRIKER, SETA LOCK | 1 шт. | — | |
|
| 3 | 09321-10011 | CUSHION | 7 шт. | — | |
|
| 4 | 08319-3106A | NUT | 2 шт. | — | |
|
| 5 | 45213-31300 | CUSHION | 2 шт. | — | |
|
| 6 | 45300-48G00-48H | SEAT ASSY, PILLION (BLACK) | 1 шт. | — | |
|
| 7 | 45180-48G00 | BAND ASSY | 0 шт. | — | |
|
| 8 | 45315-48G00 | BRACKET, BAND | 0 шт. | — | |
|
| 9 | 09321-10011 | CUSHION | 4 шт. | — | |
|
| 10 | 08319-3106A | NUT | 2 шт. | — | |
|
| 11 | 07120-0616A | BOLT | 2 шт. | — | |
|
| 12 | 45220-47H00 | BRACKET, SEAT SUPPORT | 1 шт. | — | |
|
| 13 | 02122-0630A | SCREW | 2 шт. | — | |
|
| 14 | 45280-48G00 | CABLE, SEAT LOCK | 1 шт. | — | |
|
| 15 | 95700-14F00 | LOCK SET, SEAT | 1 шт. | — | |
|
| 16 | 45288-14F00 | GUIDE,SEAT LOCK CABLE | 1 шт. | — | |
|
| 17 | 45289-11F00 | PLATE,SEAT LOCK ASSY | 1 шт. | — | |
|
