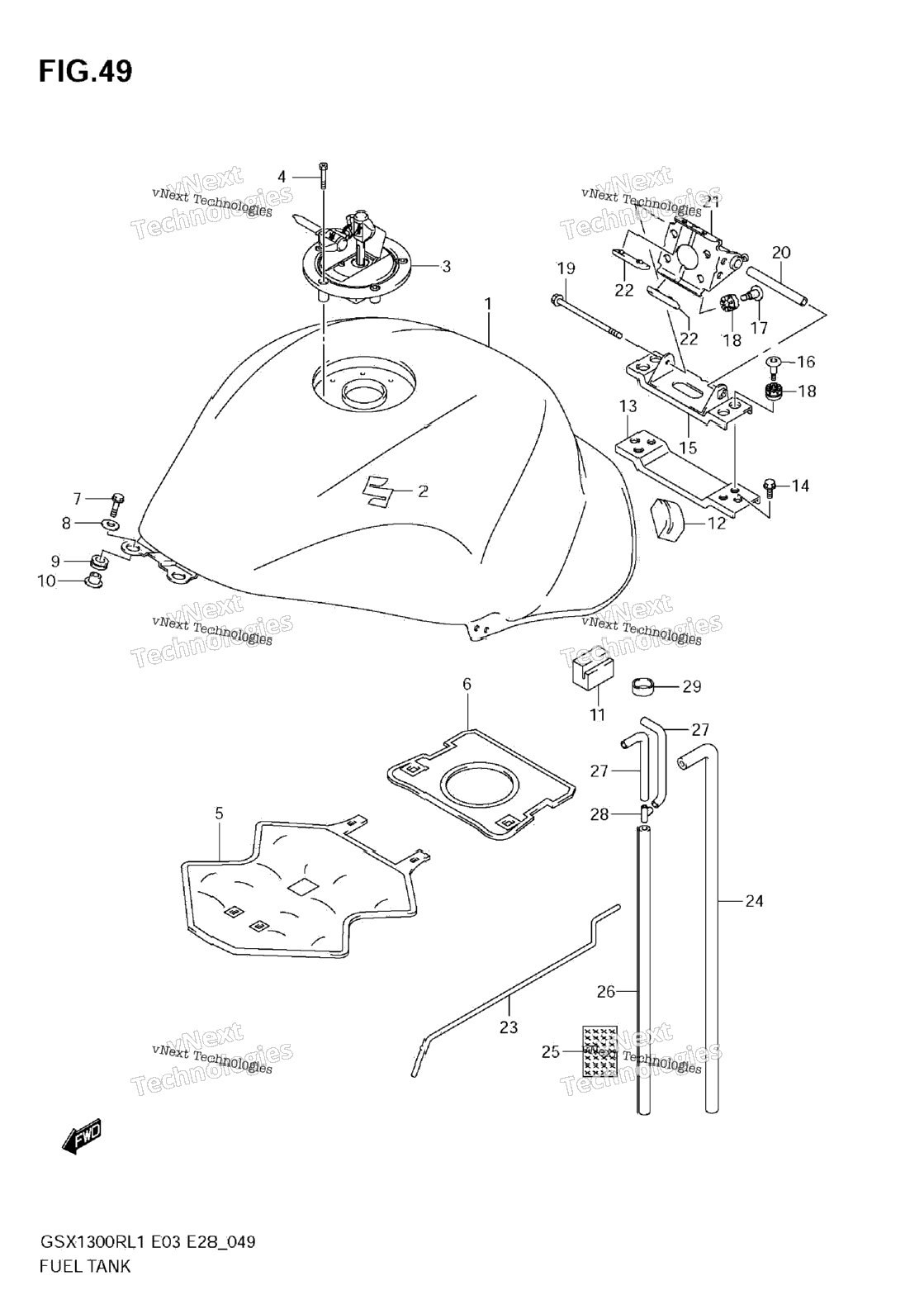

| 1 | 44100-15H60-YAY | TANK ASSY, FUEL (BLACK) | 1 шт. | — | |
|
| 1 | 44100-15H60-YKZ | TANK ASSY, FUEL (BLUE) | 0 шт. | — | |
|
| 1 | 44100-15H60-YPA | TANK ASSY, FUEL (WHITE) | 1 шт. | — | |
|
| 2 | 68111-18G20 | EMBLEM, "S" | 2 шт. | — | |
|
| 3 | 44200-16850 | CAP SET, FUEL TANK | 1 шт. | — | |
|
| 4 | 09106-05017 | BOLT (5X20) | 3 шт. | — | |
|
| 5 | 44191-15H00 | SHIELD, FUEL TANK HEAT NO.1 | 1 шт. | — | |
|
| 6 | 44191-15H10 | SHIELD, FUEL TANK HEAT NO.2 | 1 шт. | — | |
|
| 7 | 09139-06029 | SCREW (6X25) | 2 шт. | — | |
|
| 8 | 09160-06054 | WASHER (6.5X22X1.6) | 2 шт. | — | |
|
| 9 | 44511-16G00 | CUSHION | 2 шт. | — | |
|
| 10 | 44512-16G00 | SPACER,FUEL TANK,FR | 2 шт. | — | |
|
| 11 | 44541-24F00 | CUSHION, SIDE | 2 шт. | — | |
|
| 12 | 44543-15H00 | CUSHION, REAR | 2 шт. | — | |
|
| 13 | 44555-15H00 | BRACKET,FUEL TANK RR NO.3 | 0 шт. | — | |
|
| 14 | 01550-0816A | BOLT | 2 шт. | — | |
|
| 15 | 44550-15H00 | BRACKET, REAR UPPER | 0 шт. | — | |
|
| 17 | 09139-06191 | SCREW (6X22) | 4 шт. | — | |
|
| 17 | 09139-06191 | SCREW (6X22) | 4 шт. | — | |
|
| 18 | 09320-08071 | CUSHION | 8 шт. | — | |
|
| 19 | 07120-0695B | BOLT | 1 шт. | — | |
|
| 20 | 44561-18G00 | SPACER, JOINT | 1 шт. | — | |
|
| 21 | 44530-15H00 | BRACKET, REAR FRONT | 0 шт. | — | |
|
| 22 | 45149-44G00 | CUSHION, BRACKET | 0 шт. | — | |
|
| 23 | 44574-35F00 | STAY | 1 шт. | — | |
|
| 24 | 44423-15H00 | HOSE, DRAIN | 1 шт. | — | |
|
| 25 | 44427-15H00 | SHIELD, DRAIN HOSE HEAT | 1 шт. | — | |
|
| 26 | 44424-15H00 | HOSE, BREATHER | 1 шт. | — | |
|
| 27 | 44424-15H10 | HOSE, BREATHER NO.2 | 2 шт. | — | |
|
| 28 | 09367-06007 | 3 WAY | 1 шт. | — | |
|
| 29 | 09352-12163-600 | HOSE (12X16X600) L:600->10 | 0 шт. | — | |
|
