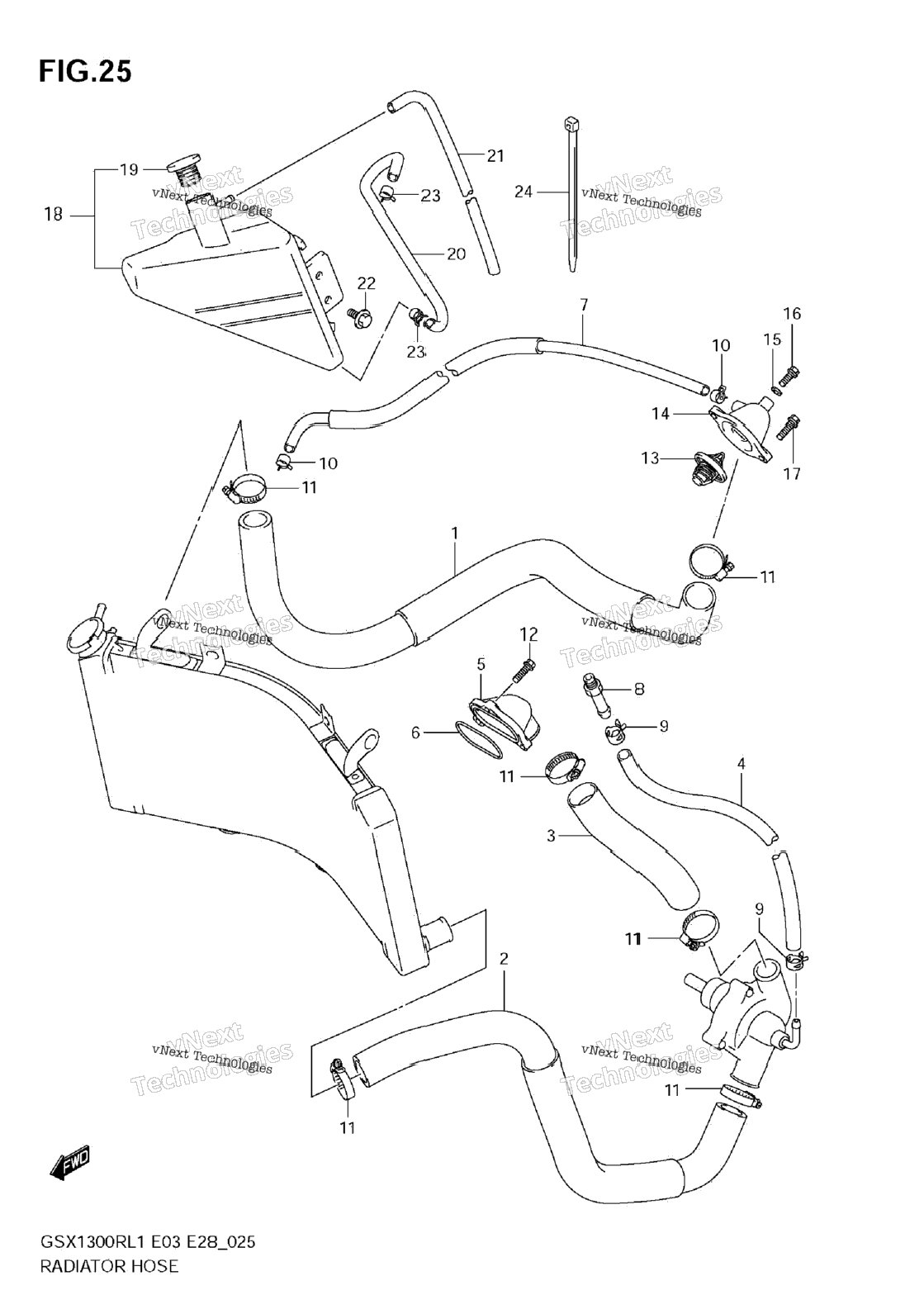

| 1 | 17851-15H00 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 2 | 17852-15H00 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 3 | 17853-24F00 | HOSE, CYLINDER INLET | 1 шт. | — | |
|
| 4 | 17854-24F00 | HOSE,WATER BYPASS NO.1 | 1 шт. | — | |
|
| 5 | 17861-33E20 | CONNECTOR, CYLINDER WATER | 1 шт. | — | |
|
| 6 | 17863-33E00 | O RING | 1 шт. | — | |
|
| 7 | 17855-15H00 | HOSE, WATER AIR BLEED | 1 шт. | — | |
|
| 8 | 09362-09011 | UNION, BYPASS | 1 шт. | — | |
|
| 9 | 09401-12409 | CLIP | 2 шт. | — | |
|
| 10 | 09401-10409 | CLIP (ID:10.5,H:8) | 2 шт. | — | |
|
| 11 | 09402-38512 | CLAMP | 6 шт. | — | |
|
| 12 | 01547-0620A | BOLT | 3 шт. | — | |
|
| 13 | 17670-15H00 | THERMOSTAT,WATER | 1 шт. | — | |
|
| 14 | 17661-35F00 | COVER, THERMOSTAT | 1 шт. | — | |
|
| 15 | 09168-06026 | GASKET (6.4X11.5X0.8) | 1 шт. | — | |
|
| 16 | 17568-50F00 | BOLT | 1 шт. | — | |
|
| 17 | 01547-0620A | BOLT | 2 шт. | — | |
|
| 18 | 17910-15H00 | TANK ASSY, RESERVOIR | 1 шт. | — | |
|
| 19 | 17931-02FA0 | .CAP, RESERVOIR TANK | 1 шт. | — | |
|
| 20 | 17981-15H00 | HOSE, RESERVER TANK INLET | 1 шт. | — | |
|
| 21 | 17982-22H00 | HOSE, RESERVER TANK OVERFLOW | 1 шт. | — | |
|
| 22 | 09111-06085 | BOLT (6X12) | 1 шт. | — | |
|
| 23 | 09401-08411 | CLIP | 2 шт. | — | |
|
| 24 | 09407-14407 | CLAMP (L:145) | 1 шт. | — | |
|
