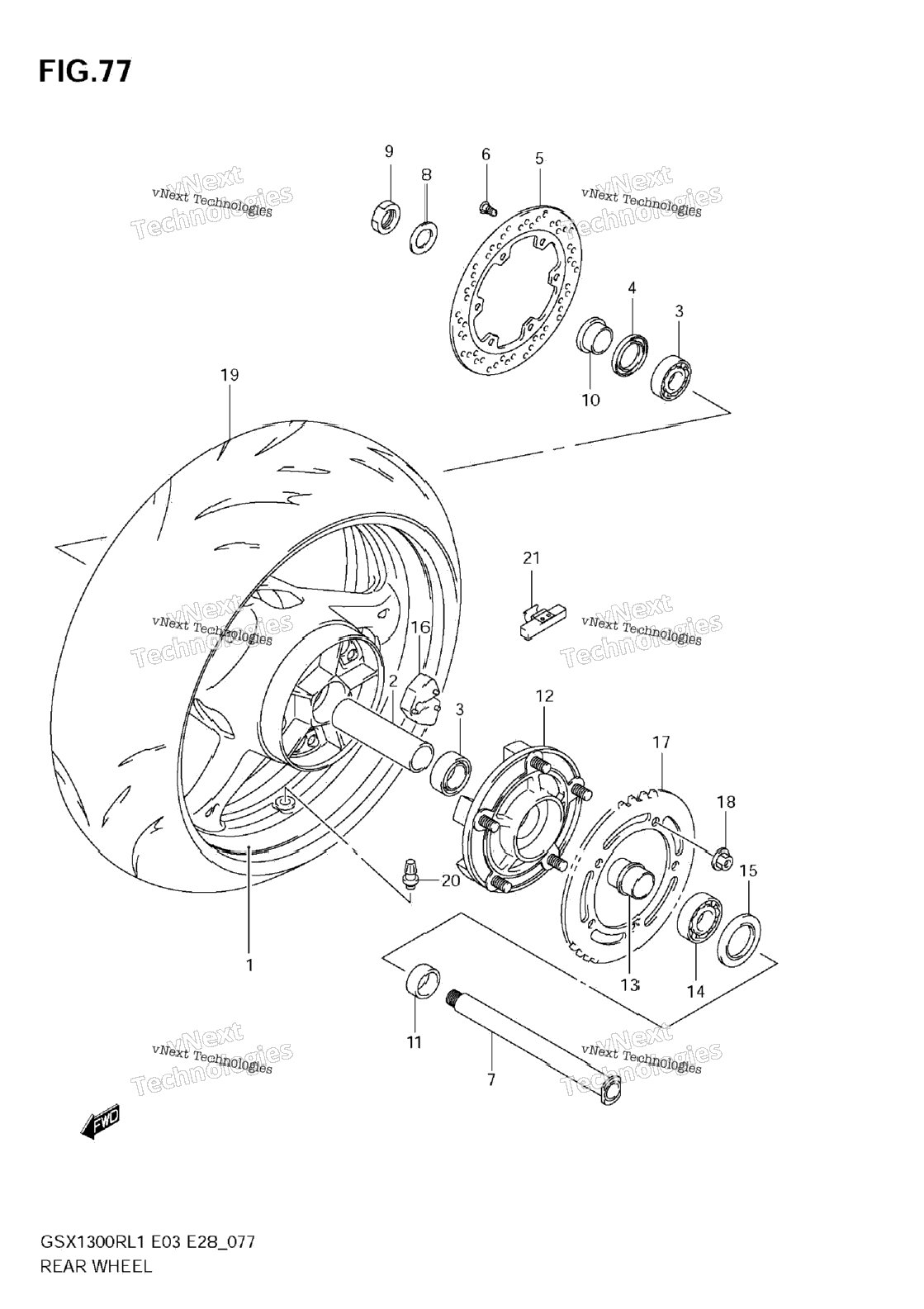

| 1 | 64111-15H00-019 | WHEEL,REAR (17XMT6.00)(BLACK) FOR YAY,YKZ | 1 шт. | — | |
|
| 2 | 64111-15H00-YMY | WHEEL, RR, 17M/CXMT6.00 (SILVER) FOR YPA | 0 шт. | — | |
|
| 3 | 64731-40F10 | SPACER, HUB BEARING | 1 шт. | — | |
|
| 4 | 09262-28043 | BEARING (28X52X12) | 2 шт. | — | |
|
| 5 | 09284-37001 | OIL SEAL (37X52X8) RH | 1 шт. | — | |
|
| 6 | 69211-15H00 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 7 | 09106-08160 | BOLT (8X21) | 6 шт. | — | |
|
| 8 | 64711-33E20 | AXLE,RR | 1 шт. | — | |
|
| 9 | 09160-25070 | WASHER | 1 шт. | — | |
|
| 10 | 09159-25003 | NUT | 1 шт. | — | |
|
| 11 | 64741-35F00 | SPACER, AXLE RH | 1 шт. | — | |
|
| 12 | 64751-49G00 | SPACER,RR AXLE,L | 1 шт. | — | |
|
| 13 | 64610-35F30 | DRUM,RR SPROCKET | 1 шт. | — | |
|
| 14 | 64733-35F00 | RETAINER, SPROCKET DRUM | 1 шт. | — | |
|
| 15 | 09262-32007 | BEARING (32X65X17) | 1 шт. | — | |
|
| 16 | 09285-39001 | OIL SEAL (39X65X7) | 1 шт. | — | |
|
| 17 | 64651-35F20 | ABSORBER, HUB SHOCK | 5 шт. | — | |
|
| 18 | 64511-40F50 | SPROCKET, REAR (NT:43-530) | 1 шт. | — | |
|
| 19 | 08319-3110A | NUT | 5 шт. | — | |
|
| 20 | 65110-24F50 | TIRE, REAR, 190/50 ZR17 (73W) (BRIDGESTONE) | 1 шт. | — | |
|
| 21 | 43130-24A00 | VALVE ASSY,WHEEL RIM (TR412) | 1 шт. | — | |
|
| 22 | 55411-22H00 | BALANCER,WHEEL (10G) | 1 шт. | — | |
|
| 23 | 55412-22H00 | BALANCER,WHEEL (20G) | 1 шт. | — | |
|
| 24 | 55413-22H00 | BALANCER,WHEEL (30G) | 1 шт. | — | |
|
