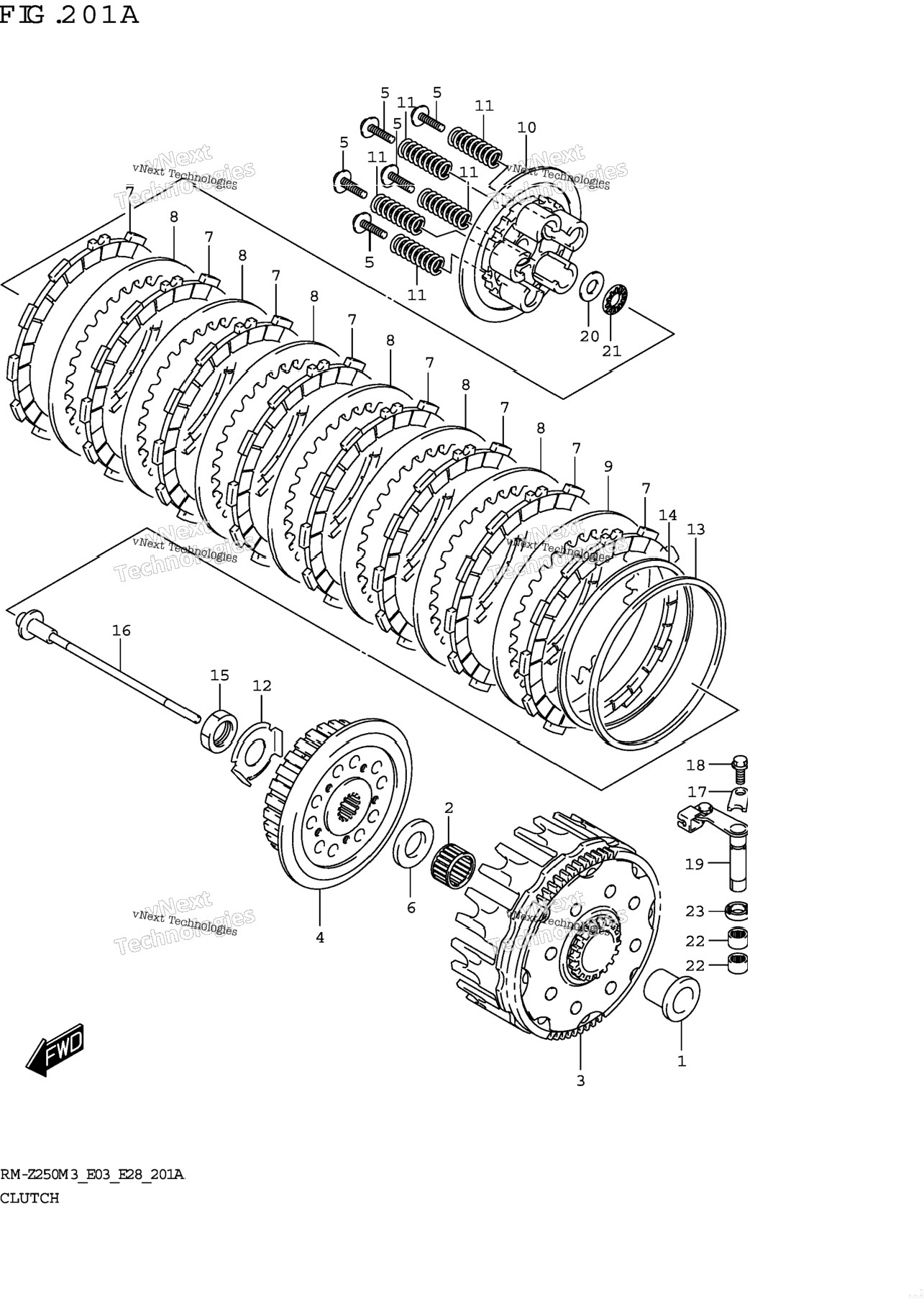

| 1 | 21251-10H00 | SPACER,PRIMARY DRIVEN GEAR (N :18/63) | 1 шт. | — | |
|
| 2 | 09263-27004 | BEARING (27X32X21.8) | 1 шт. | — | |
|
| 3 | 21200-49H10 | GEAR ASSY,PRIMARY DRIVEN (NT: 8/63) | 1 шт. | — | |
|
| 4 | 21411-10H10 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 21412-45G00 | BOLT,CLUTCH SPRING (6X35) | 5 шт. | — | |
|
| 6 | 09160-22083 | WASHER (22X45X3) | 1 шт. | — | |
|
| 7 | 21441-40F10 | PLATE,CLUTCH DRIVE,N0.2 (T:2. ) | 8 шт. | — | |
|
| 8 | 21451-10H00 | PLATE,CLUTCH DRIVEN (T:1.6) | 6 шт. | — | |
|
| 9 | 21452-10H00 | PLATE,CLUTCH DRIVEN (T:1.6) | 1 шт. | — | |
|
| 10 | 21462-10H00 | DISC,CLUTCH PRESSURE | 1 шт. | — | |
|
| 11 | 21413-46K00 | SPRING,CLUTCH | 5 шт. | — | |
|
| 12 | 21416-49H00 | WASHER,CLUTCH SLEEVE HUB LOCK | 1 шт. | — | |
|
| 13 | 21471-40F00 | SEAT,CLUTCH PLATE WAVE WASHER | 1 шт. | — | |
|
| 14 | 21472-10H00 | WASHER,CLUTCH PLATE | 1 шт. | — | |
|
| 15 | 21414-49H00 | NUT,CLUTCH SLEEVE HUB | 1 шт. | — | |
|
| 16 | 23110-46K00 | ROD,CLUTCH PUSH | 1 шт. | — | |
|
| 17 | 23117-10H00 | RETAINER,CL RELEASE CAMSHAFT | 1 шт. | — | |
|
| 18 | 01547-0612A | BOLT | 1 шт. | — | |
|
| 19 | 23200-49H20 | CAMSHAFT,CLUTCH RELEASE | 1 шт. | — | |
|
| 20 | 09181-12016 | SHIM (12X26X0.8) | 1 шт. | — | |
|
| 21 | 09263-12019 | BEARING (12X26X2) | 1 шт. | — | |
|
| 22 | 09263-10014 | BEARING (10X14X10) | 2 шт. | — | |
|
| 23 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
