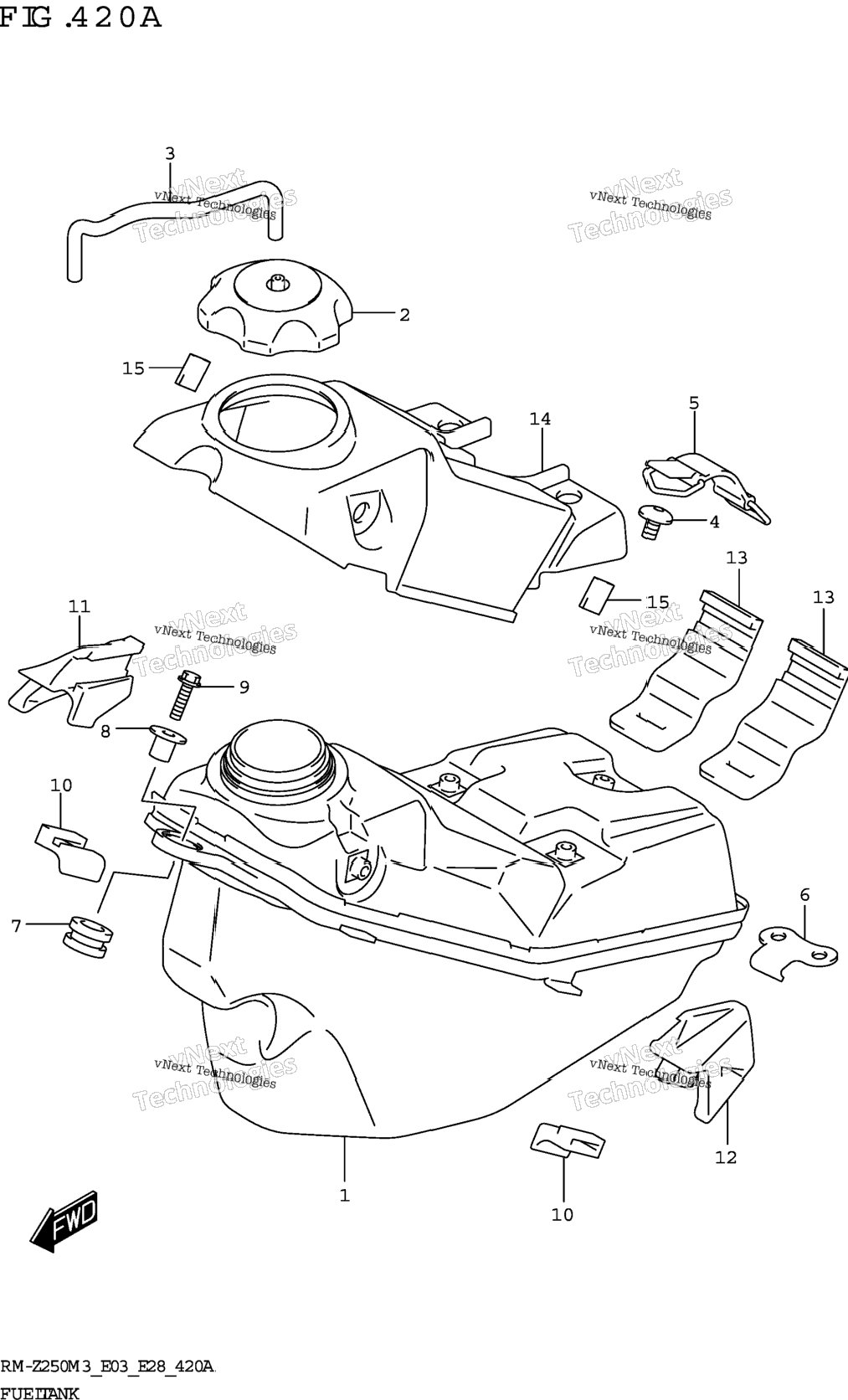

| 1 | 44110-37K00 | TANK,FUEL | 1 шт. | — | |
|
| 2 | 44200-37K00 | CAP ASSY,FUEL TANK FILLER | 1 шт. | — | |
|
| 3 | 09352-50005-350 | HOSE (5X8.2X350) | 1 шт. | — | |
|
| 4 | 09106-06117 | BOLT (6X12) | 1 шт. | — | |
|
| 5 | 44560-37K00 | BAND,FUEL TANK REAR | 1 шт. | — | |
|
| 6 | 41433-46K00 | PLATE,FUEL TANK BAND | 1 шт. | — | |
|
| 7 | 44541-37K00 | CUSHION,FUEL TANK FRONT | 1 шт. | — | |
|
| 8 | 44134-37K00 | SPACER,FUEL TANK FRONT | 1 шт. | — | |
|
| 9 | 01547-0630A | BOLT | 1 шт. | — | |
|
| 10 | 44545-37K00 | CUSHION,TANK SIDE FR | 2 шт. | — | |
|
| 11 | 44543-37K00 | CUSHION,FUEL TANK SIDE RH | 1 шт. | — | |
|
| 12 | 44544-37K00 | CUSHION,FUEL TANK SIDE LH | 1 шт. | — | |
|
| 13 | 44542-37K00 | CUSHION,FUEL TANK REAR | 2 шт. | — | |
|
| 14 | 44291-37K00-QLD | COVER,FUEL TANK (BLUE) | 1 шт. | — | |
|
| 15 | 94422-06G00 | CUSHION (20X30X8) | 2 шт. | — | |
|
