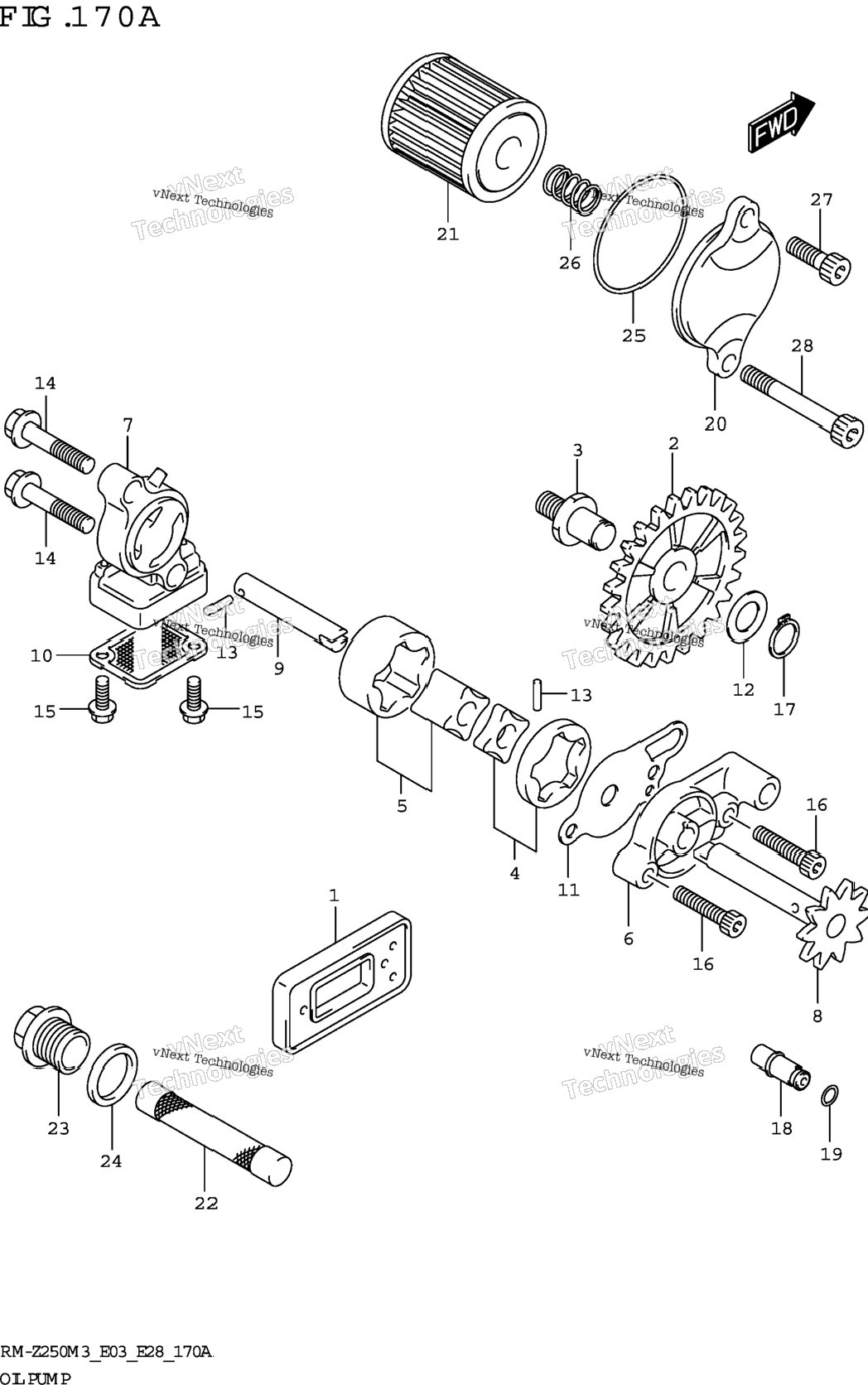

| 1 | 13150-28H10 | VALVE ASSY,OIL REED | 1 шт. | — | |
|
| 2 | 16321-49H00 | GEAR,OIL PUMP IDLE (NT:25) | 1 шт. | — | |
|
| 3 | 16322-49H00 | SHAFT,OIL PUMP IDLE GEAR | 1 шт. | — | |
|
| 4 | 16410-49H00 | ROTOR SET,OIL PUMP NO.1 | 1 шт. | — | |
|
| 5 | 16410-45G10 | ROTOR SET,OIL PUMP | 1 шт. | — | |
|
| 6 | 16430-49H10 | COVER,OIL PUMP NO.1 | 1 шт. | — | |
|
| 7 | 16433-49H20 | COVER,OIL PUMP NO.2 | 1 шт. | — | |
|
| 8 | 16440-49H10 | SHAFT,OIL PUMP DRN GEAR | 1 шт. | — | |
|
| 9 | 16443-46K00 | SHAFT,OIL PUMP NO.2 | 1 шт. | — | |
|
| 10 | 16530-49H00 | STRAINER,OIL PUMP NO.2 | 1 шт. | — | |
|
| 11 | 16432-49H00 | PLATE,OIL PUMP | 1 шт. | — | |
|
| 12 | 09181-10158 | SHIM (10X18X0.5) | 1 шт. | — | |
|
| 13 | 09261-02008 | PIN (2.5X11.8) | 2 шт. | — | |
|
| 15 | 07120-0512A | .BOLT | 2 шт. | — | |
|
| 16 | 07130-0520A | BOLT | 2 шт. | — | |
|
| 17 | 08331-31109 | CIRCLIP | 1 шт. | — | |
|
| 18 | 16440-28H00 | VALVE ASSY,OIL RELIEF | 1 шт. | — | |
|
| 19 | 09280-05007 | O-RING (D:1.2,ID:4.7) | 1 шт. | — | |
|
| 20 | 16315-35G40 | CAP,ENG OIL FILTER OUTER | 1 шт. | — | |
|
| 21 | 16510-35G00 | FILTER ASSY,ENG OIL | 1 шт. | — | |
|
| 22 | 16520-10H10 | STRAINER,ENGINE OIL | 1 шт. | — | |
|
| 23 | 16316-10H01 | CAP,ENG OIL STRAINER | 1 шт. | — | |
|
| 24 | 09168-16002 | GASKET (16X22X2) | 1 шт. | — | |
|
| 25 | 09280-39002 | O-RING | 1 шт. | — | |
|
| 26 | 09440-10038 | SPRING | 1 шт. | — | |
|
| 27 | 01547-0616A | BOLT | 1 шт. | — | |
|
| 28 | 01547-0635A | BOLT | 1 шт. | — | |
|
| 28 | 01547-0635A | BOLT | 1 шт. | — | |
|
