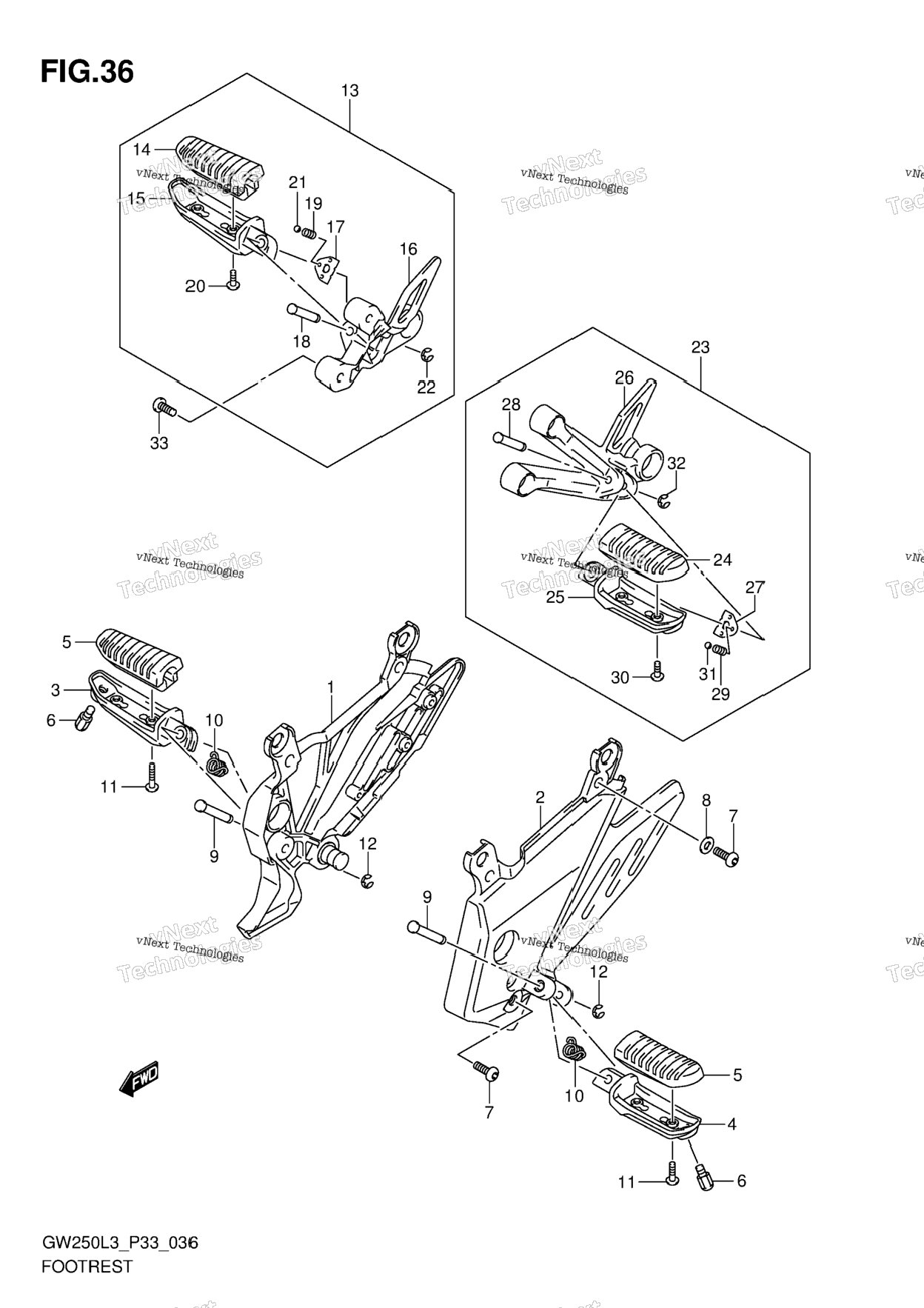

| 1 | 43510-48H00-000 | BRACKET, FOOTREST RH | 0 шт. | — | |
|
| 2 | 43521-48H00-000 | BRACKET, FOOTREST LH | 0 шт. | — | |
|
| 3 | 43511-44G10-000 | BAR, FRONT FOOTREST RH | 0 шт. | — | |
|
| 4 | 43521-44G10-000 | BAR, FRONT FOOTREST LH | 0 шт. | — | |
|
| 5 | 43550-44G20-000 | RUBBER, FOOTREST | 0 шт. | — | |
|
| 6 | 43576-48H00-000 | BOLT, BANK SENSOR | 0 шт. | — | |
|
| 7 | 09106-08194-000 | BOLT (8X20) | 0 шт. | — | |
|
| 8 | 09160-09015-000 | WASHER (9X19X1.0) | 0 шт. | — | |
|
| 9 | 09208-08022-000 | PIN | 0 шт. | — | |
|
| 10 | 09448-16033-000 | SPRING | 0 шт. | — | |
|
| 13 | 43600-48H00-000 | FOOTREST ASSY, PILLION RH | 0 шт. | — | |
|
| 15 | 43611-44G00-000 | .BAR,PILLION FOOTREST RH | 0 шт. | — | |
|
| 16 | 43811-48H00-000 | BRACKET, PILLION FOOTREST RH | 0 шт. | — | |
|
| 23 | 43700-48H00-000 | FOOTREST ASSY, PILLION LH | 0 шт. | — | |
|
| 24 | 43550-44G00-000 | .RUBBER,FOOTREST | 0 шт. | — | |
|
| 24 | 43550-44G00-000 | .RUBBER,FOOTREST | 0 шт. | — | |
|
| 25 | 43621-44G00-000 | .BAR,PILLION FOOTREST LH | 0 шт. | — | |
|
| 26 | 43821-48H00-000 | BRACKET, PILLION FOOTREST LH | 0 шт. | — | |
|
| 27 | 43816-01H10-000 | PLATE, PILLION FOOTREST | 0 шт. | — | |
|
| 27 | 43816-01H10-000 | PLATE, PILLION FOOTREST | 0 шт. | — | |
|
| 28 | 09208-08021-000 | PIN | 0 шт. | — | |
|
| 28 | 09208-08021-000 | PIN | 0 шт. | — | |
|
| 29 | 09440-05003-000 | SPRING | 0 шт. | — | |
|
| 29 | 09440-05003-000 | SPRING | 0 шт. | — | |
|
| 30 | 02142-0512A-000 | SCREW | 0 шт. | — | |
|
| 30 | 02142-0512A-000 | SCREW | 0 шт. | — | |
|
| 30 | 02142-0512A-000 | SCREW | 0 шт. | — | |
|
| 31 | 06111-07004-000 | .BALL | 0 шт. | — | |
|
| 31 | 06111-07004-000 | .BALL | 0 шт. | — | |
|
| 32 | 08332-1106A-000 | E RING | 0 шт. | — | |
|
| 32 | 08332-1106A-000 | E RING | 0 шт. | — | |
|
| 32 | 08332-1106A-000 | E RING | 0 шт. | — | |
|
| 33 | 09106-08150-000 | BOLT (8X23) | 0 шт. | — | |
|
