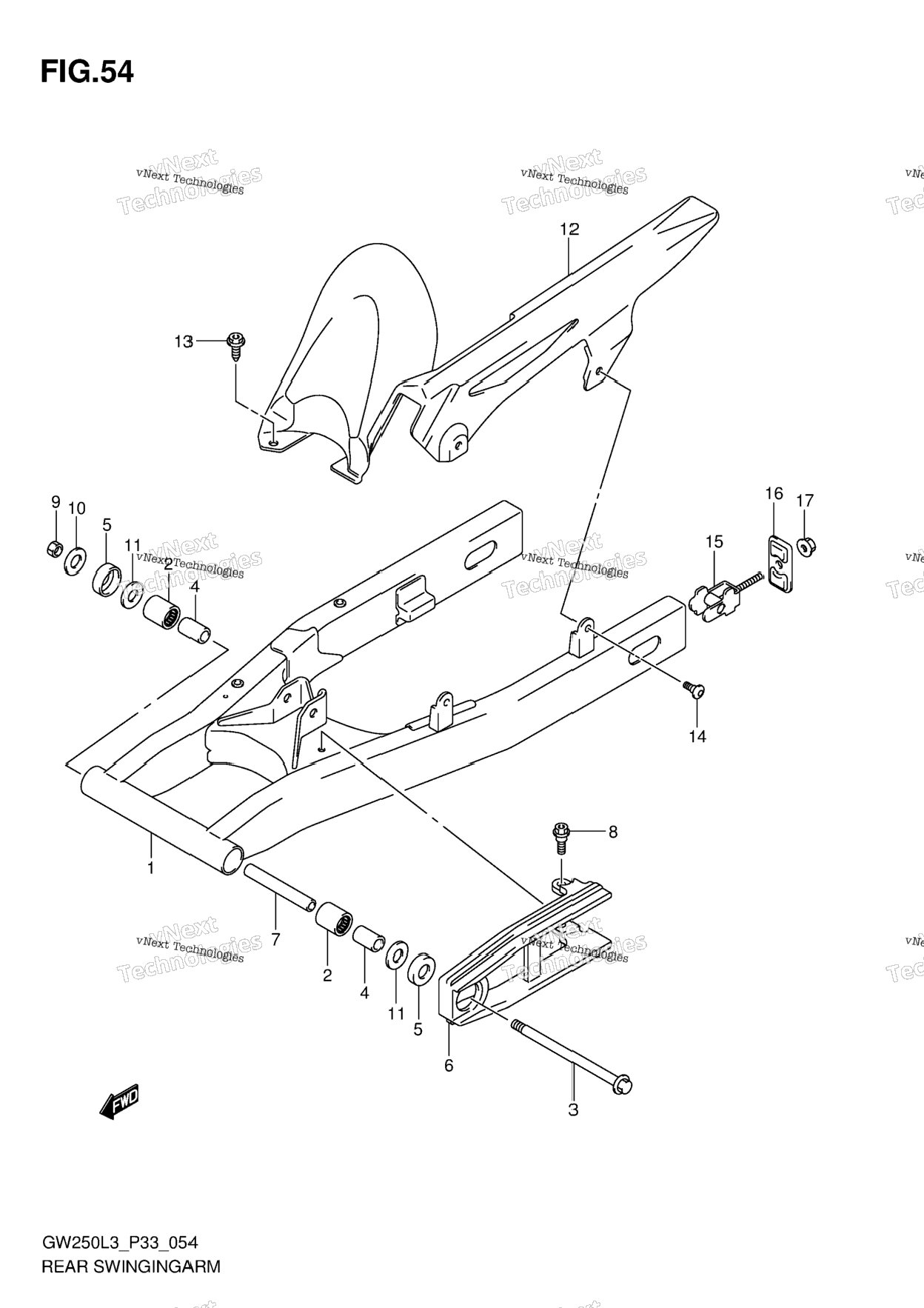

| 1 | 61100-48H00-YGA | SWINGINGARM, REAR (BLACK) | 1 шт. | — | |
|
| 2 | 09263-22L01-000 | BEARING (22X29X30) | 0 шт. | — | |
|
| 3 | 61211-48H00-000 | SHAFT, PIVOT | 0 шт. | — | |
|
| 4 | 61251-48H00-000 | SPACER, PIVOT BEARING | 0 шт. | — | |
|
| 5 | 61262-48H00-000 | COVER, PIVOT DUST | 0 шт. | — | |
|
| 6 | 61273-48H00-000 | BUFFER, CHAIN TOUCH DEFENSE | 0 шт. | — | |
|
| 7 | 61282-48H00-000 | SPACER, PIVOT CENTER | 0 шт. | — | |
|
| 8 | 09111-06072-000 | BOLT (6X17.8) | 0 шт. | — | |
|
| 9 | 09159-14019-000 | NUT | 0 шт. | — | |
|
| 10 | 09160-14067-000 | WASHER (14.5X29X2.3) | 0 шт. | — | |
|
| 11 | 09160-14068-000 | WASHER (14X34X1) | 0 шт. | — | |
|
| 12 | 61310-48H00-000 | CASE, CHAIN | 0 шт. | — | |
|
| 13 | 09111-06065-000 | BOLT (6X16) | 0 шт. | — | |
|
| 14 | 09139-06168-000 | SCREW (6X16) | 0 шт. | — | |
|
| 15 | 61410-48H00-000 | ADJUSTER, CHAIN | 0 шт. | — | |
|
| 16 | 61421-48H00-000 | PLATE, CHAIN ADJUSTER GUIDE | 0 шт. | — | |
|
| 17 | 08319-3108A-000 | NUT | 0 шт. | — | |
|
