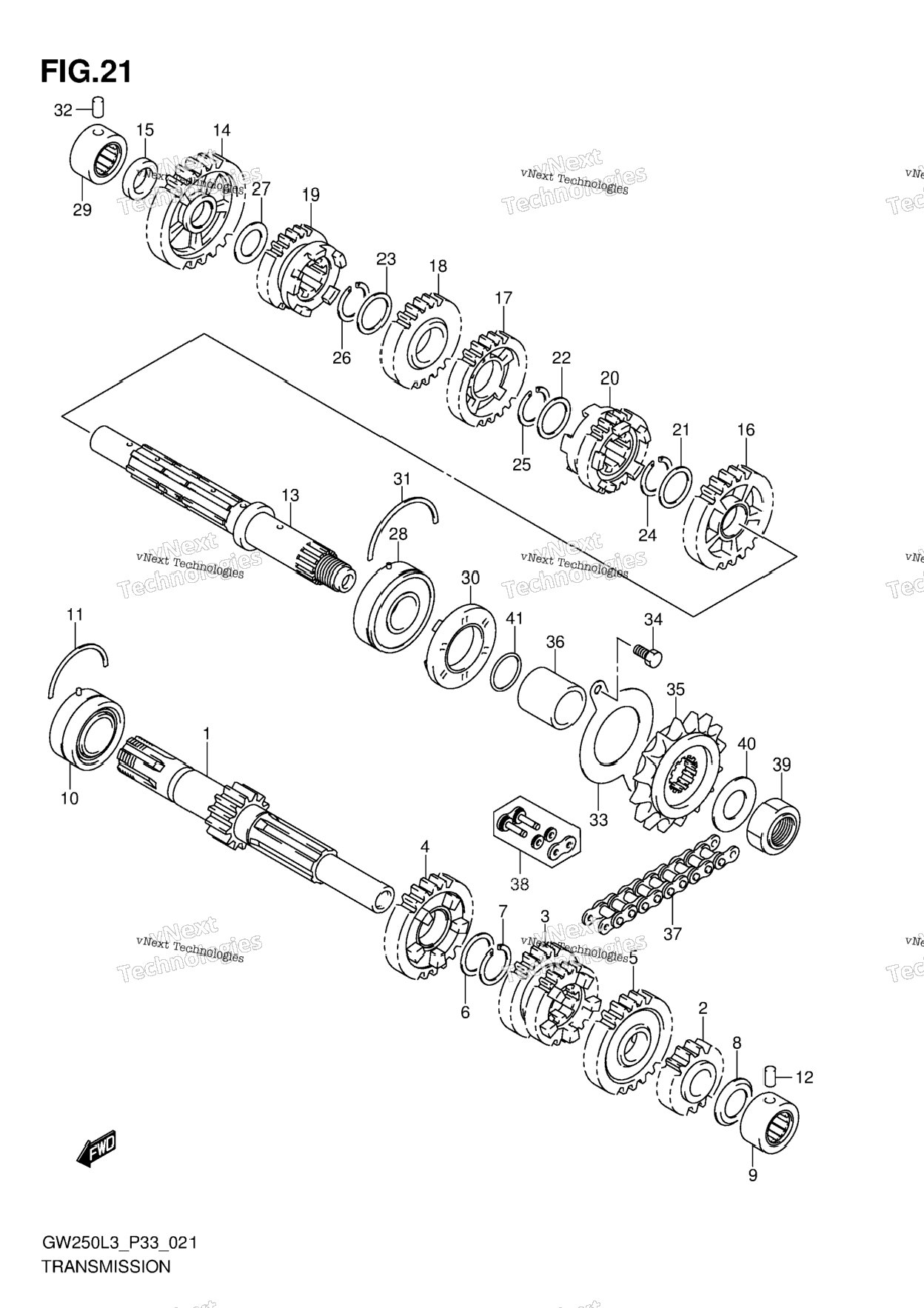

| 1 | 24120-48H00-000 | SHAFT, COUNTER (NT:12) | 0 шт. | — | |
|
| 2 | 24221-48H00-000 | GEAR, 2ND DRIVE (NT:17) | 0 шт. | — | |
|
| 3 | 24231-48H00-000 | GEAR, 3RD & 4TH DRIVE (NT:22/23) | 0 шт. | — | |
|
| 4 | 24251-48H00-000 | GEAR, 5TH DRIVE (NT:22) | 0 шт. | — | |
|
| 5 | 24260-48H00-000 | GEAR, 6TH DRIVE (NT:26) | 0 шт. | — | |
|
| 6 | 09181-22017-000 | WASHER (22X28X1) | 0 шт. | — | |
|
| 7 | 09380-22016-000 | CIRCLIP | 0 шт. | — | |
|
| 8 | 24271-48H00-000 | SEAL, SHAFT LH BEARING | 0 шт. | — | |
|
| 9 | 09263-17050-000 | BEARING (17X30X16) LH | 0 шт. | — | |
|
| 10 | 09267-22001-000 | BEARING (22X47X20.6) RH | 0 шт. | — | |
|
| 11 | 09390-47008-000 | C RING | 0 шт. | — | |
|
| 12 | 04221-06129-000 | PIN | 0 шт. | — | |
|
| 13 | 24130-48H00-000 | SHAFT, DRIVE | 0 шт. | — | |
|
| 14 | 24310-48H00-000 | GEAR, 1ST DRIVEN (NT:29) | 0 шт. | — | |
|
| 15 | 24313-48H00-000 | SPACER, 1ST DRIVEN GEAR | 0 шт. | — | |
|
| 16 | 24320-48H00-000 | GEAR, 2ND DRIVEN (NT:26) | 0 шт. | — | |
|
| 17 | 24331-48H00-000 | GEAR, 3RD DRIVEN (NT:26) | 0 шт. | — | |
|
| 18 | 24341-48H00-000 | GEAR, 4TH DRIVEN (NT:24) | 0 шт. | — | |
|
| 19 | 24351-48H00-000 | GEAR, 5TH DRIVEN (NT:20) | 0 шт. | — | |
|
| 20 | 24361-48H00-000 | GEAR, 6TH DRIVEN (NT:21) | 0 шт. | — | |
|
| 21 | 09181-22017-000 | WASHER (22X28X1) | 0 шт. | — | |
|
| 22 | 09181-22017-000 | WASHER (22X28X1) | 0 шт. | — | |
|
| 23 | 09181-22017-000 | WASHER (22X28X1) | 0 шт. | — | |
|
| 24 | 09380-22016-000 | CIRCLIP | 0 шт. | — | |
|
| 25 | 09380-22016-000 | CIRCLIP | 0 шт. | — | |
|
| 26 | 09380-22016-000 | CIRCLIP | 0 шт. | — | |
|
| 27 | 08211-17262-000 | WASHER | 0 шт. | — | |
|
| 28 | 09262-22039-000 | BEARING (22X56X16) LH | 0 шт. | — | |
|
| 29 | 09263-17050-000 | BEARING (17X30X16) RH | 0 шт. | — | |
|
| 30 | 09283-30L01-000 | OIL SEAL (30X56X9.5) | 0 шт. | — | |
|
| 31 | 09390-56002-000 | C RING | 0 шт. | — | |
|
| 32 | 04221-06129-000 | PIN | 0 шт. | — | |
|
| 33 | 24741-48H00-000 | RETAINER, DRIVE SHAFT OIL SEAL | 0 шт. | — | |
|
| 34 | 01500-0612A-000 | BOLT | 0 шт. | — | |
|
| 35 | 27510-48H10-000 | SPROCKET, ENGINE (NT:14) | 0 шт. | — | |
|
| 36 | 27531-48H00-000 | SPACER, ENGINE SPROCKET | 0 шт. | — | |
|
| 37 | 27600-48H10-116 | CHAIN ASSY, DRIVE (DID 520VF) | 0 шт. | — | |
|
| 38 | 27620-48H10-000 | JOINT SET, CHAIN OPT | 0 шт. | — | |
|
| 39 | 09140-18008-000 | NUT | 0 шт. | — | |
|
| 40 | 09181-22016-000 | WASHER (22X36X1) | 0 шт. | — | |
|
| 41 | 09280-21008-000 | O RING (D:2.5,ID:21) | 0 шт. | — | |
|
