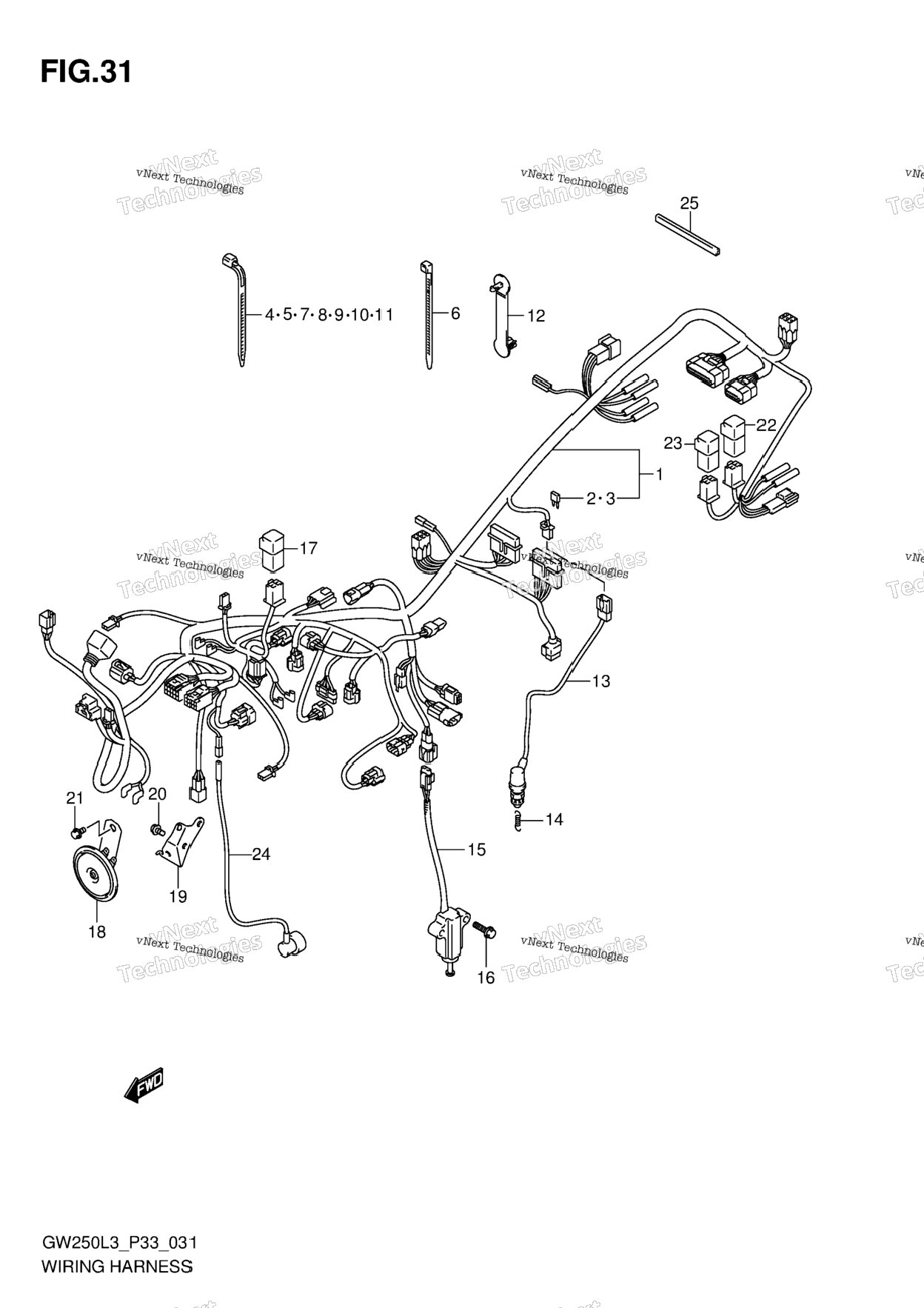

| 1 | 36610-48H60-000 | HARNESS, WIRING | 0 шт. | — | |
|
| 2 | 09481-10501-000 | .FUSE (10A) | 0 шт. | — | |
|
| 3 | 09481-15501-000 | .FUSE (15A) | 0 шт. | — | |
|
| 4 | 36990-32G10-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 5 | 36990-32G20-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 6 | 09407-25402-000 | CLAMP (L:248) | 0 шт. | — | |
|
| 7 | 09407-25401-000 | CLAMP (L:235) | 0 шт. | — | |
|
| 8 | 36990-48H00-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 9 | 36990-45H30-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 10 | 09407-19401-000 | CLAMP (L:190) | 0 шт. | — | |
|
| 11 | 36990-32G30-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 12 | 36990-48H10-000 | CLAMP, WIRING HARNESS | 0 шт. | — | |
|
| 13 | 37740-33G00-000 | SWITCH ASSY, STOP LAMP | 0 шт. | — | |
|
| 14 | 09443-06046-000 | SPRING | 0 шт. | — | |
|
| 15 | 37840-18J00-000 | SWITCH ASSY, SIDE STAND | 0 шт. | — | |
|
| 16 | 01550-0620B-000 | BOLT | 0 шт. | — | |
|
| 17 | 38740-33G00-000 | RELAY ASSY, SIDE STAND | 0 шт. | — | |
|
| 18 | 38500-48H01-000 | HORN ASSY | 0 шт. | — | |
|
| 19 | 38590-48H00-000 | PLATE, HORN | 0 шт. | — | |
|
| 20 | 01550-0812B-000 | BOLT | 0 шт. | — | |
|
| 21 | 01550-0612B-000 | .BOLT | 0 шт. | — | |
|
| 22 | 38740-33G00-000 | RELAY ASSY, FUEL PUMP | 0 шт. | — | |
|
| 23 | 38740-33G00-000 | RELAY ASSY, FAN MOTOR | 0 шт. | — | |
|
| 24 | 36851-48H01-000 | WIRE, OIL PRESSURE SWITCH LEAD | 0 шт. | — | |
|
| 25 | 36618-48H00-000 | PROTECTOR, WIRING HARNESS | 0 шт. | — | |
|
