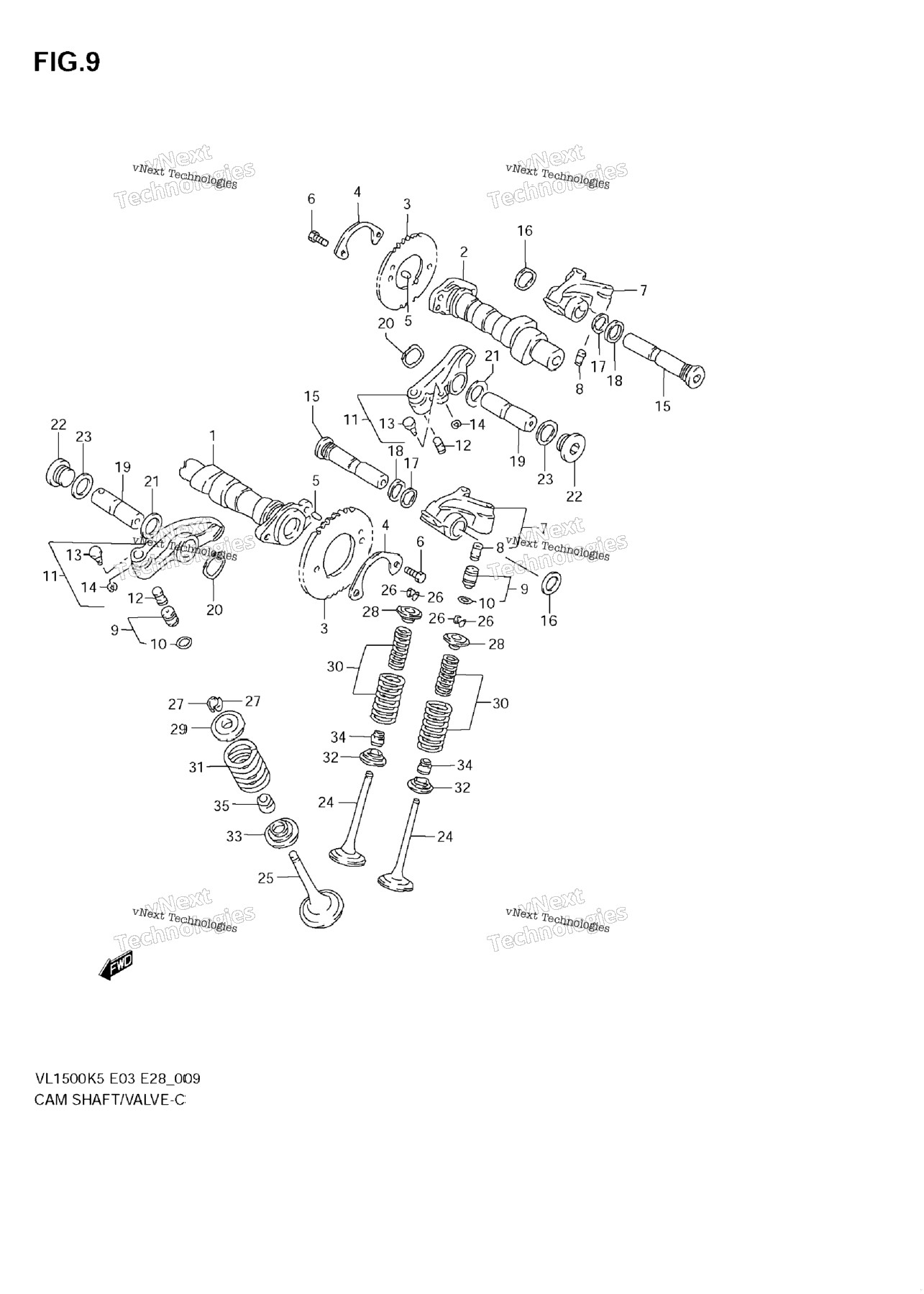

| 1 | 12711-10F10 | CAMSHAFT, FRONT | 0 шт. | — | |
|
| 2 | 12713-10F10 | CAMSHAFT, REAR | 0 шт. | — | |
|
| 3 | 12741-38B01 | SPROCKET, CAMSHAFT | 0 шт. | — | |
|
| 4 | 12747-44001 | WASHER | 2 шт. | — | |
|
| 5 | 09261-05005 | PIN (5X8) | 2 шт. | — | |
|
| 6 | 09111-06027 | BOLT (6X12.5) | 4 шт. | — | |
|
| 7 | 12840-38B01 | ARM, VALVE ROCKER IN Includes Item(s) 8 | 0 шт. | — | |
|
| 9 | 12860-38B01 | ADJUSTER, VALVE LASH Includes Item(s) 10 | 6 шт. | — | |
|
| 10 | 12864-38B01 | O RING | 6 шт. | — | |
|
| 11 | 12850-38B02 | ARM, VALVE ROCKER FRONT EX Includes Item(s) 12 - 14 | 0 шт. | — | |
|
| 12 | 12863-38B00 | CHAMBER, ADJUSTER | 4 шт. | — | |
|
| 12 | 12863-38B00 | CHAMBER, ADJUSTER | 2 шт. | — | |
|
| 13 | 12844-38B00 | PIN, DECOMP | 0 шт. | — | |
|
| 14 | 08332-1103A | E RING | 2 шт. | — | |
|
| 15 | 12861-38B00 | SHAFT, VALVE ROCKER ARM IN | 0 шт. | — | |
|
| 16 | 09164-14012 | WASHER, WAVE | 0 шт. | — | |
|
| 17 | 09181-14139 | WASHER | 2 шт. | — | |
|
| 18 | 09168-16003 | GASKET | 2 шт. | — | |
|
| 19 | 12871-38B00 | SHAFT, VALVE ROCKER ARM EX | 2 шт. | — | |
|
| 20 | 09164-16003 | WASHER, WAVE | 2 шт. | — | |
|
| 21 | 09160-16033 | WASHER | 2 шт. | — | |
|
| 22 | 09248-18004 | PLUG, ROCKER ARM SHAFT | 2 шт. | — | |
|
| 23 | 09168-18003 | GASKET | 2 шт. | — | |
|
| 24 | 12911-38B00 | VALVE, INTAKE | 4 шт. | — | |
|
| 25 | 12912-38B00 | VALVE, EXHAUST | 2 шт. | — | |
|
| 26 | 12932-24400 | COTTER,VALVE | 8 шт. | — | |
|
| 27 | 12932-82000 | COTTER, VALVE EX | 4 шт. | — | |
|
| 28 | 12931-33201 | RETAINER, SPRING IN | 4 шт. | — | |
|
| 29 | 12931-45001 | RETAINER, SPRING EX | 2 шт. | — | |
|
| 30 | 12920-06B00 | SPRING SET, VALVE IN | 4 шт. | — | |
|
| 31 | 12922-44110 | SPRING, VALVE EX | 0 шт. | — | |
|
| 32 | 12933-33201 | SEAT, SPRING IN | 4 шт. | — | |
|
| 33 | 12933-45001 | SEAT, SPRING EX | 2 шт. | — | |
|
| 34 | 09289-05015 | OIL SEAL, IN (5.5X11X8.2) | 4 шт. | — | |
|
| 35 | 09289-07002 | OIL SEAL, EX (7X14.4X9) | 2 шт. | — | |
|
