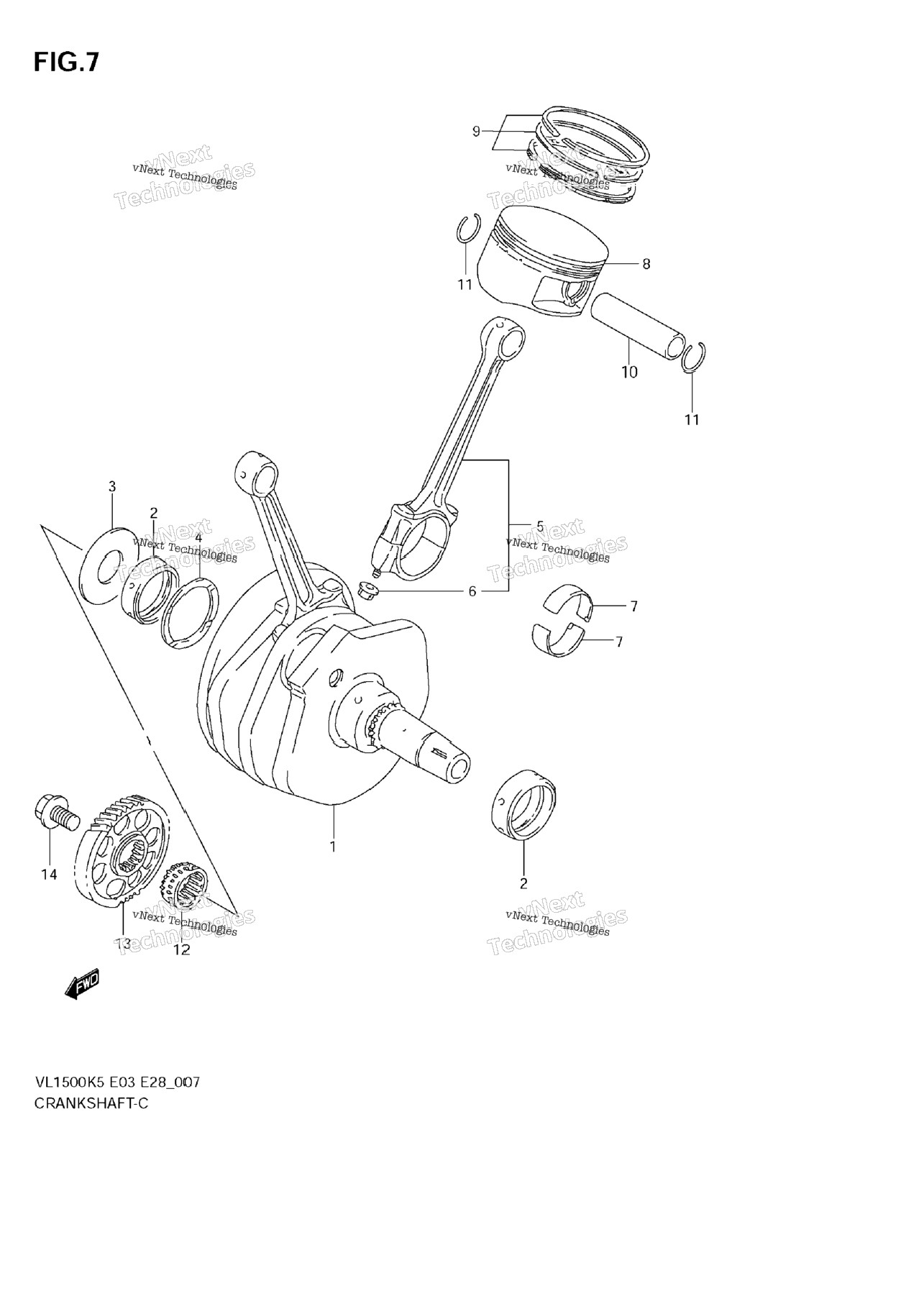

| 1 | 12000-10830 | CRANKSHAFT | 1 шт. | — | |
|
| 2 | 12229-38B00 | BEARING, CRANKSHAFT INCLUDED.CRANKCASE SET | 2 шт. | — | |
|
| 3 | 12652-38B00 | WASHER,CRANK THRUST | 0 шт. | — | |
|
| 4 | 12228-38B00-0J0 | BEARING, CRANK THRUST (NO.10) T:2.175 | 0 шт. | — | |
|
| 4 | 12228-38B00-0A0 | BEARING, CRANK THRUST (NO.1) T:1.950 | 0 шт. | — | |
|
| 4 | 12228-38B00-0B0 | BEARING, CRANK THRUST (NO.2) T:1.975 | 0 шт. | — | |
|
| 4 | 12228-38B00-0C0 | BEARING, CRANK THRUST (NO.3) T:2.000 | 0 шт. | — | |
|
| 4 | 12228-38B00-0D0 | BEARING, CRANK THRUST (NO.4) T:2.025 | 0 шт. | — | |
|
| 4 | 12228-38B00-0E0 | BEARING, CRANK THRUST (NO.5) T:2.050 | 0 шт. | — | |
|
| 4 | 12228-38B00-0F0 | BEARING, CRANK THRUST (NO.6) T:2.075 | 0 шт. | — | |
|
| 4 | 12228-38B00-0G0 | BEARING, CRANK THRUST (NO.7) T:2.100 | 0 шт. | — | |
|
| 4 | 12228-38B00-0H0 | BEARING, CRANK THRUST (NO.8) T:2.125 | 0 шт. | — | |
|
| 4 | 12228-38B00-0I0 | BEARING, CRANK THRUST (NO.9) T:2.150 | 0 шт. | — | |
|
| 5 | 12160-10F00 | ROD ASSY, CONNECTING Includes Item(s) 6 | 0 шт. | — | |
|
| 6 | 09159-09001 | NUT | 4 шт. | — | |
|
| 7 | 12164-38B01-0B0 | BEARING, CRANK PIN (BLACK) | 4 шт. | — | |
|
| 7 | 12164-38B01-0E0 | BEARING, CRANK PIN (BLUE) | 0 шт. | — | |
|
| 7 | 12164-38B01-0C0 | BEARING, CRANK PIN (BROWN) | 4 шт. | — | |
|
| 7 | 12164-38B01-0A0 | BEARING, CRANK PIN (GREEN) | 0 шт. | — | |
|
| 7 | 12164-38B01-0D0 | BEARING, CRANK PIN (YELLOW) | 4 шт. | — | |
|
| 8 | 12111-10F00-0F0 | PISTON | 2 шт. | — | |
|
| 9 | 12140-10F00 | RING SET, PISTON | 2 шт. | — | |
|
| 10 | 12151-14A01 | PIN, PISTON | 2 шт. | — | |
|
| 11 | 09381-23003 | CIRCLIP | 4 шт. | — | |
|
| 12 | 12731-38B00 | SPROCKET, CAM CHAIN DRIVE RH | 0 шт. | — | |
|
| 13 | 21111-10F00 | GEAR, PRIMARY DRIVE (NT:48) | 0 шт. | — | |
|
| 14 | 09103-14010 | BOLT (14X28) | 1 шт. | — | |
|
