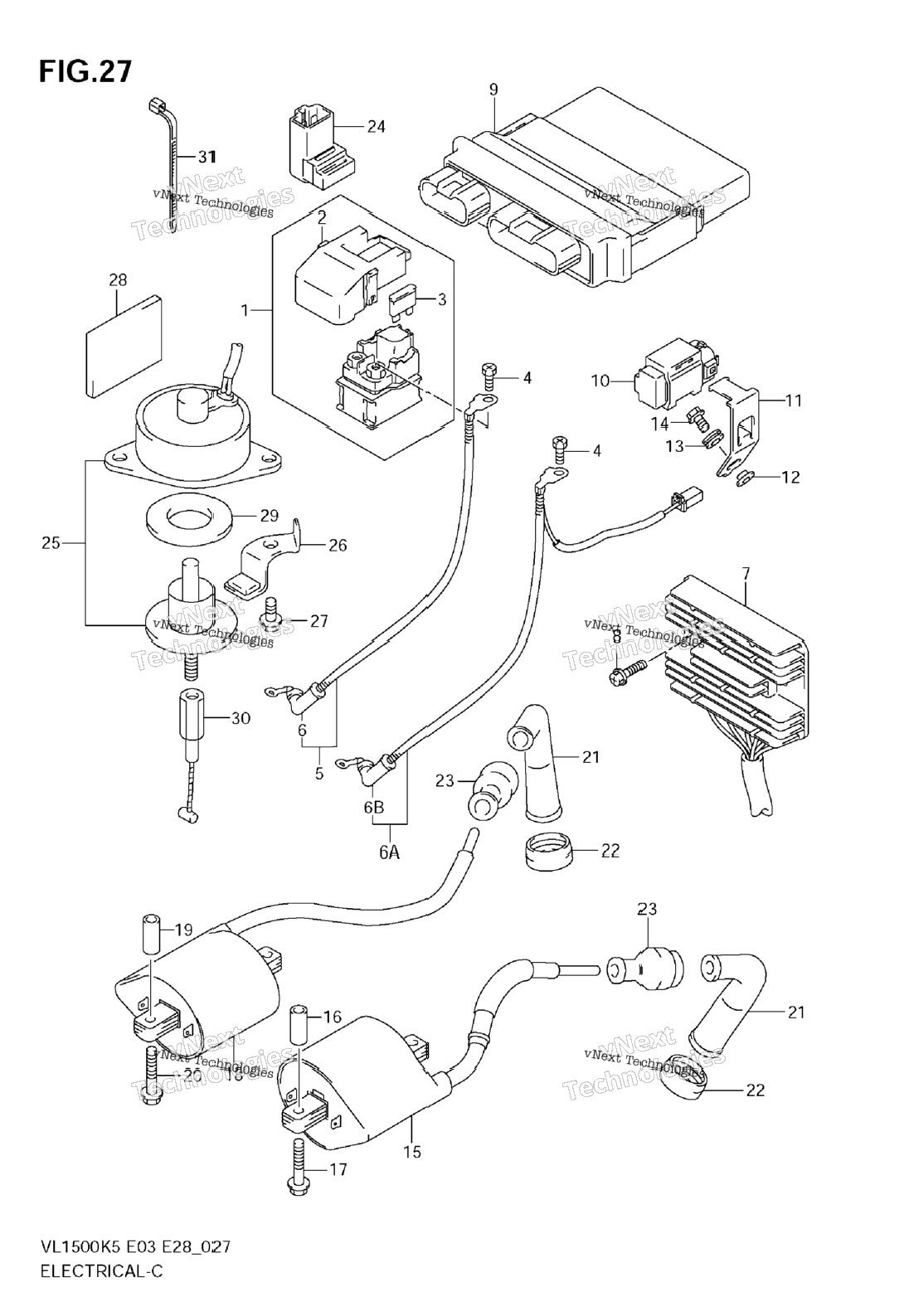

| 1 | 31800-21E20 | RELAY, STARTING MOTOR Includes Item(s) 2 - 3 | 1 шт. | — | |
|
| 2 | 31861-47E00 | COVER | 1 шт. | — | |
|
| 3 | 09481-30101 | FUSE, 30A | 2 шт. | — | |
|
| 4 | 09128-06013 | BOLT (6X8) | 2 шт. | — | |
|
| 5 | 33810-10F00 | WIRE, STARTER MOTOR LEAD MODEL K5/K6; Includes Item(s) 6 | 1 шт. | — | |
|
| 6 | 31861-48B10 | .CAP,STARTER MOTOR LEAD MODEL K5/K6 | 1 шт. | — | |
|
| 7 | 33810-10FA0 | WIRE, STARTER MOTOR LEAD MODEL K7/K8/K9; Includes Item(s) 6B | 1 шт. | — | |
|
| 8 | 31861-48B10 | .CAP,STARTER MOTOR LEAD MODEL K7/K8/K9 | 1 шт. | — | |
|
| 9 | 32800-41F10 | RECTIFIER, REGULATOR | 1 шт. | — | |
|
| 10 | 02162-0625B | BOLT | 2 шт. | — | |
|
| 11 | 32920-10F10 | CONTROL UNIT, FI MODEL K5 | 1 шт. | — | |
|
| 12 | 32920-10F30 | CONTROL UNIT, FI MODEL K6/K7/K8/K9 | 0 шт. | — | |
|
| 13 | 33960-06G10 | SENSOR ASSY,FUEL CUT | 1 шт. | — | |
|
| 14 | 33961-10F00 | BRACKET, FUEL CUT | 0 шт. | — | |
|
| 15 | 09180-06325 | SPACER | 1 шт. | — | |
|
| 16 | 09320-08051 | CUSHION | 1 шт. | — | |
|
| 17 | 01550-0616B | .BOLT | 1 шт. | — | |
|
| 18 | 33410-10F10 | COIL ASSY, IGNITION REAR | 1 шт. | — | |
|
| 19 | 09180-06195 | SPACER (6.4X10X18) | 2 шт. | — | |
|
| 20 | 01547-0540B | BOLT | 0 шт. | — | |
|
| 21 | 33420-10F10 | COIL ASSY, IGNITION FRONT | 1 шт. | — | |
|
| 22 | 09180-06195 | SPACER (6.4X10X18) | 2 шт. | — | |
|
| 23 | 01547-0540B | BOLT | 0 шт. | — | |
|
| 24 | 33510-38B00 | CAP, SPARK PLUG | 2 шт. | — | |
|
| 25 | 33541-47D00 | SEAL,SPARK PLUG | 2 шт. | — | |
|
| 26 | 33542-38B00 | SEAL, HIGH TENSION CORD | 2 шт. | — | |
|
| 27 | 38740-26E00 | RELAY ASSY, DECOMP | 1 шт. | — | |
|
| 28 | 33970-10F00 | SOLENOID ASSY, DECOMP | 1 шт. | — | |
|
| 29 | 33971-10F00 | STOPPER, DECOMP SOLENOID | 1 шт. | — | |
|
| 30 | 01550-0816B | BOLT | 2 шт. | — | |
|
| 31 | 33652-19B00 | CUSHION, DECOMP (8X27X3) | 1 шт. | — | |
|
| 32 | 33972-31D10 | CUSHION, DECOMP | 1 шт. | — | |
|
| 33 | 58900-10F00 | CABLE, DECOMP FRONT | 1 шт. | — | |
|
| 34 | 09407-25401 | CLAMP, HIGH TENSION (L:235) | 1 шт. | — | |
|
