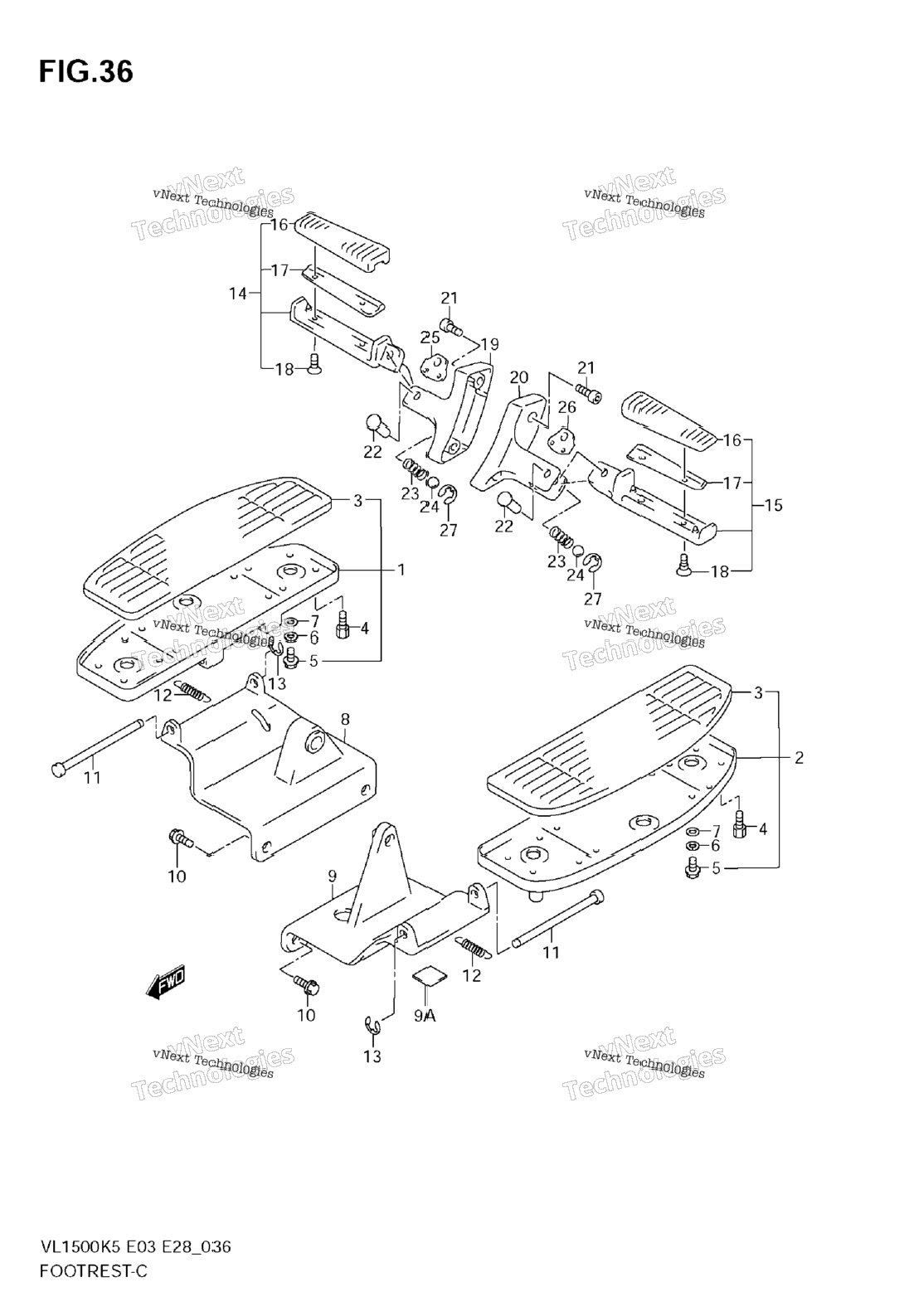

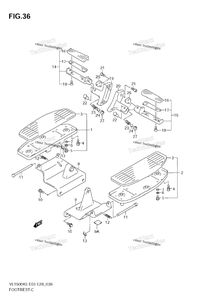

| 1 | 43501-10F10 | FOOTREST ASSY, FRONT RH | 1 шт. | — | |
|
| 2 | 43502-10F10 | FOOTREST ASSY, FRONT LH Includes Item(s) 3 - 7 | 1 шт. | — | |
|
| 3 | 43550-10F10 | RUBBER | 0 шт. | — | |
|
| 4 | 43576-07D01 | BOLT, BANK SENSOR | 2 шт. | — | |
|
| 5 | 01550-0610B | BOLT | 6 шт. | — | |
|
| 6 | 09160-06503 | WASHER MODEL K5/K6/K7 | 6 шт. | — | |
|
| 6 | 09160-06158 | WASHER MODEL K8/K9 | 6 шт. | — | |
|
| 7 | 09320-10016 | CUSHION MODEL K5/K6/K7 | 0 шт. | — | |
|
| 7 | 09320-10036 | CUSHION MODEL K8/K9 | 6 шт. | — | |
|
| 8 | 43510-10F00 | BRACKET, FRONT FOOTREST RH | 1 шт. | — | |
|
| 9 | 43520-10F00 | BRACKET, FRONT FOOTREST LH | 1 шт. | — | |
|
| 9A | 47512-10D00 | CUSHION (20X20X2) | 2 шт. | — | |
|
| 10 | 01580-1035B | BOLT | 4 шт. | — | |
|
| 11 | 43539-10F00 | PIN,FRONT FOOTREST | 2 шт. | — | |
|
| 12 | 09443-11033 | SPRING | 2 шт. | — | |
|
| 14 | 43600-38E00 | FOOTREST ASSY, PILLION RH | 1 шт. | — | |
|
| 15 | 43700-38E00 | FOOTREST ASSY, PILLION LH Includes Item(s) 16 - 18 | 1 шт. | — | |
|
| 16 | 43612-38A00 | RUBBER | 2 шт. | — | |
|
| 17 | 43632-38A00 | PLATE, RUBBER STOP | 2 шт. | — | |
|
| 18 | 09127-05017 | SCREW | 4 шт. | — | |
|
| 19 | 43811-10F10 | BRACKET, PILLION FOOTREST RH | 1 шт. | — | |
|
| 20 | 43821-10F10 | BRACKET, PILLION FOOTREST LH | 1 шт. | — | |
|
| 21 | 09106-08104 | BOLT, BRACKET MODEL K5/K6/K7 | 4 шт. | — | |
|
| 21 | 09106-08165 | BOLT, BRACKET MODEL K8/K9 | 4 шт. | — | |
|
| 22 | 09208-08010 | PIN | 2 шт. | — | |
|
| 23 | 09440-05005 | SPRING | 2 шт. | — | |
|
| 24 | 06111-07004 | BALL | 2 шт. | — | |
|
| 25 | 43816-10F00 | PLATE, RH | 1 шт. | — | |
|
| 26 | 43826-10F00 | PLATE, LH | 1 шт. | — | |
|
| 27 | 08332-1106B | E RING | 2 шт. | — | |
|
| 27 | 08332-1106B | E RING | 2 шт. | — | |
|
