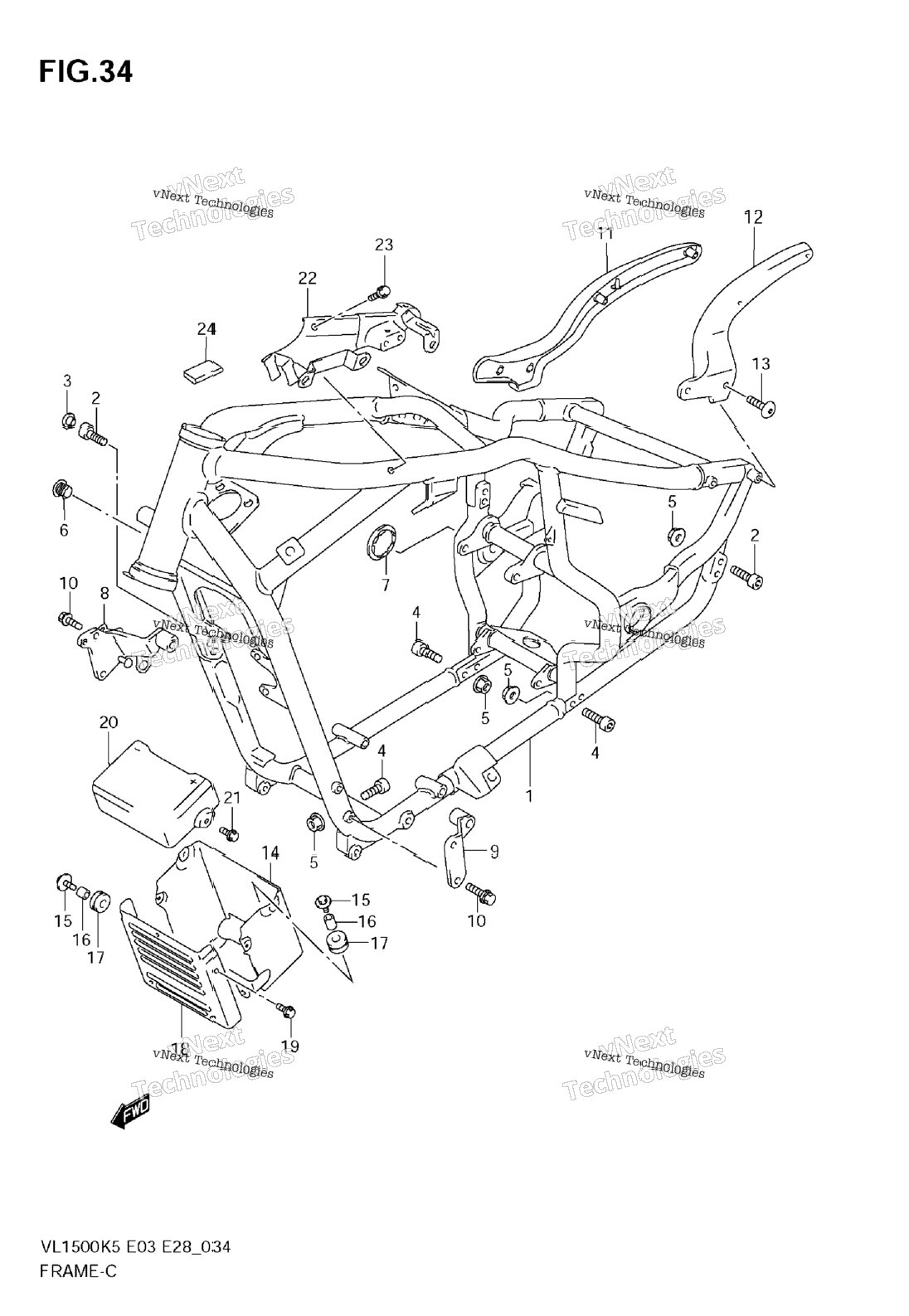

| 1 | 41100-10F40-019 | FRAME (BLACK) | 0 шт. | — | |
|
| 2 | 07130-1025B | BOLT | 6 шт. | — | |
|
| 3 | 09250-08012 | PLUG | 2 шт. | — | |
|
| 4 | 07130-1035B | BOLT | 10 шт. | — | |
|
| 5 | 08319-3110B | NUT | 10 шт. | — | |
|
| 6 | 41898-10F00 | CAP, FRAME HOLE | 2 шт. | — | |
|
| 7 | 41899-10F00 | CAP, PIVOT RH | 1 шт. | — | |
|
| 8 | 41910-10F10 | PLATE, ENGINE MOUNT RH | 0 шт. | — | |
|
| 9 | 41920-10F10 | PLATE, ENGINE MOUNT LH | 0 шт. | — | |
|
| 10 | 09112-08012 | BOLT MODEL K5/K6/K7 | 0 шт. | — | |
|
| 10 | 07120-0830B | BOLT MODEL K8/K9 | 0 шт. | — | |
|
| 11 | 41610-10F30 | GRIP, FRAME HANDLE RH | 0 шт. | — | |
|
| 12 | 41620-10F30 | GRIP, FRAME HANDLE LH | 0 шт. | — | |
|
| 13 | 09139-10003 | BOLT | 4 шт. | — | |
|
| 14 | 41540-10F01 | HOLDER, BATTERY | 1 шт. | — | |
|
| 15 | 09116-06168 | BOLT MODEL K5/K6/K7 | 3 шт. | — | |
|
| 15 | 09116-06213 | BOLT MODEL K8/K9 | 3 шт. | — | |
|
| 16 | 09180-06261 | SPACER | 3 шт. | — | |
|
| 17 | 09320-08021 | CUSHION | 3 шт. | — | |
|
| 18 | 41548-10F00 | HOLDER, BATTERY FRONT | 1 шт. | — | |
|
| 19 | 02142-0608B | SCREW | 4 шт. | — | |
|
| 20 | 41549-10F01 | COVER, UPPER MODEL K5 | 1 шт. | — | |
|
| 20 | 41549-10F02 | COVER, UPPER MODEL K6/K7/K8/K9 | 1 шт. | — | |
|
| 21 | 63161-43E00 | BOLT | 2 шт. | — | |
|
| 22 | 47410-10FA0 | HOLDER, ELECTRIC PARTS MODEL K5/K6 | 0 шт. | — | |
|
| 22 | 47410-10FA1 | HOLDER, ELECTRIC PARTS MODEL K7/K8/K9 | 0 шт. | — | |
|
| 23 | 01550-06123 | BOLT MODEL K5/K6/K7 | 2 шт. | — | |
|
| 23 | 01550-0616A | BOLT MODEL K8/K9 | 2 шт. | — | |
|
| 24 | 11179-45D00 | CUSHION | 0 шт. | — | |
|
