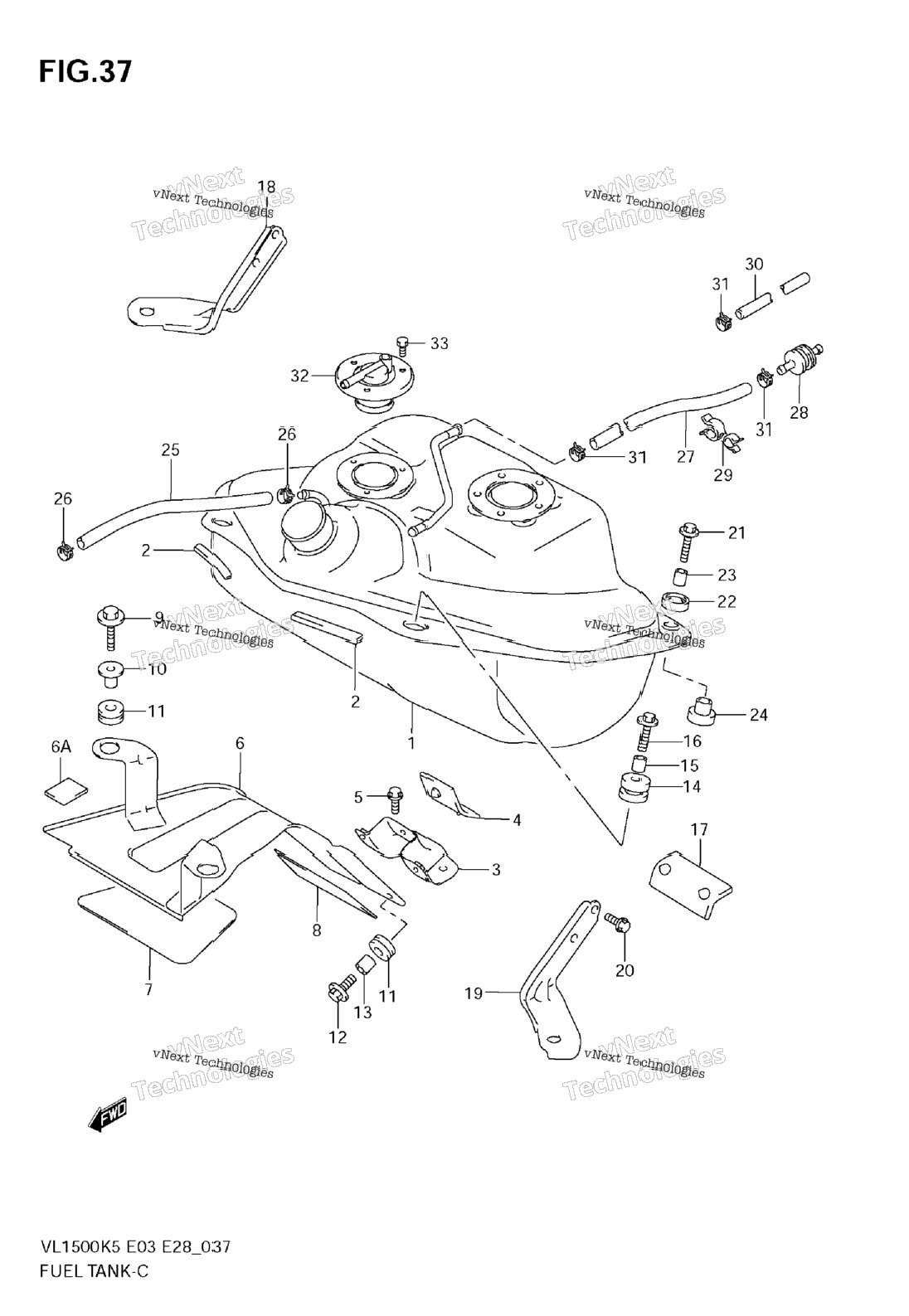

| 1 | 44110-10FA0 | TANK, FUEL | 1 шт. | — | |
|
| 2 | 68241-04X50-300 | MOLDING | 1 шт. | — | |
|
| 3 | 44130-10F00 | BRACKET, FRONT | 0 шт. | — | |
|
| 4 | 44500-10830 | CUSHION, BRACKET MODEL K5/K6 | 0 шт. | — | |
|
| 4 | 44511-10F10 | CUSHION, BRACKET MODEL K7/K8/K9 | 0 шт. | — | |
|
| 6 | 44270-10F02 | COVER, FUEL TANK FRONT | 0 шт. | — | |
|
| 6A | 61544-94500 | CUSHION | 1 шт. | — | |
|
| 7 | 44267-10F00 | SHIELD, COVER UPPER | 0 шт. | — | |
|
| 8 | 44268-10F00 | SHIELD, COVER LOWER | 0 шт. | — | |
|
| 9 | 09116-06171 | BOLT, COVER UPPER | 2 шт. | — | |
|
| 10 | 09169-06070 | WASHER | 2 шт. | — | |
|
| 11 | 09320-08001 | CUSHION | 4 шт. | — | |
|
| 12 | 09116-06115 | BOLT, COVER LOWER | 2 шт. | — | |
|
| 13 | 09180-06248 | SPACER | 2 шт. | — | |
|
| 14 | 44512-10F00 | CUSHION, FRONT | 0 шт. | — | |
|
| 15 | 09180-06351 | SPACER | 0 шт. | — | |
|
| 17 | 44541-10F00 | CUSHION, REAR CENTER | 0 шт. | — | |
|
| 18 | 44150-10F00 | BRACKET, REAR RH | 0 шт. | — | |
|
| 19 | 44160-10F00 | BRACKET, REAR LH | 0 шт. | — | |
|
| 20 | 01550-0610B | BOLT | 2 шт. | — | |
|
| 20 | 01550-0610B | BOLT, BRACKET | 4 шт. | — | |
|
| 21 | 09116-06172 | BOLT, FUEL TANK REAR MODEL K5/K6/K7 | 2 шт. | — | |
|
| 21 | 09116-06214 | BOLT, FUEL TANK REAR MODEL K8/K9 | 2 шт. | — | |
|
| 21 | 09116-06172 | BOLT MODEL K5/K6/K7 | 2 шт. | — | |
|
| 21 | 09116-06214 | BOLT MODEL K8/K9 | 2 шт. | — | |
|
| 22 | 09320-14022 | CUSHION, UPPER | 2 шт. | — | |
|
| 23 | 09180-06271 | SPACER | 2 шт. | — | |
|
| 24 | 09320-10020 | CUSHION, LOWER | 2 шт. | — | |
|
| 25 | 09355-11165-600 | HOSE, AIR VENT (L:600!190) | 1 шт. | — | |
|
| 26 | 09401-15404 | CLIP | 2 шт. | — | |
|
| 27 | 44434-10FB0 | HOSE, TANK & VALVE MODEL K8/K9 | 0 шт. | — | |
|
| 28 | 85451-75100 | VALVE, 2 WAY CHECK | 1 шт. | — | |
|
| 29 | 09408-00140 | CLAMP | 0 шт. | — | |
|
| 30 | 09355-54116-600 | HOSE, TANK & VALVE (L:600!150) MODEL K5/K6/K7 | 1 шт. | — | |
|
| 30 | 09355-54116-600 | HOSE, VALVE & CATCH (L:600!440) MODEL K5/K6/K7 | 1 шт. | — | |
|
| 30 | 44435-10FB0 | HOSE, VALVE & CATCH MODEL K8/K9 | 0 шт. | — | |
|
| 31 | 09401-10409 | CLIP (ID:10.5,H:8) | 4 шт. | — | |
|
| 32 | 89485-65D00 | VALVE, FUEL CUT MODEL K5/K6/K7 | 1 шт. | — | |
|
| 32 | 89480-52DA0 | VALVE,FUEL CUT MODEL K8/K9 | 1 шт. | — | |
|
| 33 | 09117-05003 | BOLT | 3 шт. | — | |
|
