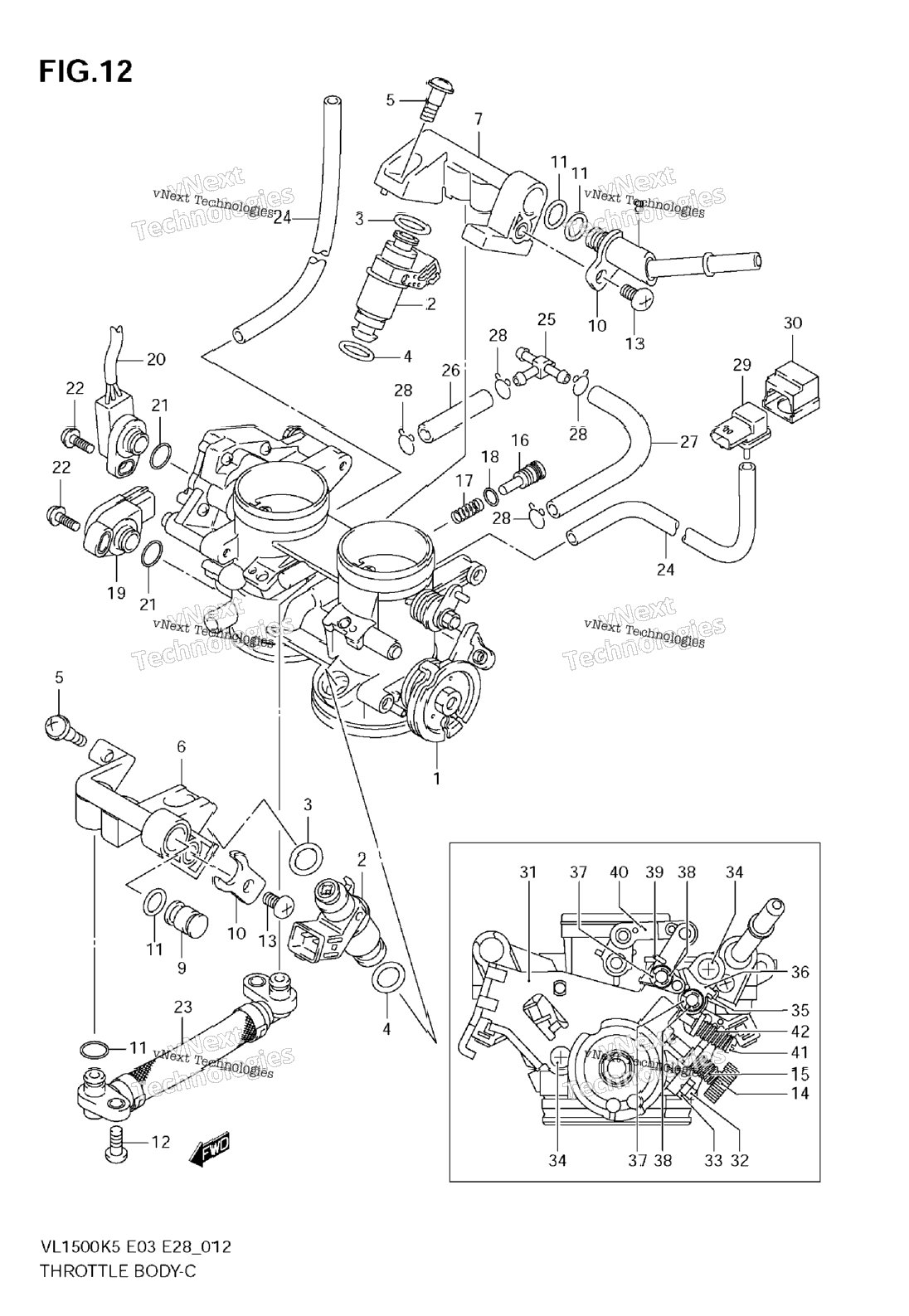

| 1 | 13401-10F00 | BODY, THROTTLE E3,E28 | 0 шт. | — | |
|
| 2 | 13401-10F10 | BODY, THROTTLE E33 | 0 шт. | — | |
|
| 3 | 15710-10G00 | INJECTOR ASSY | 2 шт. | — | |
|
| 4 | 15721-10G00 | O-RING | 2 шт. | — | |
|
| 5 | 15722-10G00 | O RING | 2 шт. | — | |
|
| 6 | 13602-34F50 | SCREW, THROTTLE COVER | 4 шт. | — | |
|
| 7 | 13471-10F00 | PIPE, FUEL | 1 шт. | — | |
|
| 8 | 13471-10F10 | PIPE, FUEL | 1 шт. | — | |
|
| 9 | 13473-10F00 | JOINT | 0 шт. | — | |
|
| 10 | 13476-10F00 | PLUG | 0 шт. | — | |
|
| 11 | 13428-10F00 | PLATE | 0 шт. | — | |
|
| 12 | 15721-24F00 | .O-RING | 5 шт. | — | |
|
| 13 | 13602-10F00 | SCREW | 0 шт. | — | |
|
| 14 | 13602-10F10 | SCREW | 2 шт. | — | |
|
| 15 | 13605-10F00 | SCREW, IDLE | 0 шт. | — | |
|
| 16 | 13268-35F00 | SPRING | 1 шт. | — | |
|
| 17 | 13279-10G00 | ADJUST SCREW | 0 шт. | — | |
|
| 18 | 13271-10G00 | SPRING | 0 шт. | — | |
|
| 19 | 13295-10G00 | O RING | 2 шт. | — | |
|
| 20 | 13580-18G00 | SENSOR ASSY, THROTTLE MAIN | 1 шт. | — | |
|
| 21 | 13580-40F30 | SENSOR ASSY, THROTTLE SUB | 1 шт. | — | |
|
| 22 | 13575-40F00 | O RING | 2 шт. | — | |
|
| 23 | 13605-40F00 | SCREW | 2 шт. | — | |
|
| 24 | 13680-10F00 | PIPE ASSY, FUEL | 1 шт. | — | |
|
| 25 | 13683-10F30 | HOSE | 0 шт. | — | |
|
| 26 | 13685-36E50 | JOINT E33 | 0 шт. | — | |
|
| 27 | 13683-10F21 | HOSE E33 | 0 шт. | — | |
|
| 28 | 13683-10F11 | HOSE E33 | 0 шт. | — | |
|
| 29 | 13693-24F00 | CLIP E33 | 4 шт. | — | |
|
| 30 | 18591-42F00 | SENSOR, PRESSURE | 2 шт. | — | |
|
| 31 | 18595-42F00 | HOLDER | 0 шт. | — | |
|
| 32 | 13565-10F10 | PLATE, STAY | 0 шт. | — | |
|
| 33 | 13267-10G00 | SCREW | 1 шт. | — | |
|
| 34 | 13661-10G00 | NUT | 0 шт. | — | |
|
| 35 | 13601-10G00 | SCREW | 0 шт. | — | |
|
| 36 | 13426-35F10 | SPRING | 0 шт. | — | |
|
| 37 | 13413-10F10 | LEVER, LINK | 0 шт. | — | |
|
| 38 | 13427-35F10 | WASHER | 2 шт. | — | |
|
| 39 | 13424-35F10 | E RING | 2 шт. | — | |
|
| 40 | 13426-40F00 | SPRING | 0 шт. | — | |
|
| 41 | 13420-40F20 | LEVER SET, LINK | 0 шт. | — | |
|
| 42 | 13602-10F20 | SCREW | 0 шт. | — | |
|
| 43 | 13543-24F00 | SPRING | 0 шт. | — | |
|
