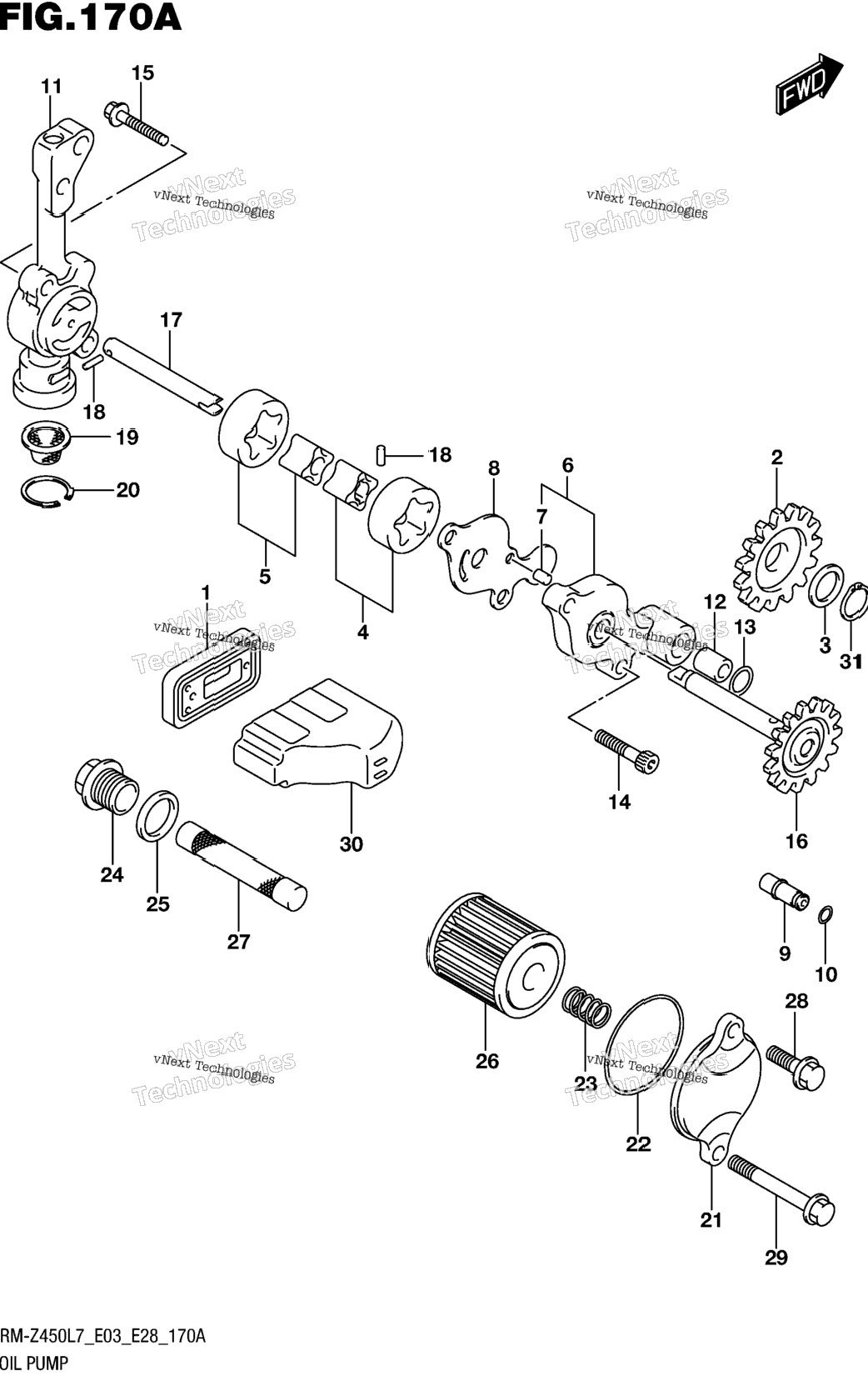

| 1 | 13150-28H10 | VALVE ASSY, OIL REED | 1 шт. | — | |
|
| 2 | 16321-28H00 | GEAR, OIL PUMP IDLE (NT:15) | 1 шт. | — | |
|
| 3 | 09181-12130 | SHIM (12X18X0.5) | 1 шт. | — | |
|
| 4 | 16410-35G00 | ROTOR SET, OIL PUMP NO.1 | 1 шт. | — | |
|
| 5 | 16410-45G00 | ROTOR SET, OIL PUMP NO.2 | 1 шт. | — | |
|
| 6 | 16430-28H00 | COVER, OIL PUMP NO.1 | 1 шт. | — | |
|
| 7 | 04221-04089 | .PIN | 1 шт. | — | |
|
| 8 | 16432-35G10 | PLATE, OIL PUMP NO.1 | 1 шт. | — | |
|
| 9 | 16440-28H00 | VALVE ASSY, OIL RELIEF | 1 шт. | — | |
|
| 10 | 09280-05007 | O-RING (D:1.2,ID:4.7) | 1 шт. | — | |
|
| 11 | 16450-28H10 | COVER, OIL PUMP NO.2 | 1 шт. | — | |
|
| 12 | 04211-09149 | PIN | 1 шт. | — | |
|
| 13 | 09280-09005 | .O RING (D:1.9,ID:8.6) | 1 шт. | — | |
|
| 14 | 07130-0520A | BOLT | 2 шт. | — | |
|
| 15 | 01547-0625A | BOLT | 1 шт. | — | |
|
| 16 | 16440-35G10 | SHAFT, OIL PUMP DRIVEN GEAR | 1 шт. | — | |
|
| 17 | 16443-28H00 | SHAFT, OIL PUMP NO.2 | 1 шт. | — | |
|
| 18 | 09261-02008 | PIN (2.5X11.8) | 2 шт. | — | |
|
| 19 | 16530-28H00 | STRAINER, OIL PUMP NO.2 | 1 шт. | — | |
|
| 20 | 09381-19003 | CIRCLIP | 1 шт. | — | |
|
| 21 | 16315-35G30 | CAP, ENGINE OIL FILTER OUTER | 1 шт. | — | |
|
| 22 | 09280-39001 | O RING (D:2,ID:38.5) | 1 шт. | — | |
|
| 23 | 09440-10038 | SPRING | 1 шт. | — | |
|
| 24 | 16316-10H01 | CAP, ENGINE OIL STRAINER | 1 шт. | — | |
|
| 25 | 09168-16002 | GASKET (16X22X2) | 1 шт. | — | |
|
| 26 | 16510-35G00 | FILTER, ENGINE OIL | 1 шт. | — | |
|
| 27 | 16520-10H10 | STRAINER, ENGINE OIL | 1 шт. | — | |
|
| 28 | 01547-0616A | BOLT | 1 шт. | — | |
|
| 29 | 01547-0640A | BOLT | 1 шт. | — | |
|
| 30 | 13158-28H00 | GUIDE, OIL REED VALVE | 1 шт. | — | |
|
| 31 | 08331-3112A | CIRCLIP | 1 шт. | — | |
|
