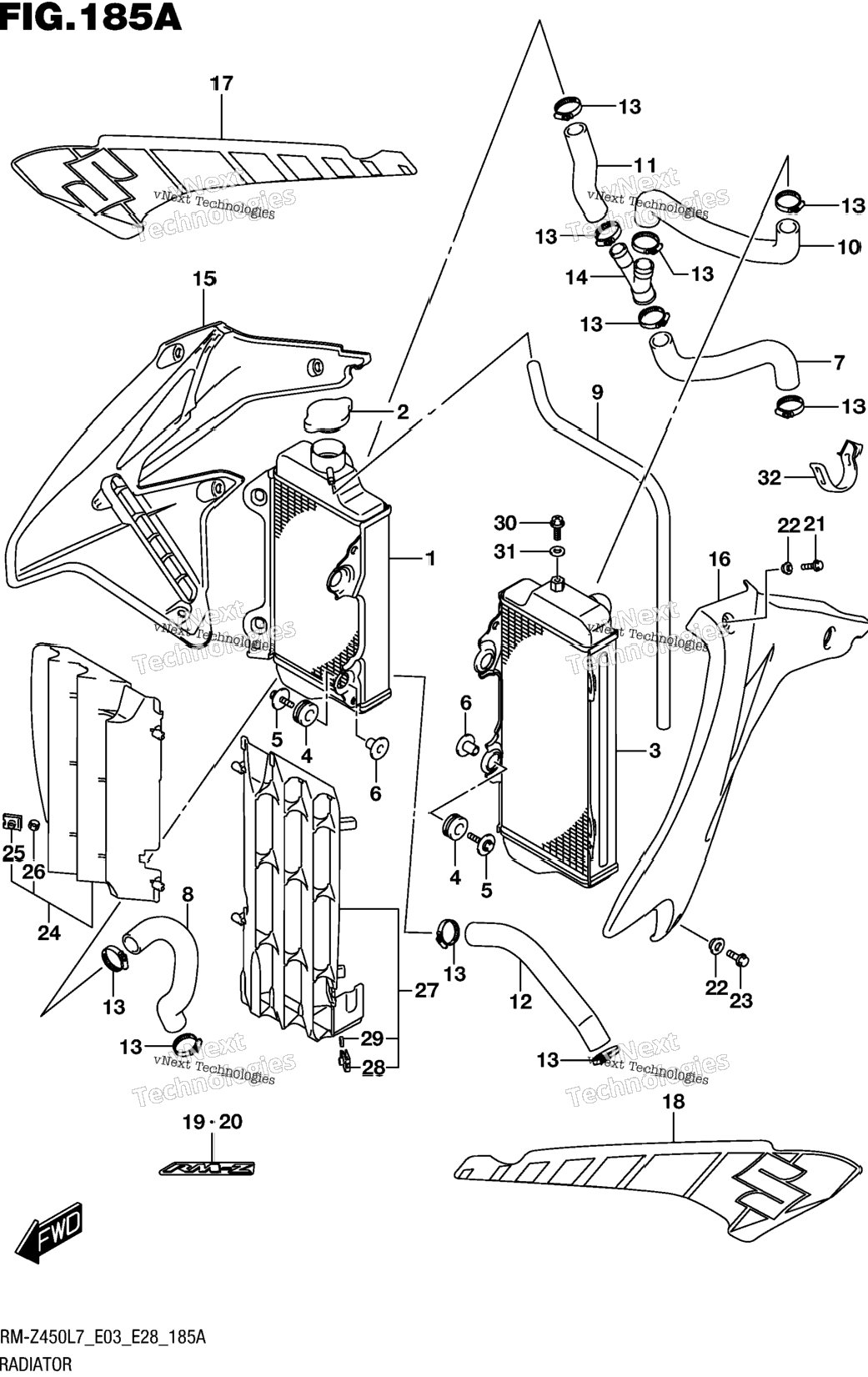

| 1 | 17710-28H21 | RADIATOR, RH | 1 шт. | — | |
|
| 2 | 17730-08J00 | CAP, RADIATOR | 1 шт. | — | |
|
| 3 | 17720-28H20 | RADIATOR, LH | 1 шт. | — | |
|
| 4 | 17787-19A00 | CUSHION RADIATOR LWR | 4 шт. | — | |
|
| 5 | 09116-06186 | BOLT (6X25) | 4 шт. | — | |
|
| 6 | 09180-06243 | SPACER (6.5X10.5X14.1) | 4 шт. | — | |
|
| 7 | 17851-28H10 | HOSE, RADIATOR INLET | 1 шт. | — | |
|
| 8 | 17852-28H10 | HOSE, RADIATOR OUTLET | 1 шт. | — | |
|
| 9 | 09351-50803-00A | HOSE (5X8X1000) L:1000->700 | 1 шт. | — | |
|
| 10 | 17853-28H20 | HOSE, RADIATOR JOINT UPPER | 0 шт. | — | |
|
| 11 | 17853-28H20 | NO.1 | 0 шт. | — | |
|
| 12 | 17854-28H10 | HOSE, RADIATOR JOINT UPPER | 0 шт. | — | |
|
| 13 | 17854-28H10 | NO.2 | 0 шт. | — | |
|
| 14 | 17855-28H00 | HOSE, JOINT LOWER | 1 шт. | — | |
|
| 15 | 09402-28513 | CLAMP | 10 шт. | — | |
|
| 16 | 17856-28H00 | JOINT, RADIATOR HOSE | 1 шт. | — | |
|
| 17 | 17761-28H02-GY8 | COVER, RADIATOR RH | 1 шт. | — | |
|
| 18 | 17761-28H02-GY8 | (YELLOW/BLACK) | 0 шт. | — | |
|
| 19 | 17762-28H02-GY8 | COVER, RADIATOR LH | 1 шт. | — | |
|
| 20 | 17762-28H02-GY8 | (YELLOW/BLACK) | 0 шт. | — | |
|
| 21 | 68111-28H00-BDT | TAPE, FUEL TANK COVER, RH | 1 шт. | — | |
|
| 22 | 68121-28H00-BDT | TAPE, FUEL TANK COVER, LH | 1 шт. | — | |
|
| 23 | 68666-28H00-GGM | EMBLEM, RADIATOR COVER | 1 шт. | — | |
|
| 24 | 68666-28H00-GGM | EMBLEM, RADIATOR COVER | 1 шт. | — | |
|
| 25 | 09116-06221 | BOLT (6X12) | 4 шт. | — | |
|
| 26 | 63191-28H00 | WASHER, FRONT FENDER | 4 шт. | — | |
|
| 27 | 01547-0616A | BOLT | 4 шт. | — | |
|
| 28 | 17801-28H10 | LOUVER, RADIATOR RH | 1 шт. | — | |
|
| 29 | 09148-06017 | .NUT | 1 шт. | — | |
|
| 30 | 09180-06129 | .SPACER (6.2X10X2.2) | 1 шт. | — | |
|
| 31 | 17802-28H10 | LOUVER, RADIATOR LH | 1 шт. | — | |
|
| 32 | 09148-06017 | .NUT | 1 шт. | — | |
|
| 33 | 09180-06129 | .SPACER (6.2X10X2.2) | 1 шт. | — | |
|
| 34 | 17568-50F00 | BOLT, AIR RELEASE | 1 шт. | — | |
|
| 35 | 09168-06026 | GASKET (6.4X11.5X0.8) | 1 шт. | — | |
|
| 36 | 17858-28H00 | CLAMP, RADIATOR HOSE | 1 шт. | — | |
|
