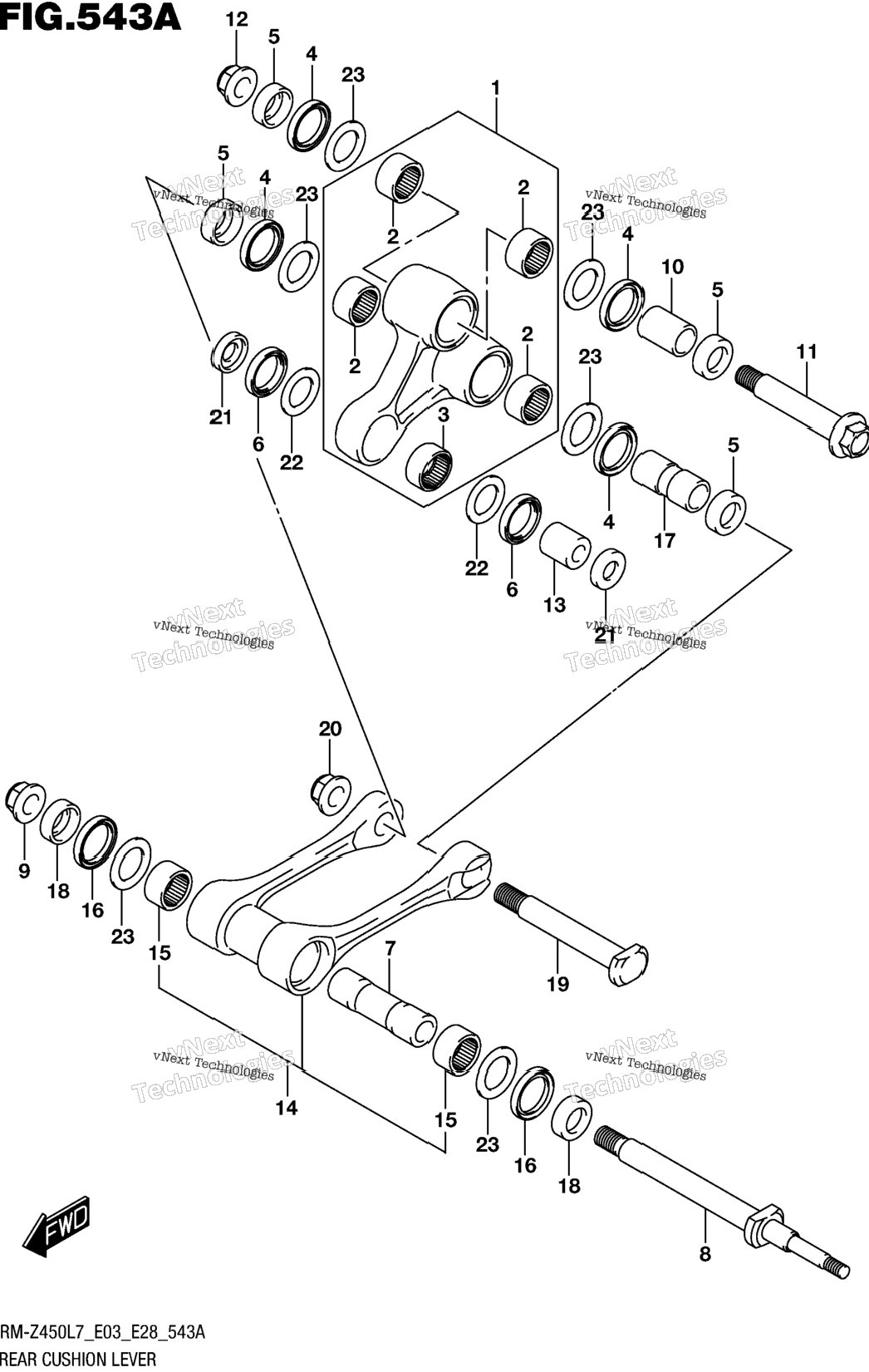

| 1 | 62600-28880 | LEVER SET, REAR CUSHION | 1 шт. | — | |
|
| 2 | 09263-20090 | .BEARING (20X26X14) | 4 шт. | — | |
|
| 3 | 09263-16033 | .BEARING (16X22X12) | 1 шт. | — | |
|
| 4 | 09285-24001 | OIL SEAL (24X31X5) | 4 шт. | — | |
|
| 5 | 62647-28H20 | SPACER, RR CUSHION LEVER SIDE | 4 шт. | — | |
|
| 6 | 09284-22003 | OIL SEAL (22X28X4) | 2 шт. | — | |
|
| 7 | 62317-28H20 | SPACER, REAR CUSHION ROD | 1 шт. | — | |
|
| 8 | 62621-28H10 | BOLT, REAR CUSHION ROD | 1 шт. | — | |
|
| 9 | 09159-12056 | NUT | 1 шт. | — | |
|
| 10 | 62648-28H20 | SPACER, LEVER UPPER | 1 шт. | — | |
|
| 11 | 62658-28H00 | BOLT, LEVER UPPER | 1 шт. | — | |
|
| 12 | 09159-12056 | NUT | 1 шт. | — | |
|
| 13 | 62684-28H10 | SPACER, LEVER FRONT | 1 шт. | — | |
|
| 14 | 62601-28830 | ROD SET, REAR CUSHION | 1 шт. | — | |
|
| 15 | 09263-20090 | .BEARING (20X26X14) | 2 шт. | — | |
|
| 16 | 09285-24001 | OIL SEAL (24X31X5) | 2 шт. | — | |
|
| 17 | 62646-28H20 | SPACER, LEVER LOWER | 1 шт. | — | |
|
| 18 | 62647-28H20 | SPACER, RR CUSHION LEVER SIDE | 2 шт. | — | |
|
| 19 | 62657-28H00 | BOLT, LEVER LOWER | 1 шт. | — | |
|
| 20 | 09159-12056 | NUT | 1 шт. | — | |
|
| 21 | 62686-28H10 | SPACER, LEVER FRONT SIDE | 2 шт. | — | |
|
| 22 | 09181-16214 | SHIM (16X28X0.5) | 2 шт. | — | |
|
| 23 | 08211-20301 | WASHER | 6 шт. | — | |
|
