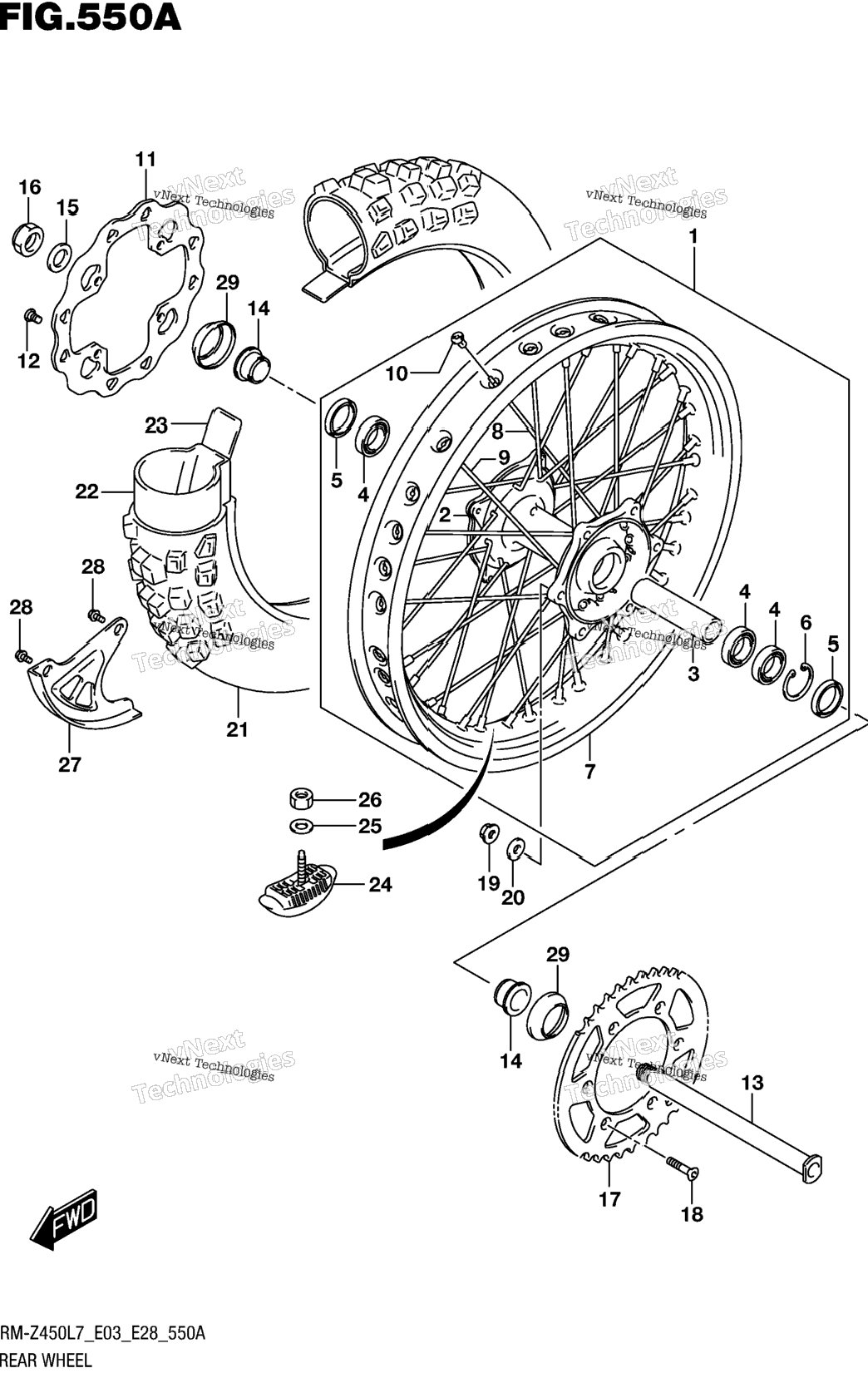

| 1 | 64100-28H10 | WHEEL ASSY, REAR | 1 шт. | — | |
|
| 2 | 64111-35G20 | .HUB, REAR | 1 шт. | — | |
|
| 3 | 64731-35G01 | .SPACER, REAR HUB BEARING | 1 шт. | — | |
|
| 4 | 09262-25139 | .BEARING (25X42X9) | 3 шт. | — | |
|
| 5 | 09283-32045 | .OIL SEAL (32X43X7) | 2 шт. | — | |
|
| 6 | 08331-41429 | .CIRCLIP | 1 шт. | — | |
|
| 7 | 65311-35G20 | .RIM, REAR WHEEL (19X2.15) | 1 шт. | — | |
|
| 8 | 65321-35G10 | .SPOKE, REAR WHEEL INNER | 18 шт. | — | |
|
| 9 | 65322-35G10 | .SPOKE, REAR WHEEL OUTER | 18 шт. | — | |
|
| 10 | 65325-35G10 | .NIPPLE, REAR WHEEL | 36 шт. | — | |
|
| 11 | 69211-28H10 | DISC, REAR BRAKE | 1 шт. | — | |
|
| 12 | 09139-08022 | SCREW (8X15) | 4 шт. | — | |
|
| 13 | 64711-35G10 | AXLE, REAR | 1 шт. | — | |
|
| 14 | 64751-28H10 | SPACER | 2 шт. | — | |
|
| 15 | 09160-22081 | WASHER (22X35X2) | 1 шт. | — | |
|
| 16 | 64721-28H00 | NUT, REAR AXLE | 1 шт. | — | |
|
| 17 | 64511-36E00 | SPROCKET, REAR (NT:50) | 1 шт. | — | |
|
| 18 | 64511-37E00 | SPROCKET, REAR (NT:48) OPT | 1 шт. | — | |
|
| 19 | 64511-40261 | SPROCKET, REAR (NT:51) OPT | 1 шт. | — | |
|
| 20 | 64511-28E00 | SPROCKET, REAR (NT:49) OPT | 1 шт. | — | |
|
| 21 | 09120-08017 | BOLT (8X28) | 6 шт. | — | |
|
| 22 | 09159-08133 | NUT | 6 шт. | — | |
|
| 23 | 09160-08082 | WASHER (8.5X16X1.2) | 6 шт. | — | |
|
| 24 | 65110-28H00 | TIRE, REAR (110/90-19 62M) M404 | 0 шт. | — | |
|
| 25 | 65110-28H00 | TIRE, REAR (110/90-19 62M) (BRIDGESTONE) BRIDGESTONE | 0 шт. | — | |
|
| 26 | 65200-35G01 | TUBE ASSY, WHEEL INNER | 1 шт. | — | |
|
| 27 | 65261-35G01 | PROTECTOR, INNER TUBE | 1 шт. | — | |
|
| 28 | 65270-28E00 | STOPPER, BEAD (2.15) | 1 шт. | — | |
|
| 29 | 08322-0108A | WASHER | 1 шт. | — | |
|
| 30 | 08310-0008A | NUT | 1 шт. | — | |
|
| 31 | 69231-37F20 | COVER, REAR DISC | 1 шт. | — | |
|
| 32 | 09116-06197 | BOLT (6X12) | 2 шт. | — | |
|
| 33 | 64752-28H00 | COVER, REAR AXLE SPACER | 2 шт. | — | |
|
