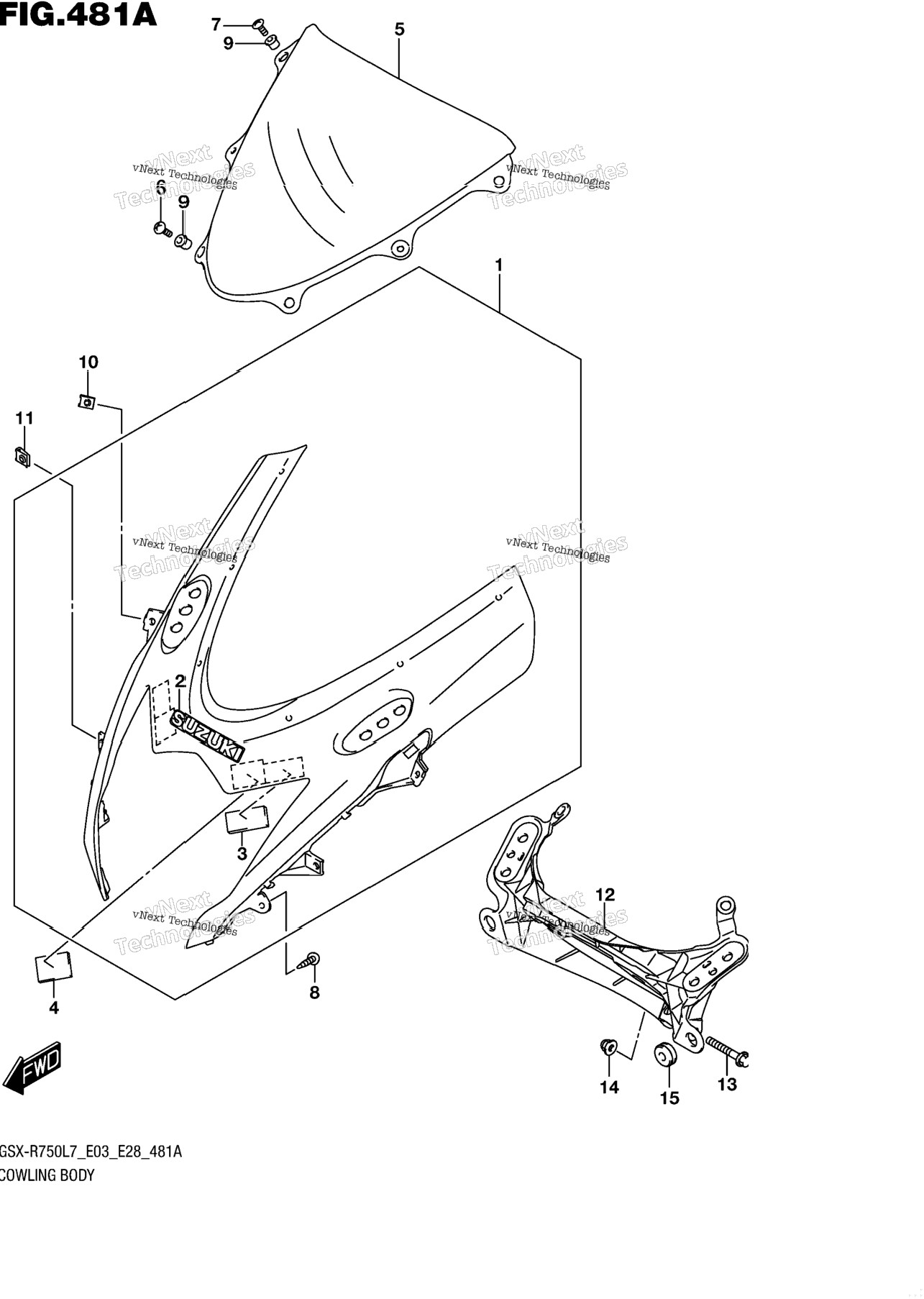

| 1-1 | 94410-14J10-6CX | BODY, COWLING (BLUE) FOR YSF | 1 шт. | — | |
|
| 1-2 | 94410-14J10-AJX | BODY, COWLING (WHITE) FOR YWW | 1 шт. | — | |
|
| 1-3 | 94410-14J10-YVB | BODY, COWLING (BLACK) FOR KGK | 1 шт. | — | |
|
| 2-1 | 68641-19F00-YWW | .EMBLEM "SUZUKI" (WHITE) FOR 6CX | 1 шт. | — | |
|
| 2-2 | 68641-19F00-YHL | .EMBLEM "SUZUKI" (RED) FOR AJX | 1 шт. | — | |
|
| 2-3 | 68641-19F00-17U | .EMBLEM "SUZUKI" (GRAY) FOR YVB | 1 шт. | — | |
|
| 3 | 92146-14J00 | .CUSHION | 2 шт. | — | |
|
| 4 | 44572-02F01 | FASTENER | 2 шт. | — | |
|
| 5 | 94611-14J00 | WINDSCREEN | 1 шт. | — | |
|
| 6 | 09125-05133 | SCREW (5X18) | 4 шт. | — | |
|
| 7 | 09125-05134 | SCREW (5X15) | 2 шт. | — | |
|
| 8 | 03541-0516A | SCREW | 2 шт. | — | |
|
| 9 | 09159-05019 | NUT | 6 шт. | — | |
|
| 10 | 09148-05052 | NUT (M5) | 2 шт. | — | |
|
| 11 | 09148-05047 | NUT (M5) | 2 шт. | — | |
|
| 12 | 94511-14J00 | BRACE,COWLING | 1 шт. | — | |
|
| 13 | 09103-08207 | BOLT (8X45) | 2 шт. | — | |
|
| 14 | 08313-2008A | NUT | 2 шт. | — | |
|
| 15 | 09320-08047 | CUSHION | 2 шт. | — | |
|
| 16 | SPECIAL NOTE | COLOR : | 0 шт. | — | |
|
| 16 | SPECIAL NOTE | KGK=YMF(YELLOW),YVB(BLACK) | 0 шт. | — | |
|
