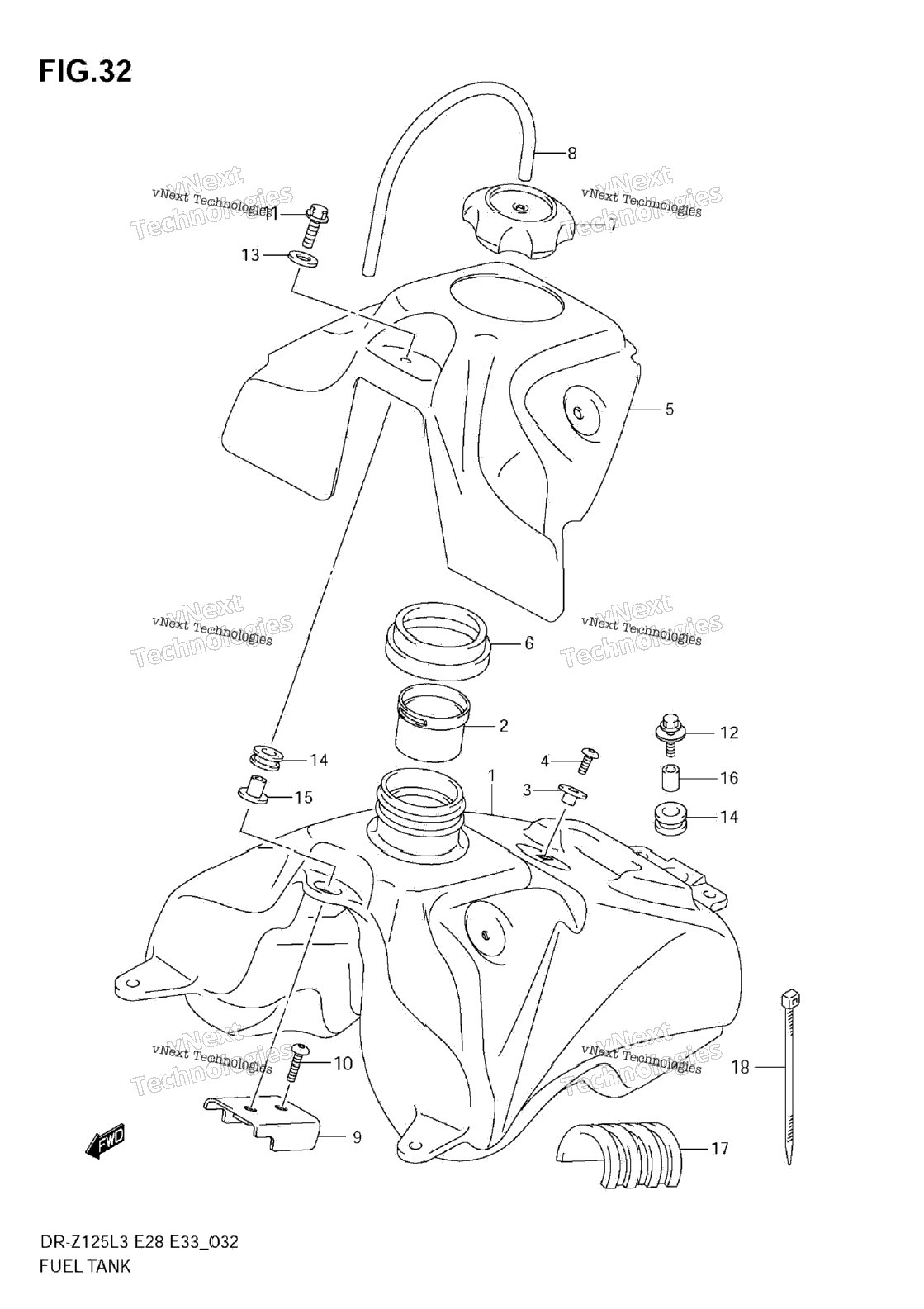

| 1 | 44110-08GA0 | TANK, FUEL | 0 шт. | — | |
|
| 2 | 44199-19A00 | TUBE FILLER, INLET | 1 шт. | — | |
|
| 3 | 44132-27C01 | HOOK,SEAT FRONT | 1 шт. | — | |
|
| 4 | 09139-06148 | BOLT (6X20) | 1 шт. | — | |
|
| 5 | 44291-08GA0 | COVER, FUEL TANK UPPER | 0 шт. | — | |
|
| 6 | 44261-14H00 | RUBBER, INLET | 1 шт. | — | |
|
| 7 | 44200-29F00 | CAP ASSY, FUEL TANK | 1 шт. | — | |
|
| 8 | 09352-50823-600 | HOSE, BREATHER L:600->360 | 1 шт. | — | |
|
| 9 | 44521-08GA0 | BRACKET, FUEL TANK UPPER | 1 шт. | — | |
|
| 10 | 09139-06172 | SCREW (6X10) | 1 шт. | — | |
|
| 11 | 01547-0630A | BOLT, FRONT | 1 шт. | — | |
|
| 12 | 09116-06186 | BOLT (6X25) | 1 шт. | — | |
|
| 13 | 09160-06134 | WASHER (6.5X24X1.6) | 1 шт. | — | |
|
| 14 | 44511-08G10 | CUSHION, FUEL TANK | 2 шт. | — | |
|
| 15 | 44512-23H00 | WASHER, FUEL TANK FRONT | 0 шт. | — | |
|
| 16 | 09180-06293 | SPACER (6.5X10X14) | 1 шт. | — | |
|
| 17 | 44541-13E10 | CUSHION, FUEL TANK | 2 шт. | — | |
|
| 18 | 09407-30402 | CLAMP (L:300) | 2 шт. | — | |
|
