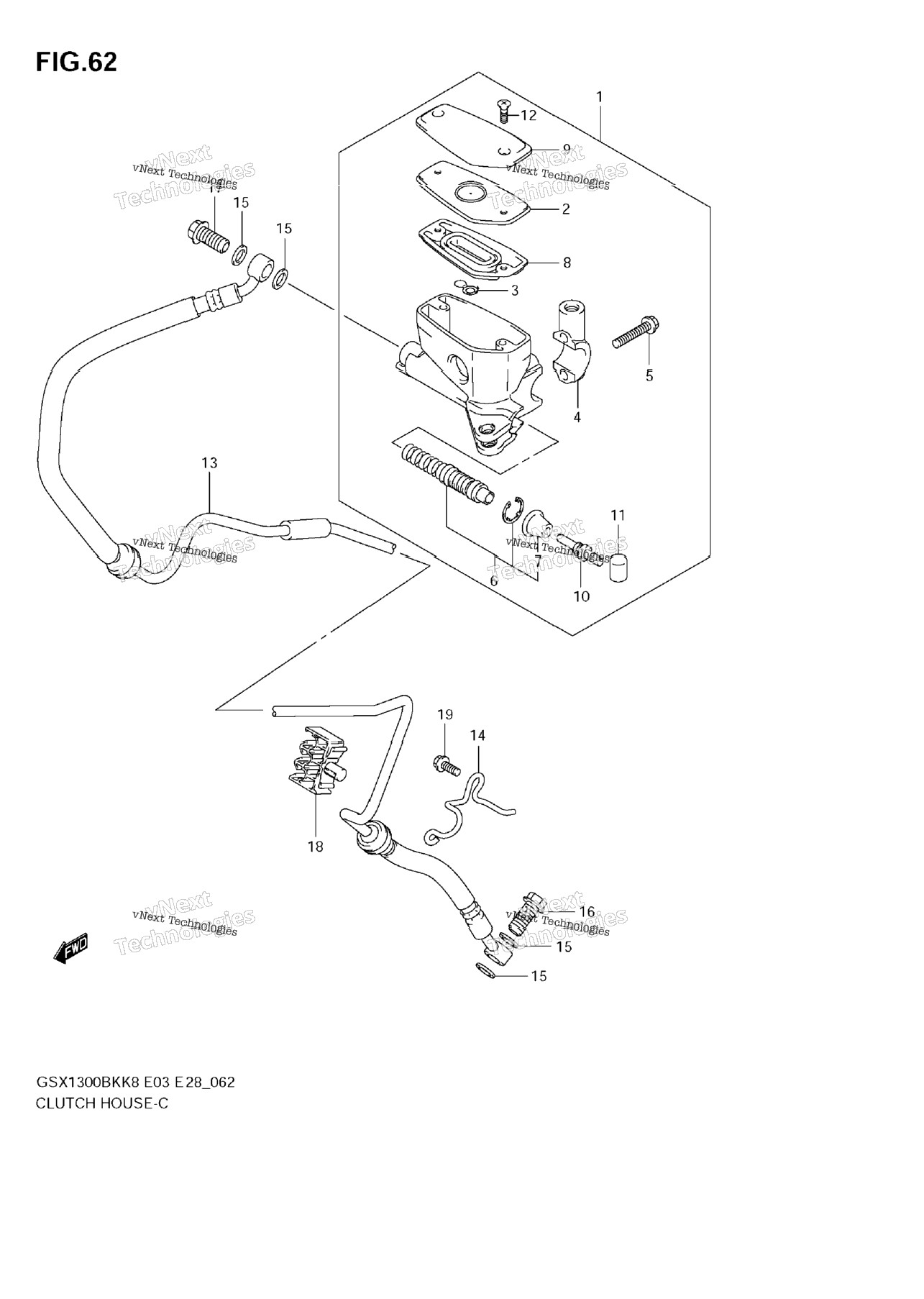

| 1 | 59800-23H00 | CYLINDER ASSY, CLUTCH MASTER Includes Item(s) 2 - 12 | 1 шт. | — | |
|
| 2 | 57438-23H00 | .PLATE | 0 шт. | — | |
|
| 3 | 59664-32F00 | PROTECTOR | 1 шт. | — | |
|
| 4 | 59671-32F00 | HOLDER | 1 шт. | — | |
|
| 5 | 59675-02FA0 | BOLT (6X22) | 2 шт. | — | |
|
| 6 | 59800-23810 | PISTON & CUP SET | 1 шт. | — | |
|
| 7 | 59866-23H00 | BOOT | 1 шт. | — | |
|
| 8 | 59867-23H00 | .DIAPHRAGM | 1 шт. | — | |
|
| 9 | 59869-23H00 | CAP | 1 шт. | — | |
|
| 10 | 59871-23H00 | PUSH ROD | 1 шт. | — | |
|
| 11 | 59892-08A00 | BUSH | 1 шт. | — | |
|
| 12 | 69689-49300 | .SCREW | 2 шт. | — | |
|
| 13 | 59910-23H00 | HOSE, CLUTCH | 0 шт. | — | |
|
| 14 | 59921-23H00 | CLAMP, CLUTCH HOSE E3,E28 GSX1300BKK8/K9 | 0 шт. | — | |
|
| 15 | 09161-10009 | WASHER, CLUTCH HOSE | 4 шт. | — | |
|
| 17 | 09360-10062 | BOLT, CLUTCH HOSE | 1 шт. | — | |
|
| 17 | 09360-10062 | BOLT, CLUTCH HOSE | 1 шт. | — | |
|
| 18 | 09403-07337 | CLAMP, PIPE GSX1300BKK8/K9 | 0 шт. | — | |
|
| 19 | 01550-0812A | BOLT, CLUTCH HOSE CLAMP E3,E28 GSX1300BKK8/K9 | 1 шт. | — | |
|
