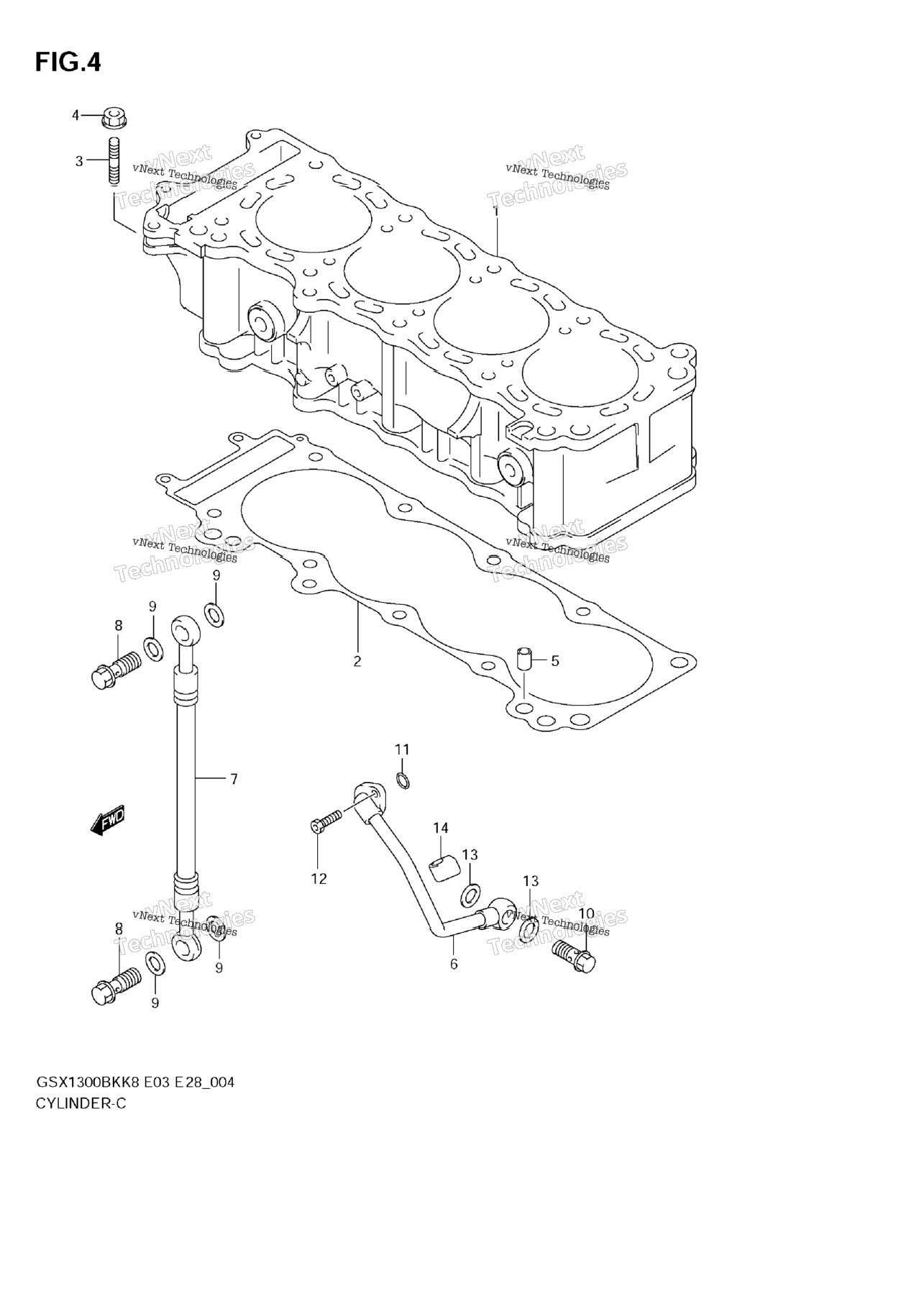

| 1 | 11210-23H00-0F0 | CYLINDER | 0 шт. | — | |
|
| 2 | 11241-15H00 | GASKET | 1 шт. | — | |
|
| 3 | 01421-0625B | BOLT,STUD | 2 шт. | — | |
|
| 4 | 08316-1006B | NUT | 2 шт. | — | |
|
| 5 | 04211-11169 | .PIN | 2 шт. | — | |
|
| 6 | 11280-24F00 | PIPE,CRANKCASE OIL | 1 шт. | — | |
|
| 7 | 11282-24F00 | HOSE, OIL | 1 шт. | — | |
|
| 8 | 09360-10062 | BOLT, CYLINDER HEAD HOSE UNION | 2 шт. | — | |
|
| 9 | 09168-10007 | GASKET | 4 шт. | — | |
|
| 10 | 09360-14012 | BOLT, OIL PIPE UNION | 1 шт. | — | |
|
| 11 | 09280-12012 | O RING, OIL PIPE | 1 шт. | — | |
|
| 12 | 09106-06073 | BOLT, OIL PIPE (6X16) | 2 шт. | — | |
|
| 13 | 09168-14015 | GASKET, OIL PIPE (14X20X1.5) | 2 шт. | — | |
|
| 14 | 11283-24F00 | CUSHION, CRANKCASE OIL PIPE | 1 шт. | — | |
|
