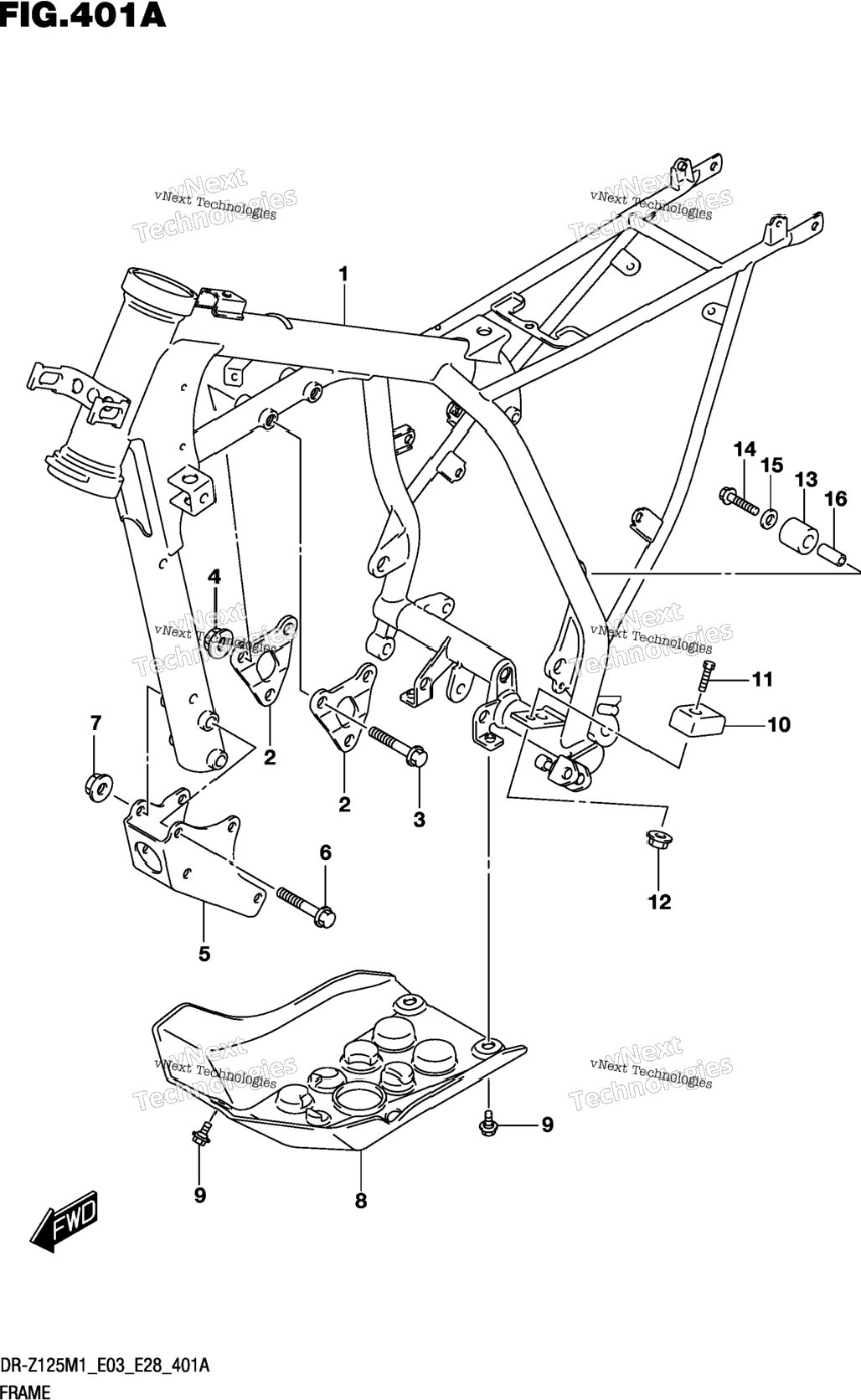

| 1 | 41100-08G11-YPT | FRAME (GLAY) | 1 шт. | — | |
|
| 2 | 41991-08G00 | PLATE, ENG MTG UPPER UPPER | 2 шт. | — | |
|
| 3 | 09103-08332 | BOLT (8X53) | 2 шт. | — | |
|
| 5 | 41992-08G00-YPT | PLATE, ENG MTG LWR (GLAY) | 0 шт. | — | |
|
| 6 | 09103-08354 | BOLT (8X65) | 2 шт. | — | |
|
| 7 | 08319-3108A | NUT | 2 шт. | — | |
|
| 7 | 08319-3108A | NUT | 2 шт. | — | |
|
| 8 | 42511-08G00 | PROTECTOR, ENGINE | 1 шт. | — | |
|
| 9 | 09111-06107 | BOLT (6X12) | 3 шт. | — | |
|
| 10 | 43912-42A00 | GUIDE, CH LENGTH CONTROL LOWE | 1 шт. | — | |
|
| 11 | 09128-06088 | BOLT (6X16) | 0 шт. | — | |
|
| 12 | 08319-3106A | NUT | 1 шт. | — | |
|
| 13 | 43911-13E10 | ROLLER, CHAIN CONTROL UPR | 1 шт. | — | |
|
| 14 | 09103-08178 | BOLT (8X38) | 1 шт. | — | |
|
| 15 | 08211-08201 | WASHER | 1 шт. | — | |
|
| 16 | 09180-08215 | SPACER (8.6X12.2X26.5) | 1 шт. | — | |
|
