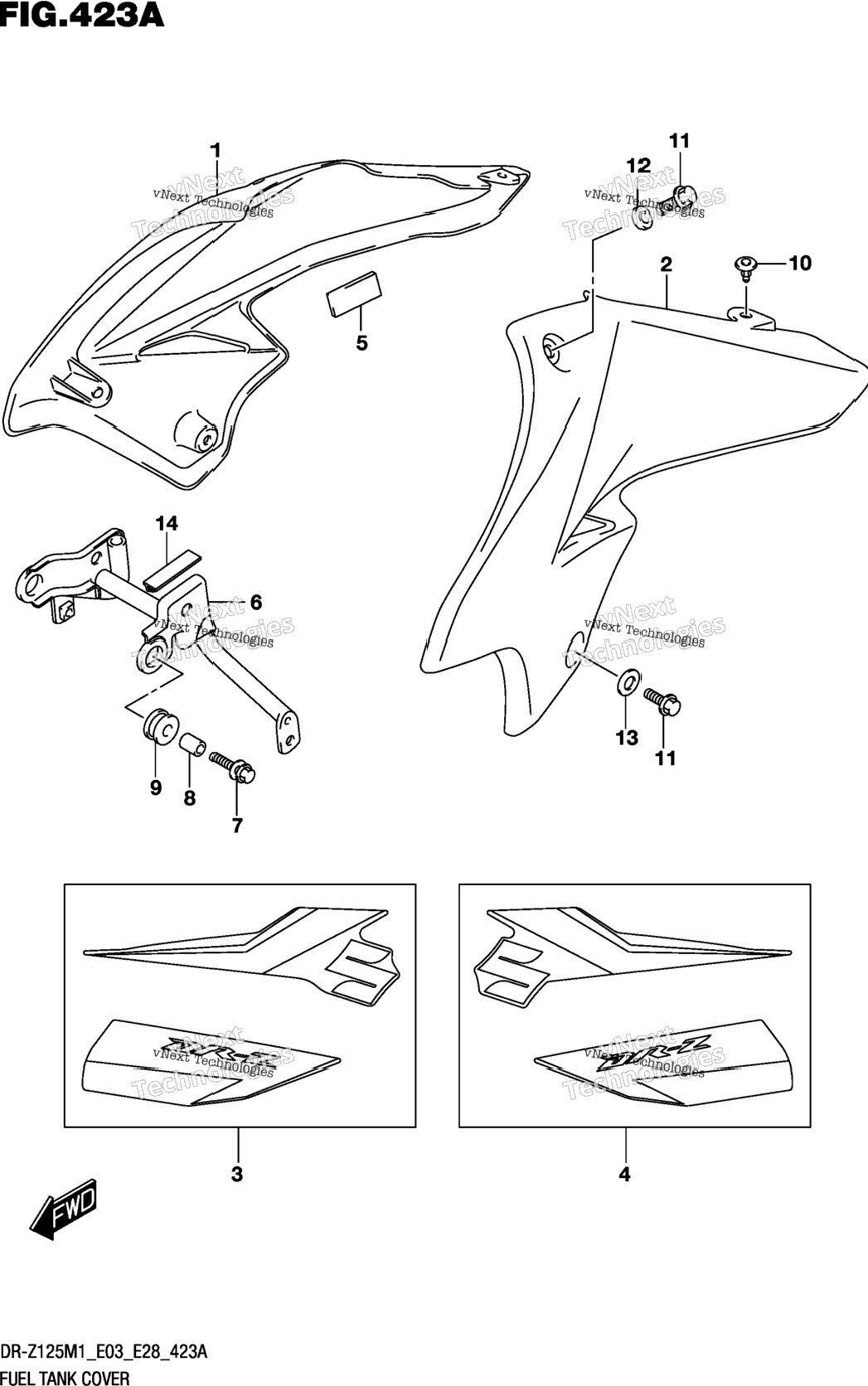

| 1 | 44271-08GA0-YU1 | COVER, FUEL TANK RH (YELLOW) | 1 шт. | — | |
|
| 2 | 44281-08GA0-YU1 | COVER, FUEL TANK LH (YELLOW) | 1 шт. | — | |
|
| 3 | 68110-08GB0-BZY | TAPE SET,FUEL TANK COVER RH(B ACK/BLUE/WHITE/ORANGE/YELLOW) | 1 шт. | — | |
|
| 4 | 68120-08GB0-BZY | TAPE SET,FUEL TANK COVER LH(B ACK/BLUE/WHITE/ORANGE/YELLOW) | 1 шт. | — | |
|
| 5 | 44294-14H00 | .CUSHION (20X40X3) | 5 шт. | — | |
|
| 6 | 44160-08GA0 | BRACKET, FUEL TANK FRONT | 0 шт. | — | |
|
| 7 | 09116-06186 | BOLT (6X25) | 2 шт. | — | |
|
| 8 | 09180-06268 | SPACER (6.5X9X13.5) | 2 шт. | — | |
|
| 9 | 44512-04F01 | CUSHION,FUEL TANK SIDE | 2 шт. | — | |
|
| 10 | 09409-08308 | CLIP (7.6X25.7) | 4 шт. | — | |
|
| 11 | 01547-0616A | BOLT | 4 шт. | — | |
|
| 12 | 09169-06081 | WASHER | 2 шт. | — | |
|
| 13 | 09169-06053 | WASHER | 2 шт. | — | |
|
| 14 | 13623-48B00 | MOLDING (L:48) | 1 шт. | — | |
|
