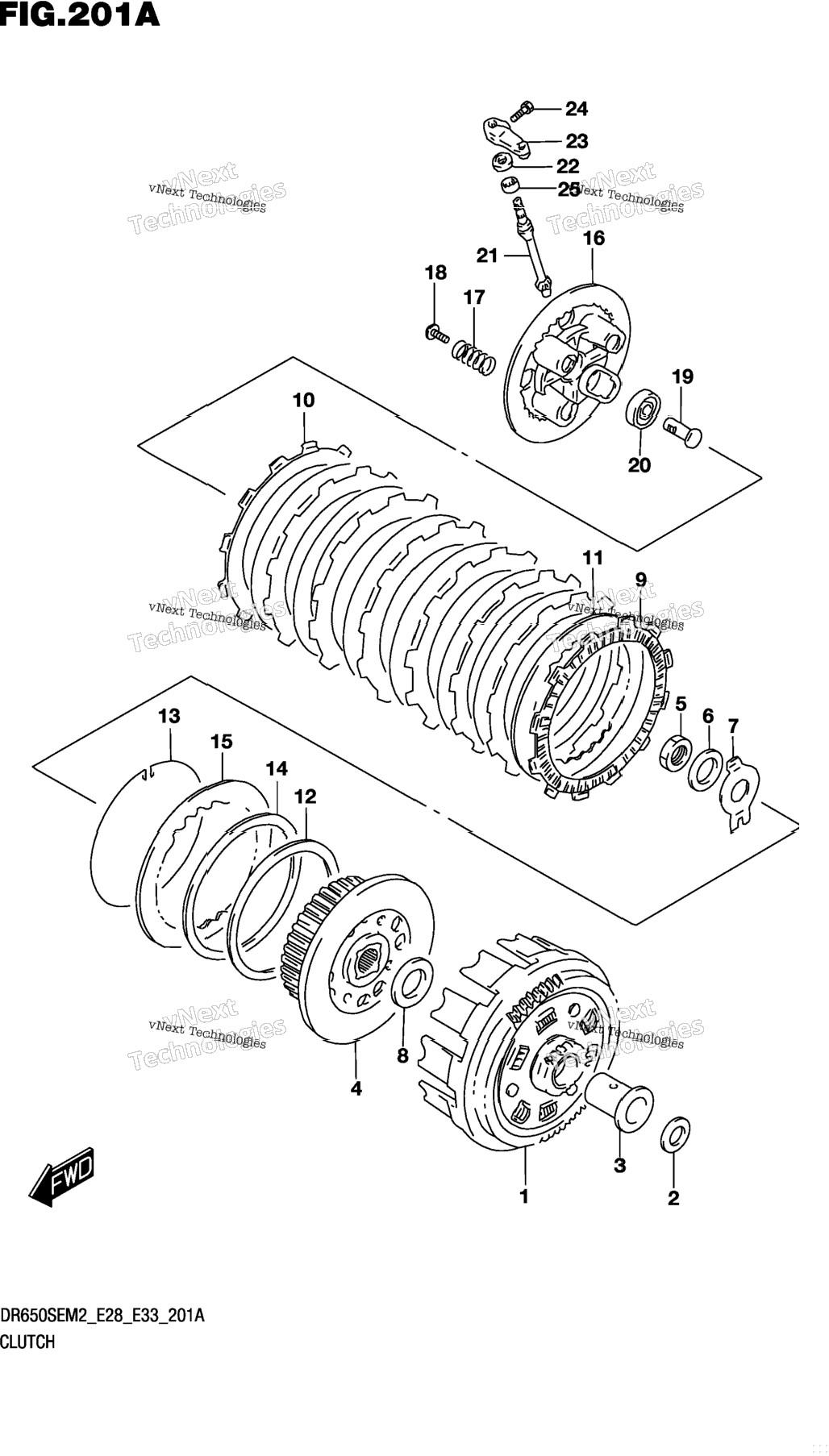

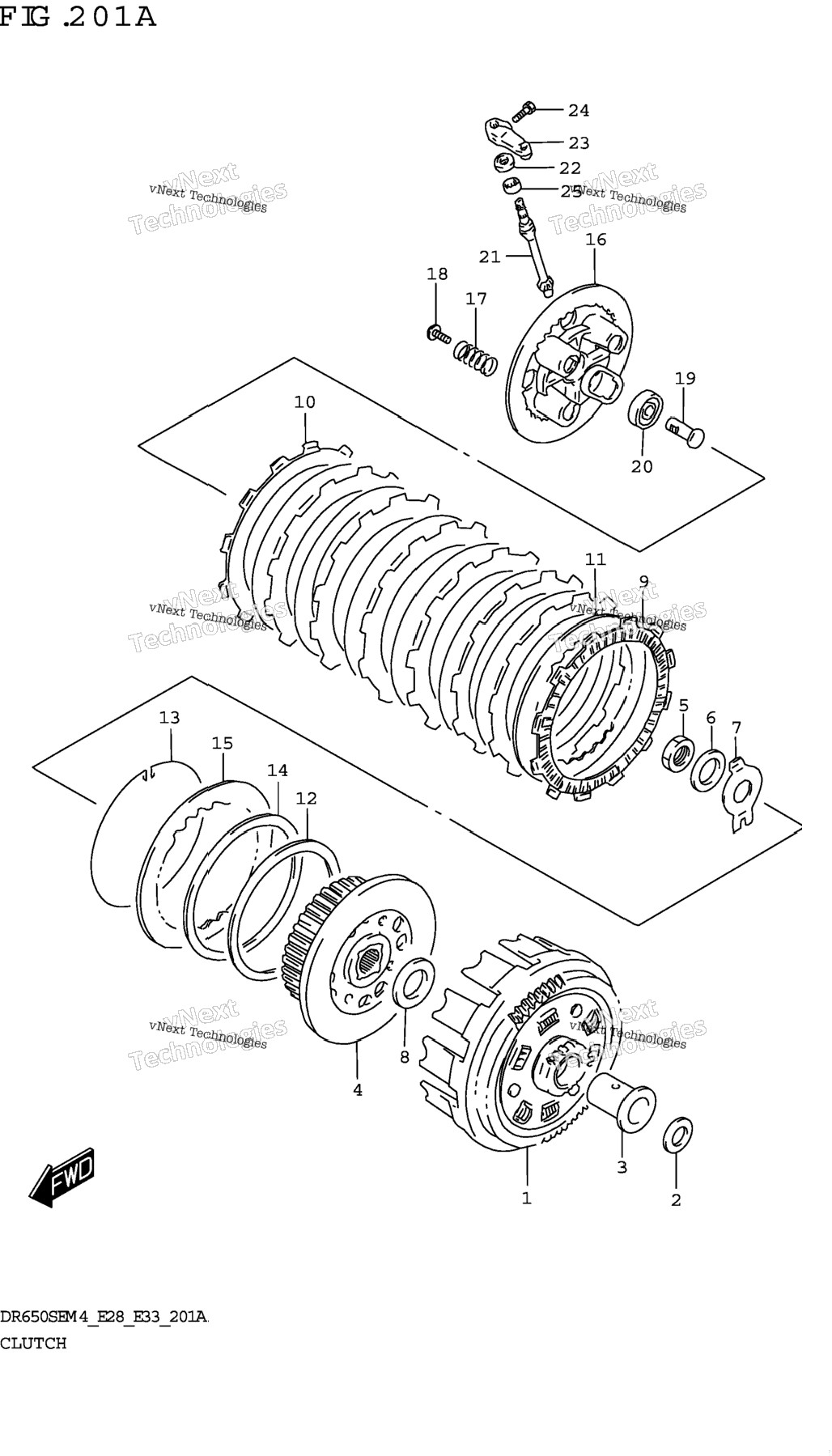

| 1 | 21200-44B21 | GEAR ASSY,PRIMARY DRIVEN (NT: 1/20) | 1 шт. | — | |
|
| 2 | 09160-22032 | WASHER (22X32X3) | 1 шт. | — | |
|
| 3 | 21251-32E00 | SPACER,PRIMARY DRIVEN GEAR | 1 шт. | — | |
|
| 4 | 21410-44B00 | HUB,CLUTCH SLEEVE | 1 шт. | — | |
|
| 5 | 09140-20001 | NUT | 1 шт. | — | |
|
| 6 | 09164-20002 | WASHER | 1 шт. | — | |
|
| 7 | 09169-20005 | WASHER (20.2X44X1(13)) | 1 шт. | — | |
|
| 8 | 09160-22068 | WASHER (22X44X2) | 1 шт. | — | |
|
| 9 | 21441-31D00 | PLATE,CLUTCH DRIVE (T:3) | 7 шт. | — | |
|
| 10 | 21441-44B01 | PLATE,CLUTCH DRIVE (T:3) | 1 шт. | — | |
|
| 11 | 21451-44B00 | PLATE,CLUTCH DRIVEN,NO.1 (T:1 6) | 7 шт. | — | |
|
| 12 | 21471-49100 | SEAT, WAVE WASHER | 1 шт. | — | |
|
| 13 | 21481-45100 | RING, WAVE WASHER STOPPER | 1 шт. | — | |
|
| 14 | 09164-00003 | WASHER (117X132.5X1.20) | 1 шт. | — | |
|
| 15 | 21451-49200 | PLATE, DRIVEN NO.2 (T:2) | 1 шт. | — | |
|
| 16 | 21462-31D00 | DISK,CLUTCH PRESSURE | 1 шт. | — | |
|
| 17 | 09440-20016 | SPRING | 4 шт. | — | |
|
| 18 | 09116-06168 | BOLT (6X16) | 4 шт. | — | |
|
| 19 | 23165-31D00 | RACK,CLUTCH RELEASE | 1 шт. | — | |
|
| 20 | 08150-62007 | BEARING | 1 шт. | — | |
|
| 21 | 23261-32E00 | PINION,CLUTCH RELEASE | 1 шт. | — | |
|
| 22 | 09285-10004 | OIL SEAL (10X17X5) | 1 шт. | — | |
|
| 23 | 23271-31D00 | ARM,CLUTCH RELEASE | 1 шт. | — | |
|
| 24 | 01500-0616A | BOLT | 1 шт. | — | |
|
| 25 | 09263-12024 | BEARING (12X16X10) | 1 шт. | — | |
|
