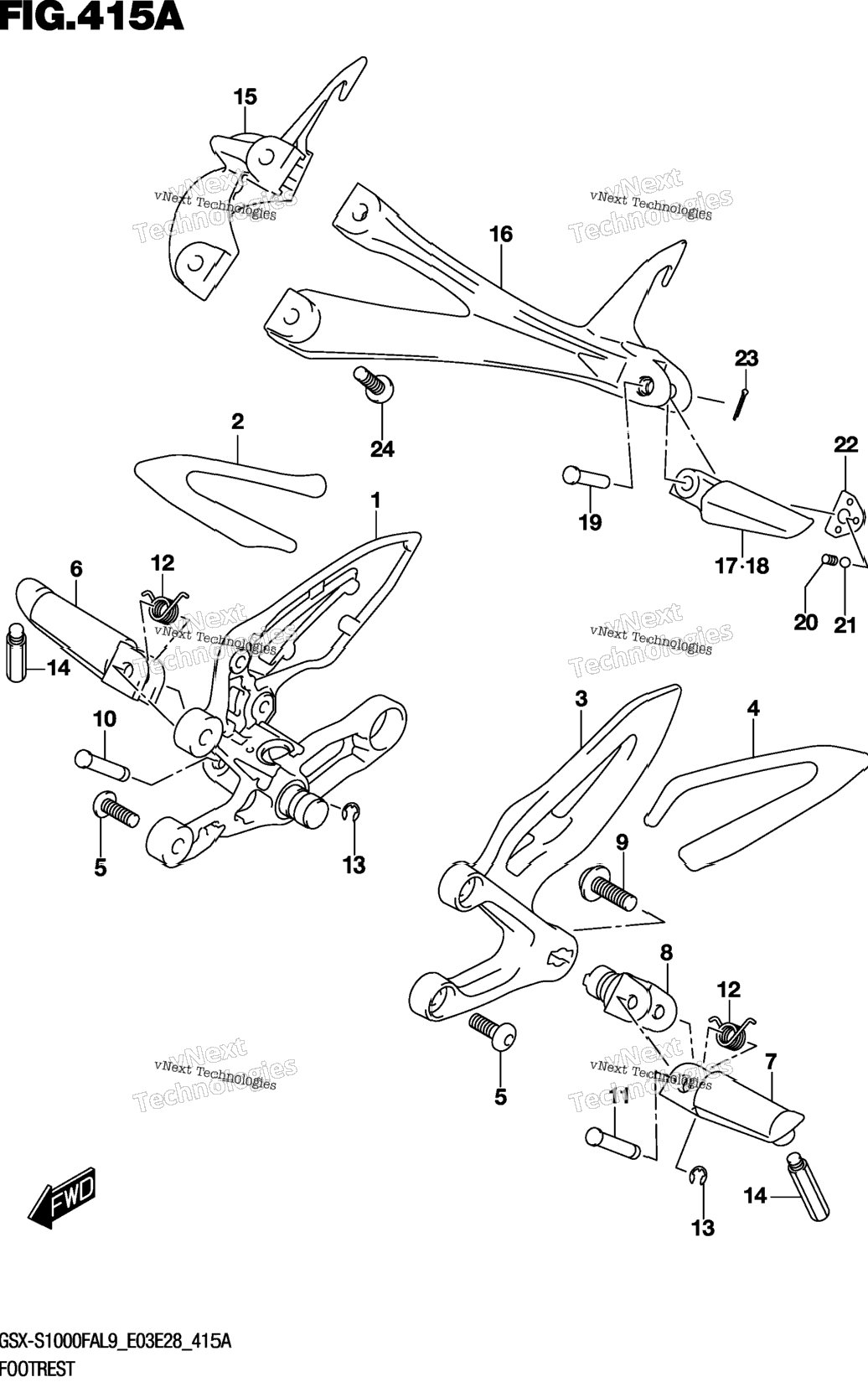

| 1 | 43510-04K10 | BRACKET,FR FOOTREST RH | 1 шт. | — | |
|
| 2 | 43571-04K10 | TAPE, FR FOOTREST RH | 1 шт. | — | |
|
| 3 | 43521-04K10 | BRACKET,FR FOOTREST,L | 1 шт. | — | |
|
| 4 | 43572-04K10 | TAPE, FR FOOTREST LH | 1 шт. | — | |
|
| 5 | 09106-08181 | BOLT (8X23) | 4 шт. | — | |
|
| 6 | 43516-35F20 | BAR,FRONT FOOTREST,R | 1 шт. | — | |
|
| 7 | 43526-35F20 | BAR,FRONT FOOTREST,L | 1 шт. | — | |
|
| 8 | 43530-16G10 | HOLDER, FOOTREST LH | 1 шт. | — | |
|
| 9 | 09106-10064 | BOLT (10X28) LH | 1 шт. | — | |
|
| 10 | 09208-08019 | PIN RH | 1 шт. | — | |
|
| 11 | 09208-08018 | PIN LH | 1 шт. | — | |
|
| 12 | 43581-47H00 | SPRING,FRONT FOOTREST | 2 шт. | — | |
|
| 13 | 08332-1106A | E-RING | 2 шт. | — | |
|
| 14 | 43576-48B50 | .BOLT,BANK SENSOR | 2 шт. | — | |
|
| 15 | 43811-04K00 | BRACKET,PILLION FOOTREST RH | 1 шт. | — | |
|
| 16 | 43821-04K00 | BRACKET,PILLION FOOTREST LH | 1 шт. | — | |
|
| 17 | 43611-37H30 | .BAR,PILLION FOOTREST,R | 1 шт. | — | |
|
| 18 | 43621-37H30 | .BAR,PILLION FOOTREST,L | 1 шт. | — | |
|
| 19 | 09200-08002 | PIN | 2 шт. | — | |
|
| 20 | 09440-05003 | SPRING | 2 шт. | — | |
|
| 21 | 06111-07004 | BALL | 2 шт. | — | |
|
| 22 | 43816-01H20 | PLATE,PILLION FOOTREST | 2 шт. | — | |
|
| 23 | 04111-2015A | PIN | 2 шт. | — | |
|
| 24 | 09106-08151 | BOLT (8X25) | 4 шт. | — | |
|
