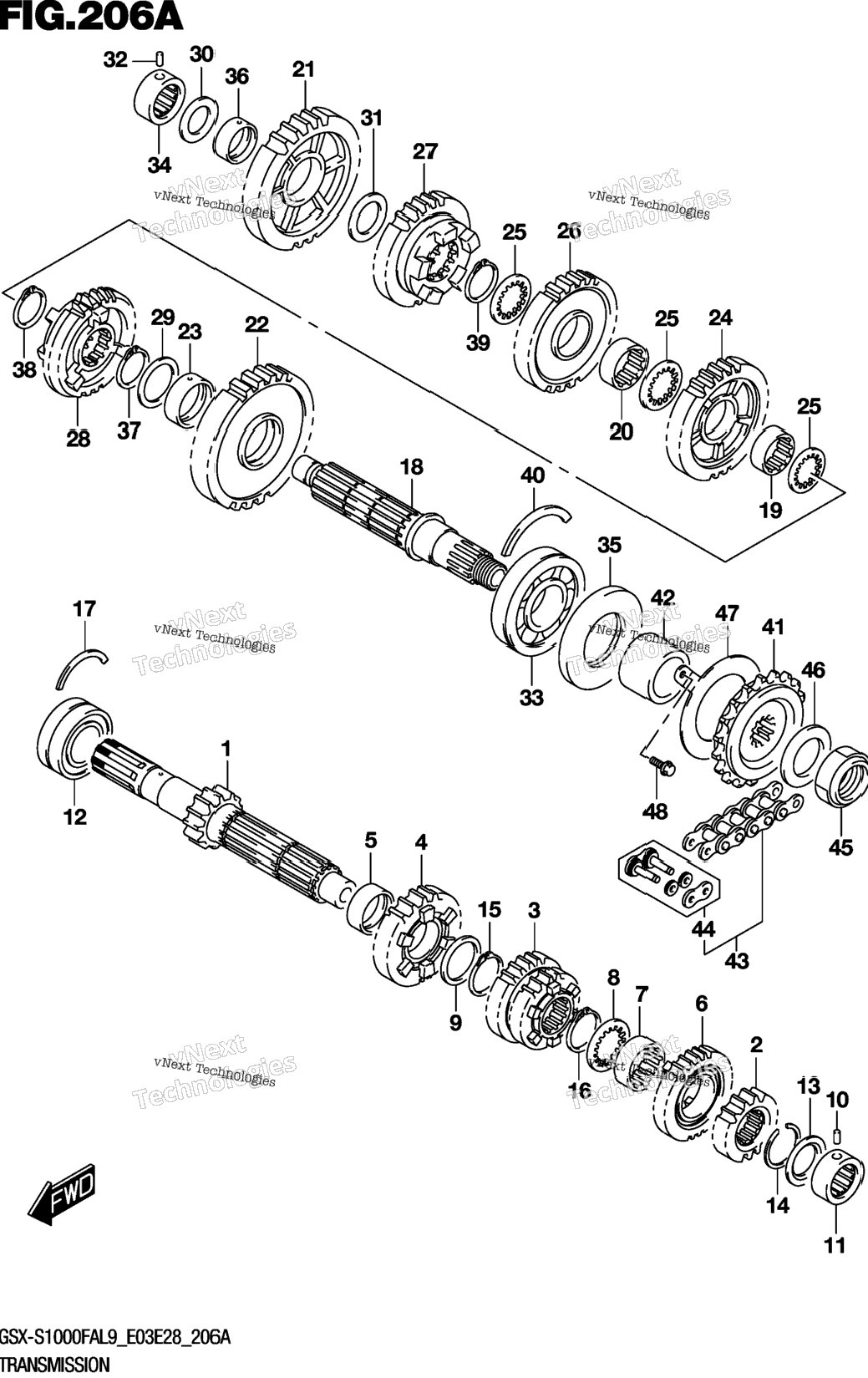

| 1 | 24120-40F40 | SHAFT, CNTR (NT:16) | 0 шт. | — | |
|
| 2 | 24221-40F30 | GEAR,2ND DRIVE (NT:19) | 1 шт. | — | |
|
| 3 | 24231-40F50 | GEAR, 3RD & 4TH DRIVE | 1 шт. | — | |
|
| 4 | 24231-40F50 | GEAR, 3RD & 4TH DRIVE | 0 шт. | — | |
|
| 5 | 24251-40F50 | GEAR, 5TH DRIVE (NT:25) | 0 шт. | — | |
|
| 6 | 24252-35F00 | BUSH,5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24261-40F40 | GEAR, 6TH DRIVE (NT:26) | 0 шт. | — | |
|
| 8 | 24262-35F10 | BUSH,6TH DRIVE GEAR | 1 шт. | — | |
|
| 9 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 10 | 09181-27014 | SHIM (27X36X2.5) | 1 шт. | — | |
|
| 11 | 09261-06003 | PIN (6X10) | 1 шт. | — | |
|
| 12 | 09263-20087 | BEARING (20X34X13.5) | 1 шт. | — | |
|
| 13 | 09267-25013 | BEARING (25X52X20.6) RH | 1 шт. | — | |
|
| 14 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 17 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 18 | 09390-58001 | C-RING | 1 шт. | — | |
|
| 19 | 24131-40F20 | SHAFT, DRIVE | 1 шт. | — | |
|
| 20 | 24332-46H00 | BUSH | 1 шт. | — | |
|
| 21 | 24332-46H00 | BUSH | 1 шт. | — | |
|
| 22 | 24311-40F30 | GEAR, 1ST DRIVEN (NT:41) | 1 шт. | — | |
|
| 23 | 24321-40F50 | GEAR, 2ND DRIVEN (NT:39) | 1 шт. | — | |
|
| 24 | 24322-02F01 | BUSH,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24331-40F30 | GEAR,3RD DRIVEN (NT:36) | 1 шт. | — | |
|
| 26 | 24333-02F00 | WASHER,3RD & 4TH DRIVEN | 3 шт. | — | |
|
| 27 | 24341-40F20 | GEAR,4TH DRIVEN (NT:36) | 1 шт. | — | |
|
| 28 | 24351-40F40 | GEAR, 5TH DRIVEN (NT:34) | 1 шт. | — | |
|
| 29 | 24361-40F30 | GEAR, 6TH DRIVEN (NT:33) | 1 шт. | — | |
|
| 30 | 09160-27008 | WASHER (27X36X1.0) | 1 шт. | — | |
|
| 31 | 09181-20251 | SHIM (20X34X1) | 1 шт. | — | |
|
| 32 | 09181-22223 | SHIM (22X34X1) | 1 шт. | — | |
|
| 33 | 09261-06003 | PIN (6X10) | 1 шт. | — | |
|
| 34 | 09262-28025 | BEARING (28X70X18) LH | 1 шт. | — | |
|
| 35 | 09263-20087 | BEARING (20X34X13.5) RH | 1 шт. | — | |
|
| 36 | 09283-36008 | OIL SEAL (34.8X70X6) | 1 шт. | — | |
|
| 37 | 09263-22068 | BEARING (22X26X11) | 1 шт. | — | |
|
| 38 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 39 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 40 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 41 | 09390-70001 | C-RING (67.6X75X2) | 1 шт. | — | |
|
| 42 | 27511-20A20 | SPROCKET,ENGINE (NT:17) | 1 шт. | — | |
|
| 43 | 27531-04K00 | SPACER, ENGINE SPROCKET | 1 шт. | — | |
|
| 44 | 27600-33E50-116 | CHAIN ASSY, DRIVE (RK525GSH) | 1 шт. | — | |
|
| 45 | 27620-33E50 | .JOINT SET, DRIVE CHAIN (RK) | 1 шт. | — | |
|
| 46 | 09159-20004 | NUT | 1 шт. | — | |
|
| 47 | 09160-25066 | WASHER (25X38X2.5) | 1 шт. | — | |
|
| 48 | 24751-04K00 | RETAINER, DRIVE SHAFT OIL SEA | 1 шт. | — | |
|
| 49 | 09103-06236 | BOLT (6X12) | 2 шт. | — | |
|
