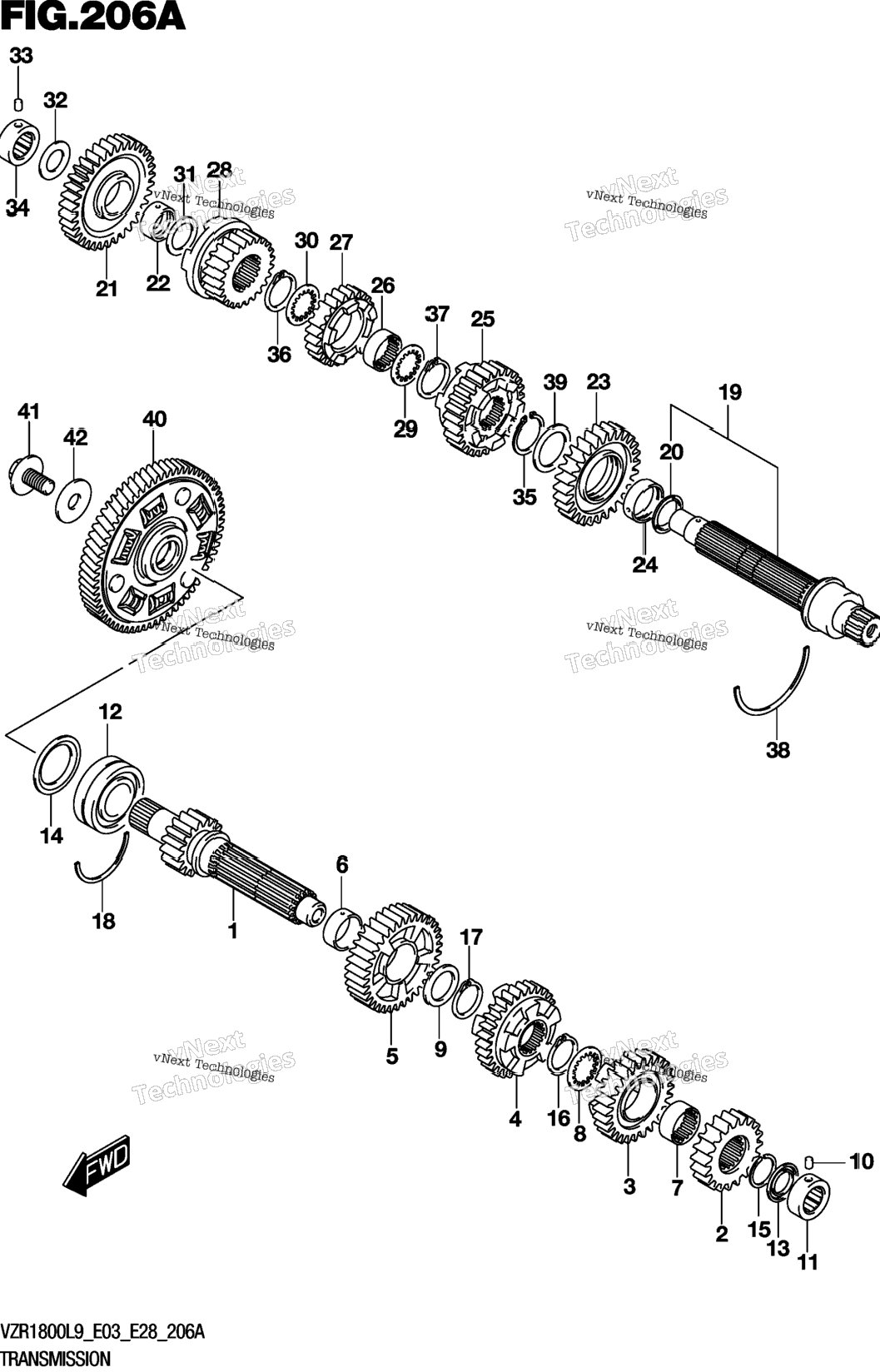

| 1 | 24121-48G10 | SHAFT,CNTR (NT:16) | 1 шт. | — | |
|
| 2 | 24221-48G00 | GEAR,2ND DRIVE (NT:20) | 1 шт. | — | |
|
| 3 | 24231-48G10 | GEAR,3RD DRIVE (NT:28) | 1 шт. | — | |
|
| 4 | 24241-48G10 | GEAR,4TH DRIVE (NT:29) | 1 шт. | — | |
|
| 5 | 24251-48G00 | GEAR,5TH DRIVE (NT:35) | 1 шт. | — | |
|
| 6 | 24252-24F10 | BUSH,5TH DRIVE GEAR | 1 шт. | — | |
|
| 7 | 24262-24F10 | BUSH,6TH DRIVE GEAR | 1 шт. | — | |
|
| 8 | 09167-27003 | LOCK WASHER (27X36X2.5) | 1 шт. | — | |
|
| 9 | 09181-27014 | SHIM (27X36X2.5) | 1 шт. | — | |
|
| 10 | 09261-06003 | PIN (6X10) LH | 1 шт. | — | |
|
| 11 | 09263-20087 | BEARING (20X34X13.5) LH | 1 шт. | — | |
|
| 12 | 09267-25012 | BEARING (25X62X25.4) RH | 1 шт. | — | |
|
| 13 | 09285-20006 | SEAL,OIL (20X31.2X2.7) | 1 шт. | — | |
|
| 14 | 09285-34011 | OIL SEAL (34X55.5X4) RH | 1 шт. | — | |
|
| 15 | 09380-27004 | CIRCLIP | 1 шт. | — | |
|
| 16 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 17 | 09380-27006 | CIRCLIP | 1 шт. | — | |
|
| 18 | 09390-62012 | C-RING RH | 1 шт. | — | |
|
| 19 | 24130-48G01 | SHAFT,DRIVE (NT:18) | 1 шт. | — | |
|
| 20 | 24136-48G01 | .RING,DRIVE SHAFT FRICTION | 1 шт. | — | |
|
| 21 | 24311-48G00 | GEAR,1ST DRIVEN (NT:35) | 1 шт. | — | |
|
| 22 | 24312-24F10 | BUSH,1ST DRIVEN GEAR | 1 шт. | — | |
|
| 23 | 24321-48G10 | GEAR,2ND DRIVEN (NT:28) | 1 шт. | — | |
|
| 24 | 24322-48G00 | BUSH,2ND DRIVEN GEAR | 1 шт. | — | |
|
| 25 | 24331-48G10 | GEAR,3RD DRIVEN (NT:27) | 1 шт. | — | |
|
| 26 | 24332-24F10 | BUSH,DRIVEN GEAR | 1 шт. | — | |
|
| 27 | 24341-48G00 | GEAR,4TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 28 | 24351-48G00 | GEAR,5TH DRIVEN (NT:24) | 1 шт. | — | |
|
| 29 | 09167-30008 | WASHER,LOCK (30X38X2) | 1 шт. | — | |
|
| 30 | 09167-30008 | WASHER,LOCK (30X38X2) | 1 шт. | — | |
|
| 31 | 09181-20251 | SHIM (20X34X1) | 1 шт. | — | |
|
| 32 | 09181-24005 | SHIM (24X34X1) | 1 шт. | — | |
|
| 33 | 09261-06003 | PIN (6X10) | 1 шт. | — | |
|
| 34 | 09263-20087 | BEARING (20X34X13.5) | 1 шт. | — | |
|
| 35 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 36 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 37 | 09380-30009 | CIRCLIP | 1 шт. | — | |
|
| 38 | 09390-80004 | C RING | 2 шт. | — | |
|
| 39 | 08211-30403 | WASHER | 1 шт. | — | |
|
| 40 | 21200-22830 | GEAR ASSY,PRIMARY DRIVEN (NT: | 1 шт. | — | |
|
| 41 | 21200-22830 | GEAR ASSY,PRIMARY DRIVEN (NT: | 0 шт. | — | |
|
| 42 | 09103-12084 | BOLT (12X24) | 1 шт. | — | |
|
| 43 | 09160-12045 | WASHER (12X35X2.0) | 1 шт. | — | |
|
